8|Service and maintenance
8.7.6 Selective soldering module: Visual inspection
1 4 4 32
2 3

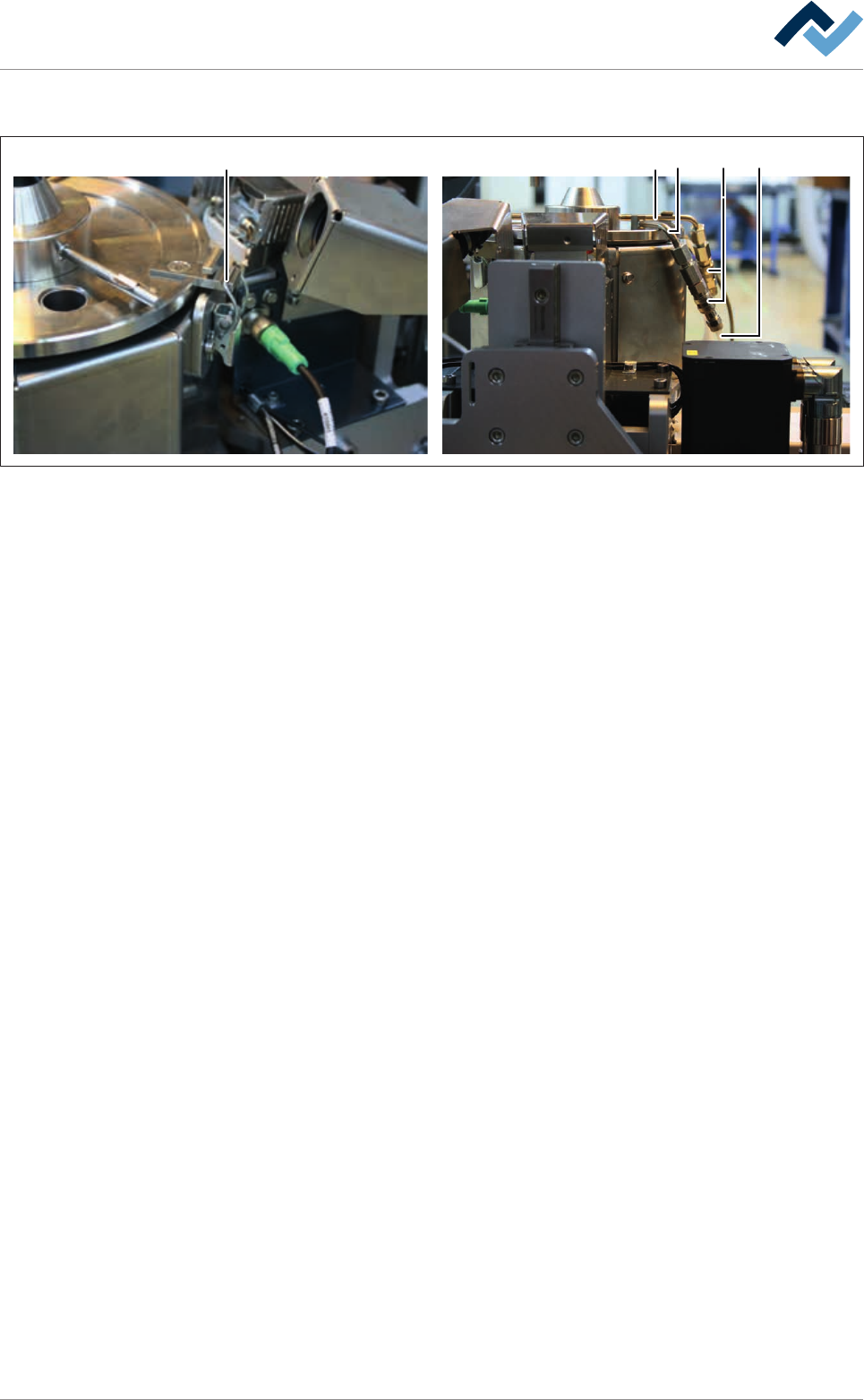

Fig.115: Selective soldering module
ü Visual inspection of all fasteners, connections and lines:
a) Visual inspection of all quick release fasteners (1) on the soldering module.
Check the fasteners for free movement and correct engagement. Clean dirty
fasteners. Replace damaged fasteners.
b) Perform a visual inspection of all the quick connectors (2), hoses (3) and pipes
(4) on the soldering module. Tightness and firm fit must be guaranteed. Have
heavily discoloured, porous or hardened hoses replaced by qualified staff.
ð The process has now been completed.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 347/695
8|Service and maintenance
8.7.7 Visual inspection of the axis system (electrics)
DANGER
Severe or fatal injury from hot machine! Hot pot containing molten metal!
ü For any work being carried out, take the following safety precautions:
a) Touching the pot during operation is forbidden!
b) Allow the pot to cool down to room temperature before carrying out service and
cleaning work! On this regard, observe the solder temperature at the machine
terminal!
c) During the solder heating and cooling, molten metal can splash out of the pot!
The machine protective plates must therefore remain closed during heating and
cooling!
d) Open protective plates only when the solder has solidified completely.
e) Service and cleaning work on hot pots must always be carried out by trained and
qualified personnel!
2 2 333
11 1 1 1
3 2

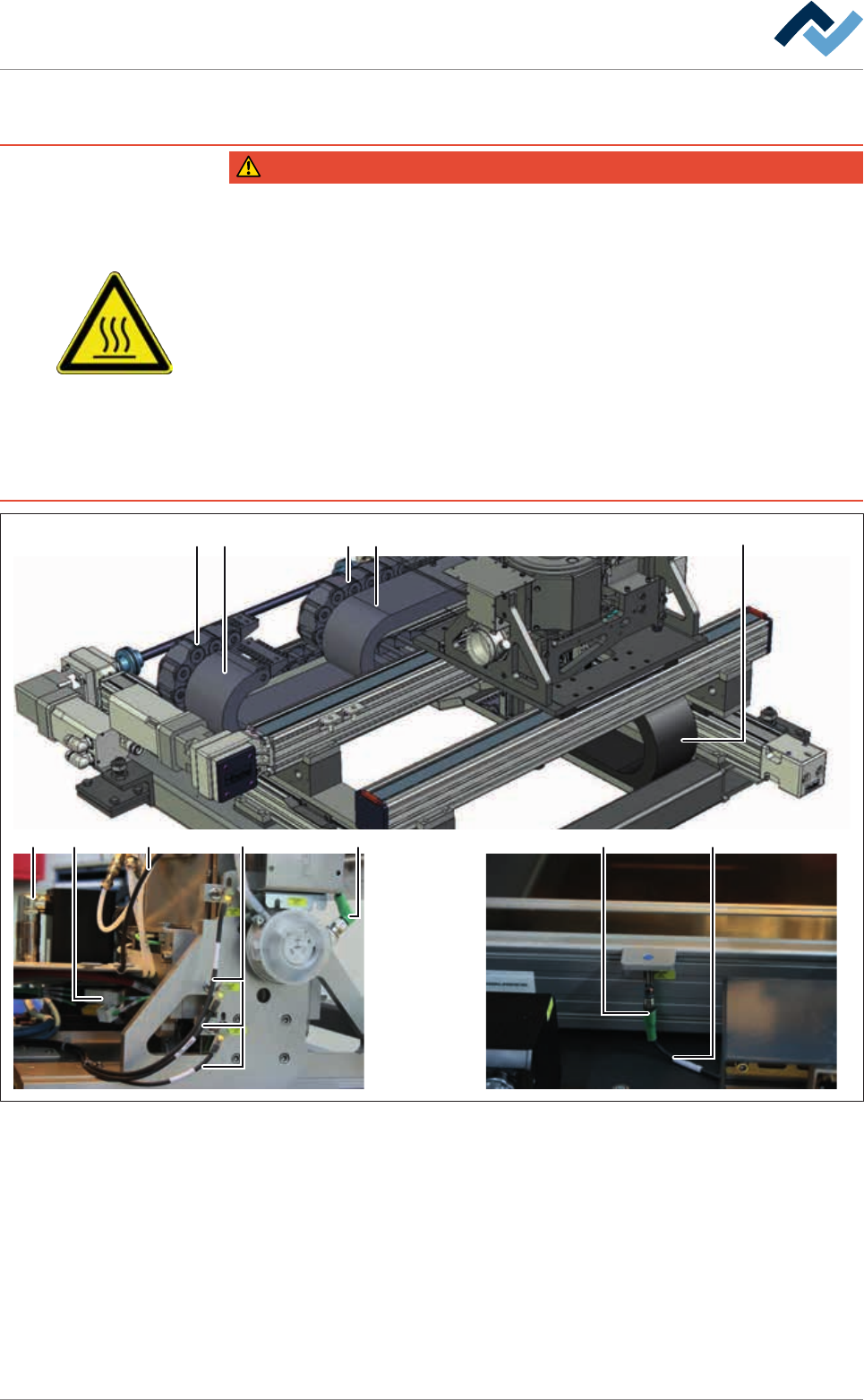

Fig.116: Axis system, tracked cable ducts and connections
ü Visual inspection of all tracked cable ducts (1), connections (2) and plug-in con-
nectors (3):
a) let the machine cool down.
b) Open hoods and doors in the area of the axis systems.
c) Remove and clean any existing blankets.
d) To clean dirty components, use a cleaning agent recommended by the flux
manufacturer for the fluxer area.
e) Check all plug-in connectors for tightness.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 348/695
8|Service and maintenance
f) Have damaged components replaced by a qualified electrician.
g) The axis systems can be moved via the control software for testing purposes.
ð Smooth and soft running must be guaranteed.
ð If unusual running noises are detected:
h) Have the axis system checked by qualified staff.
ð The process has now been completed.
NOTE
Supplementary documents
The [190-700013N3] document is necessary for servicing the axis system. Only trained
and qualified ERSA GmbH personnel may carry out the maintenance work described in
that document. The document can be found in the data carrier [product_data_select-
ive]. The document is exclusively available in [german] language.
