9|Spare and wear parts Pos Description Item number A B 6 Tappet head 281723 x 7 Chain pinion 05-Z9 143638 x 8 Chain guide 155902 x 9 Gassing hose 261375 x 10 Key 281726 x Ersa GmbH Operating Instructions_VF335_en|Rev…
9|Spare and wear parts

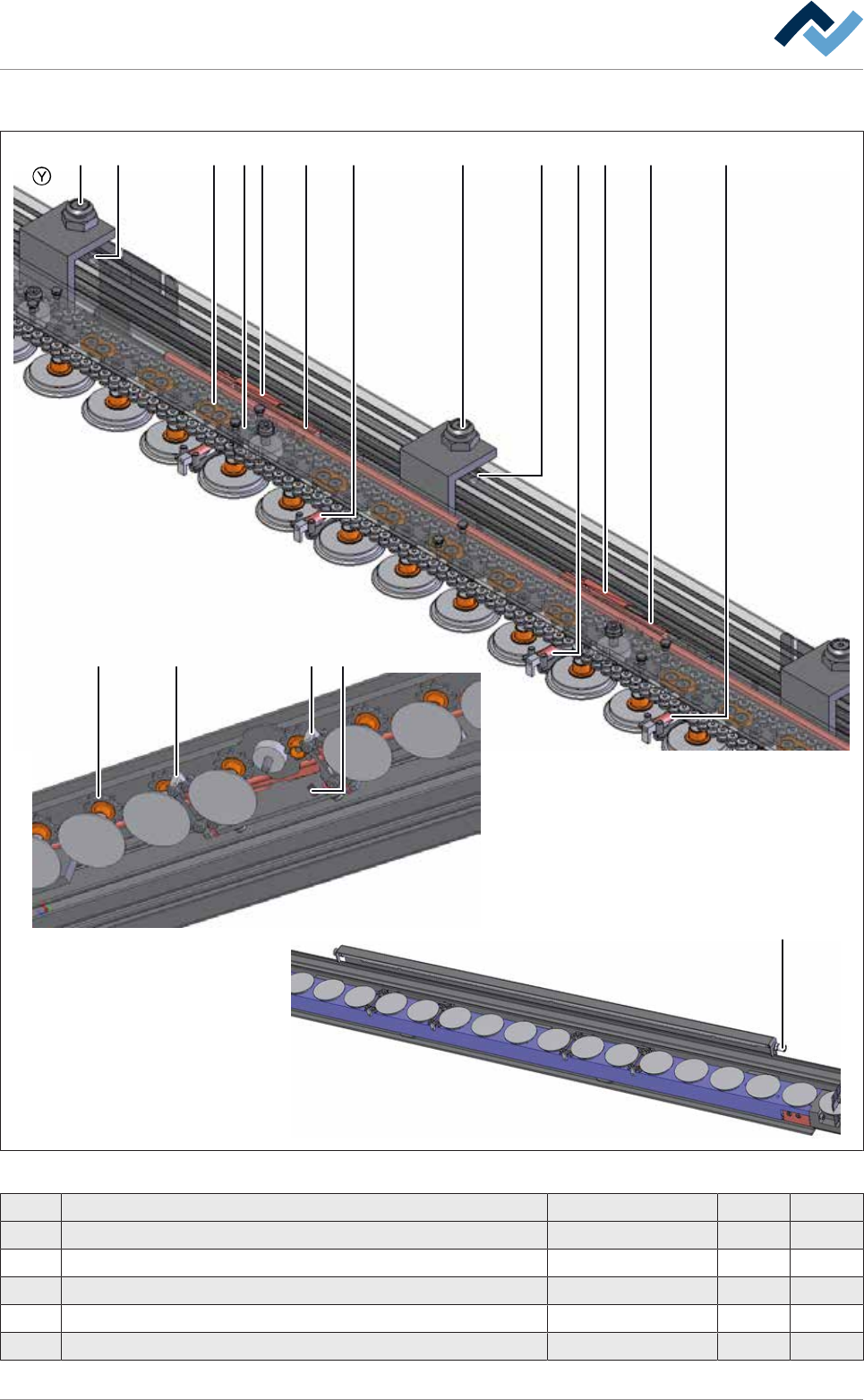

Flexible rail, DIP XL induction, view [Y]
33 11010 178 2 2244
66
9
7 5
Fig.309: EM146-339-20-00Ad
Pos Description Item number A B
1 Key 281506 x
2 Tappet 281572 x
3 Jackscrew M12X1 170791 x
4 Groove nut STM5 6ZIS049 x
5 Spring, stainless steel 6FED078-VD x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 589/695
9|Spare and wear parts
Pos Description Item number A B
6 Tappet head 281723 x
7 Chain pinion 05-Z9 143638 x
8 Chain guide 155902 x
9 Gassing hose 261375 x
10 Key 281726 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 590/695
9|Spare and wear parts
Flexible rail, DIP XL induction, view [W]
3 44 12
Fig.310: EM146-339-20-00Ae
Pos Description Item number A B
1 Pressure spring VD-177 143511 x
2 Sliding piece, redirection 143640 x
3 Chain pinion 05-Z9 143638 x
4 Chain guide, fixed, adjustable 143673 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 591/695
