9|Spare and wear parts
View [W]
8 1011 4 519 3 26 7

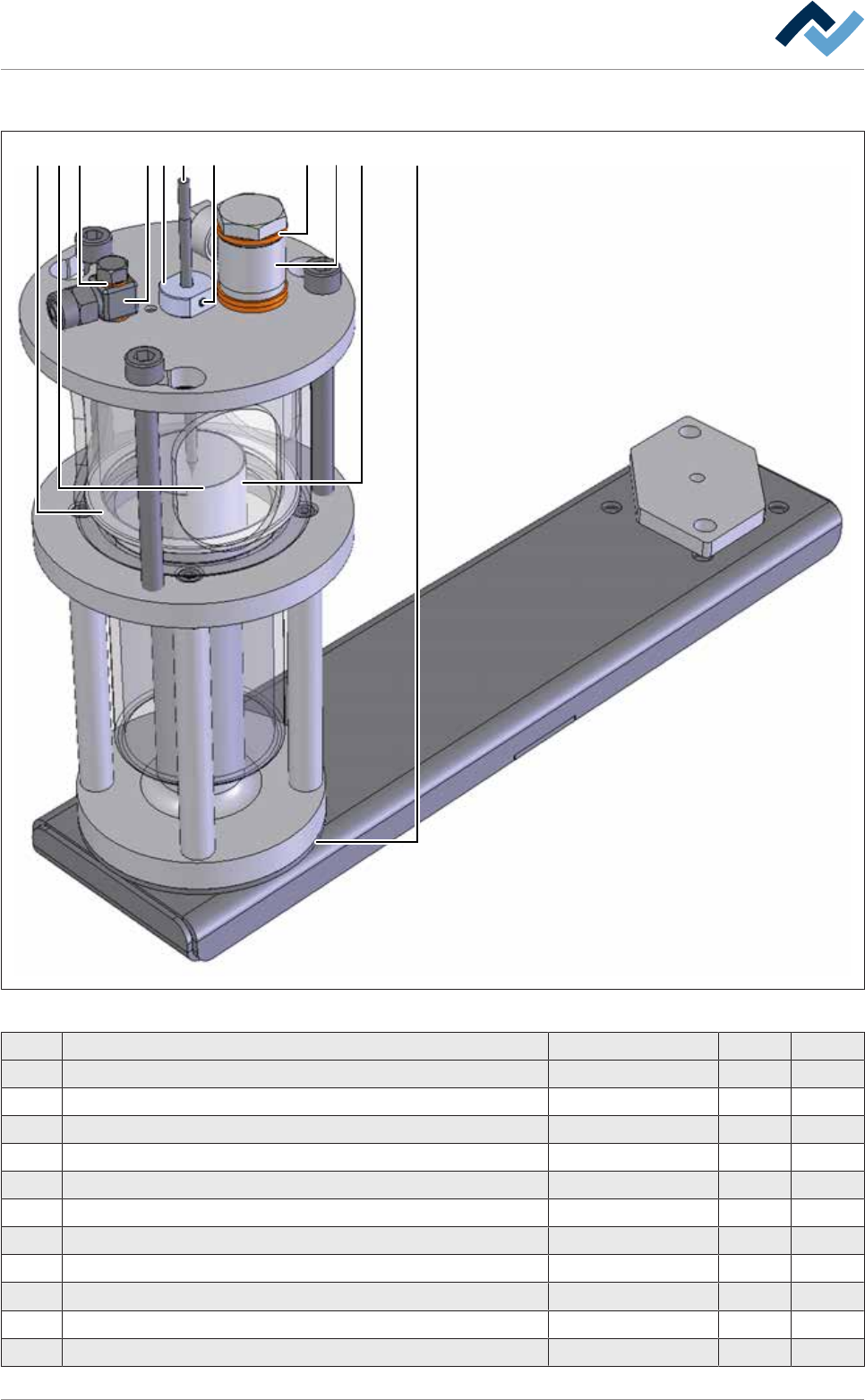

Fig.371: EM131-61-10-20-00C
Pos Description Item number A B
1 Gauge-glass 209190 x
2 Probe 145960 x
3 Isolation 255049 x
4 Reference nozzle 255088 x
5 Graphite sealing 209661 x
6 Sealing ring, copper 153612 x
7 Straight screwing M5, stainless steel 6BO116E x
8 Set screw M3 6M03X003E0913 x
9 Sealing ring 296644 x
10 Angular swivel screw connection 6BO102 x
11 Sealing ring, copper G1/4 153647 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 655/695
9|Spare and wear parts
9.9.2.5 Standard DIP soldering module (multiwave) setup verification
Item Designation Item number A B
1 Rope tool coding for down holder 322332 X
2 Rope tool coding for nozzle plate 322337 X
3 Rope tool coding for protection 322336 X
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 656/695
9|Spare and wear parts
9.9.2.6 Solder feed with turret bar container (option)
5 11 432 6

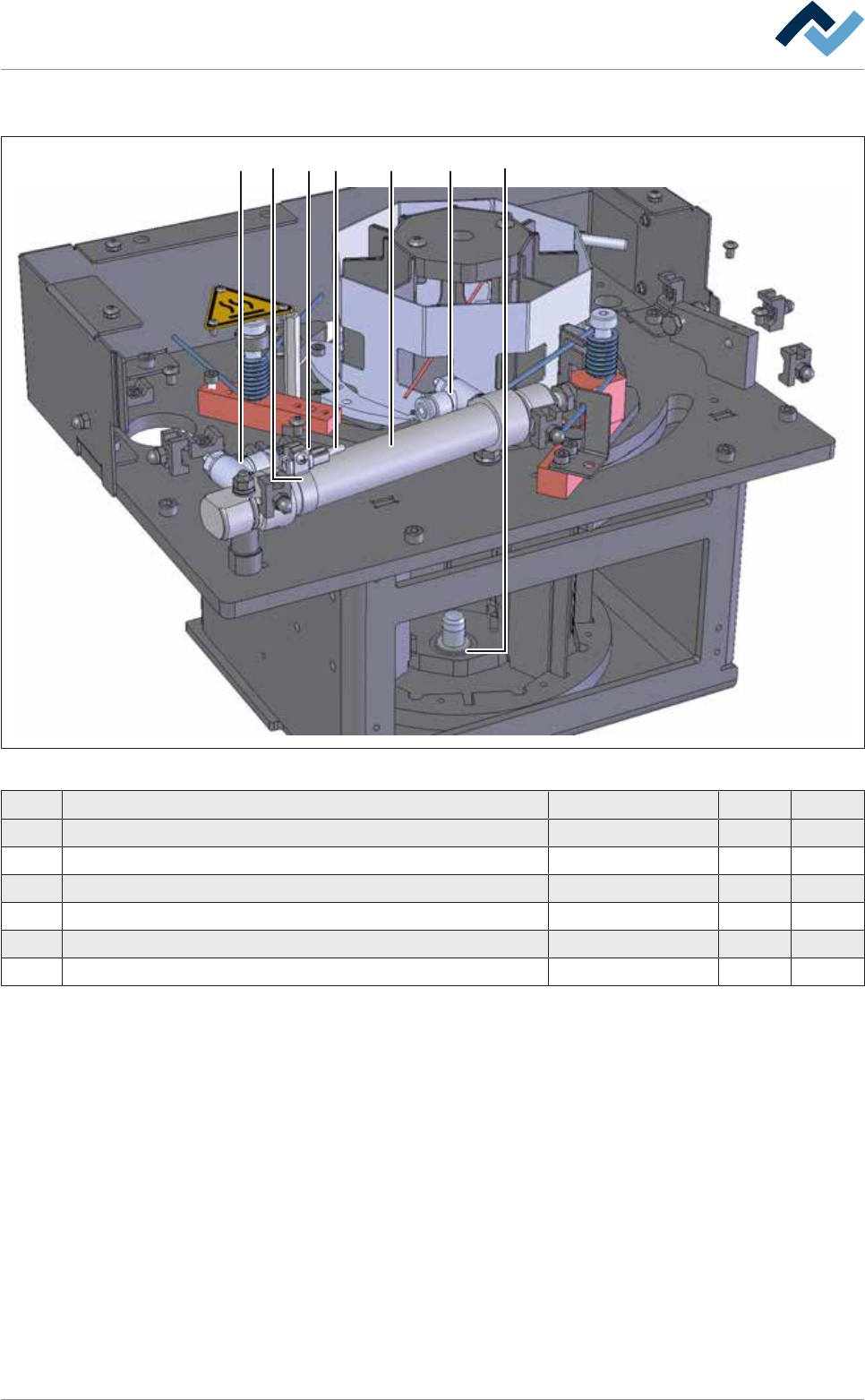

Fig.372: EM140-61-50-004
Pos Description Part No. A B
1 One-way restrictor VFOH-LE-A-G18-Q4 302565 x
2 Sensorclip f. cylinder, Ø 20 208090 x
3 Mounting for sensor 208077 x
4 Insertion aid, fixed 132240 x
5 Round zylinder double-act, heat resist., Ø 20, stroke 80 312167 x
6 Plain bearing XFM-121418-059 312166 x
