9|Spare and wear parts
9.7 Preheaters
9.7.1 Dynamic IR emitters with glass plate 8 x 1.5 kW
1
1
2 3 5
4
Fig.316: EM113-51-00
Pos Designation Item number A B
1 Thermocouple complete 6ETHE-IR9 x
2 IR-heater 1500W 157140 x
3 Reflector sheet 156915 x
4 Glass plate 156937 x
5 Radiator socket 156941 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 597/695
9|Spare and wear parts
9.7.2 Upper heating installation kit --> 04.2010
Overview

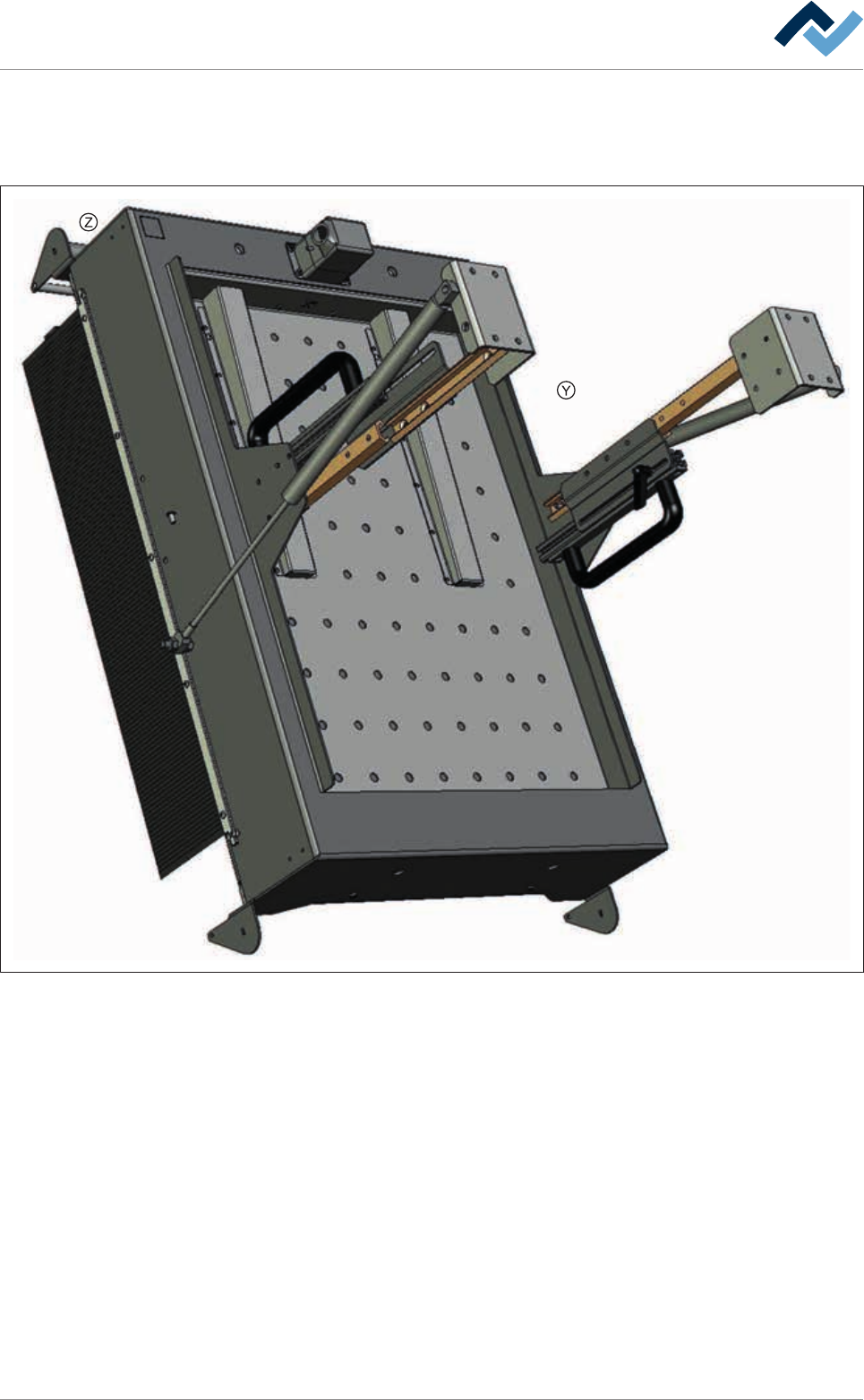

Fig.317: EM113-53-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 598/695
9|Spare and wear parts
Upper heating installation kit, view [Y], [Z]
1
4 6 6
3 5 22
Fig.318: EM113-53-00a
Pos Designation Item number A B
1 Gas spring, stroke = 200 mm 173139 x
2 Telescopic rail HG26-250 127093 x
3 Clamp lever 20° M5 x 8 173141 x
4 Spring-loaded shaft Ø 25 mm / L = 531 mm 177458 x
5 Bow-type handle insulated, GN-564-25-160 6GR-GN564 x
6 Groove nut STM4 6ZIS023 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 599/695
