9|Spare and wear parts 9.7.3 Top heating installation set 08/2010 --> 1 2 1 3 Fig.319: EM113-58-00 Pos Description Item number A B 1 Gas spring (350 N) 199865 x 2 Bow-type handle insulated, GN-564-25-160 6GR-GN564 …

100%1 / 695
9|Spare and wear parts

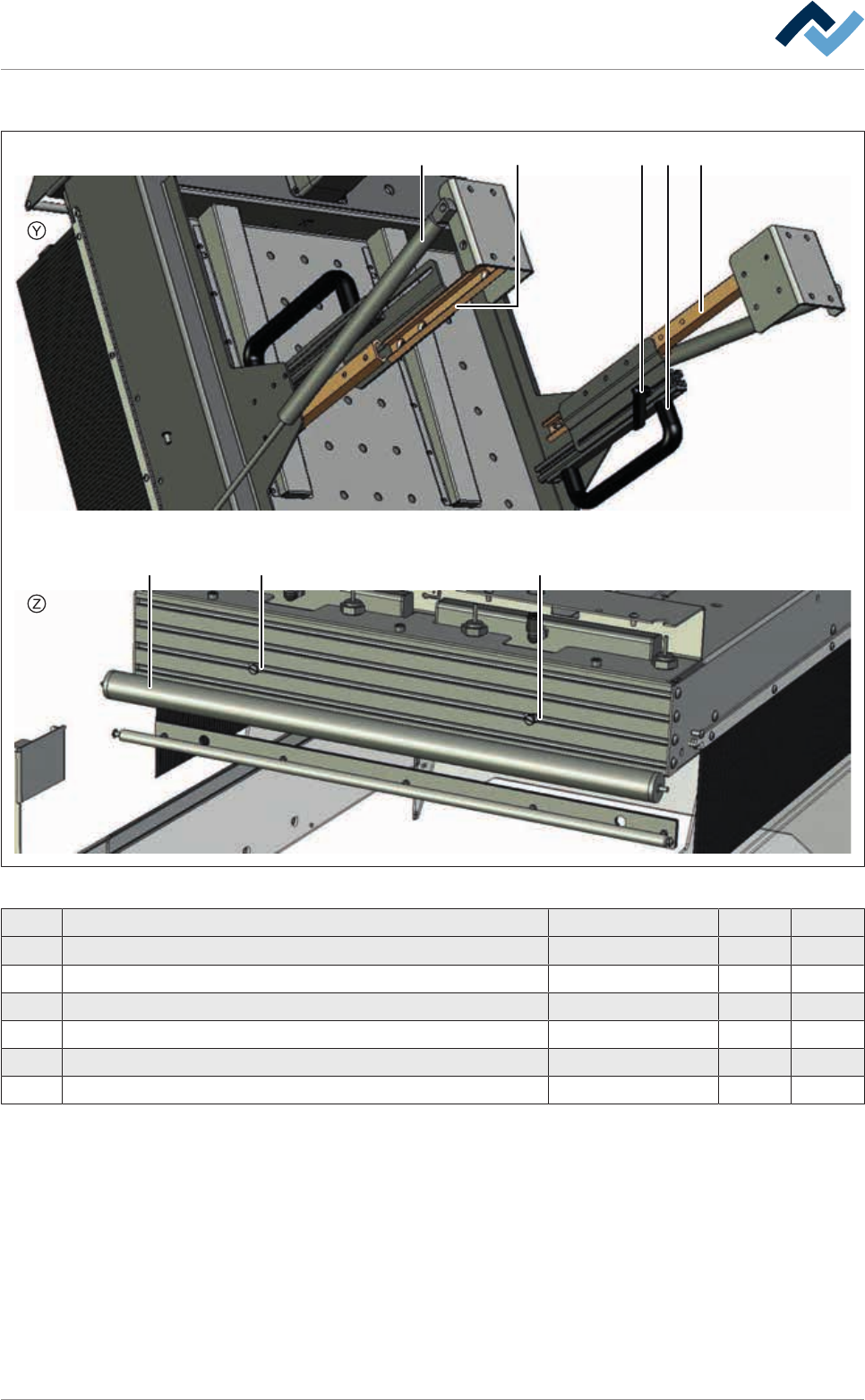

Upper heating installation kit, view [Y], [Z]
1
4 6 6
3 5 22
Fig.318: EM113-53-00a
Pos Designation Item number A B
1 Gas spring, stroke = 200 mm 173139 x
2 Telescopic rail HG26-250 127093 x
3 Clamp lever 20° M5 x 8 173141 x
4 Spring-loaded shaft Ø 25 mm / L = 531 mm 177458 x
5 Bow-type handle insulated, GN-564-25-160 6GR-GN564 x
6 Groove nut STM4 6ZIS023 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 599/695
9|Spare and wear parts

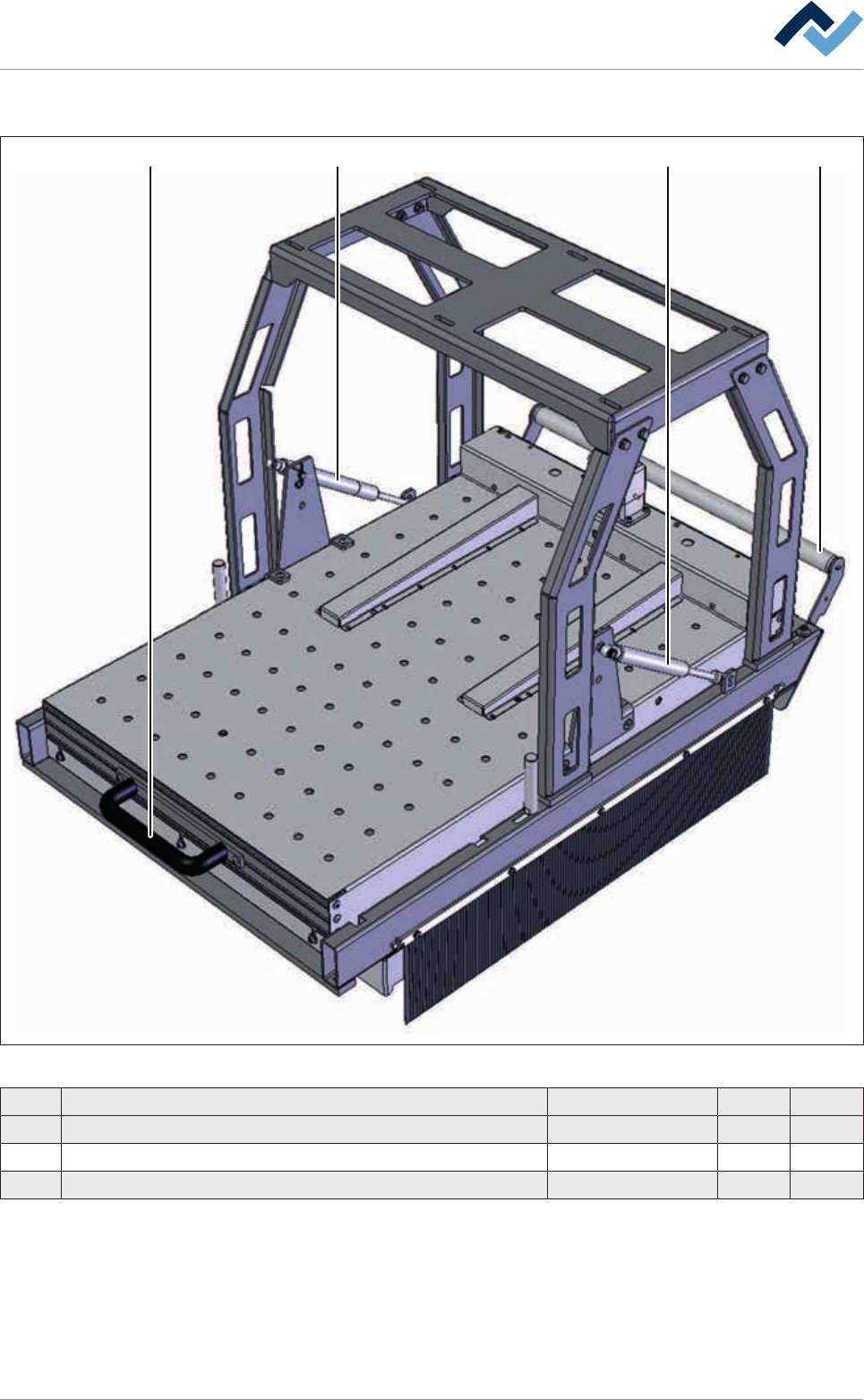

9.7.3 Top heating installation set 08/2010 -->
12 1 3
Fig.319: EM113-58-00
Pos Description Item number A B
1 Gas spring (350 N) 199865 x
2 Bow-type handle insulated, GN-564-25-160 6GR-GN564 x
3 Spring-loaded shaft Ø 25 mm / L = 531 mm 177458 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 600/695
9|Spare and wear parts
9.7.4 Compressed air heating
Overview

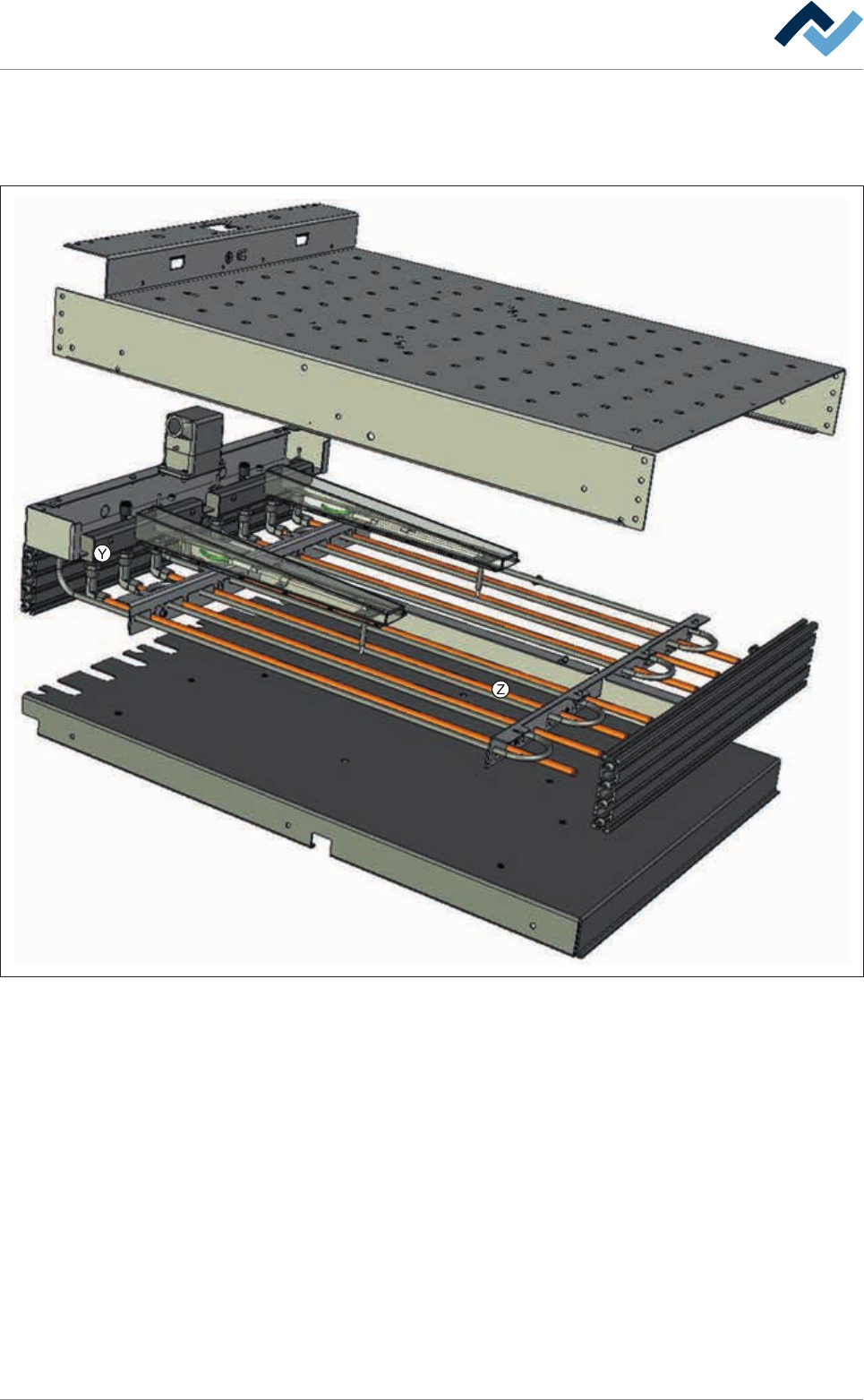

Fig.320: EM113-52-00A
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 601/695
