9|Spare and wear parts

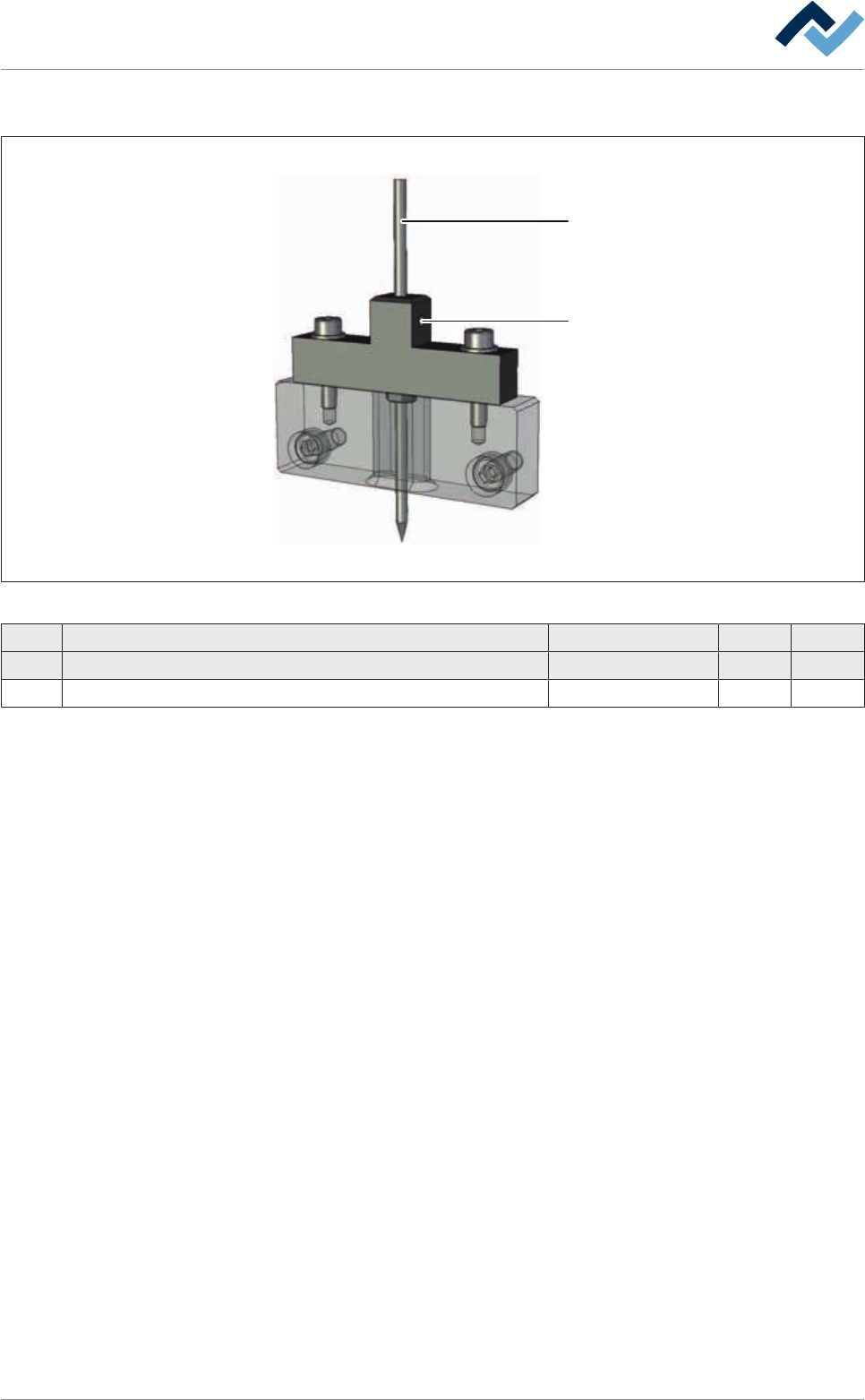

9.8.11 Wave height measurement
1
2
Fig.334: EM113-67-00
Pos Description Item number A B
1 Probe 145960 x
2 Set screw M03X003 zinc-plated ISO 4026/DIN 913 6M03X003Z0913 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 620/695
9|Spare and wear parts
9.8.12 Wave height measurement, dual
1
1
2
2
Fig.335: EM113-67-10-00
Pos Designation Item number A B
1 Probe 145960 x
2 Set screw M03X003 zinc-plated ISO 4026/DIN 913 6M03X003Z0913 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 621/695
9|Spare and wear parts

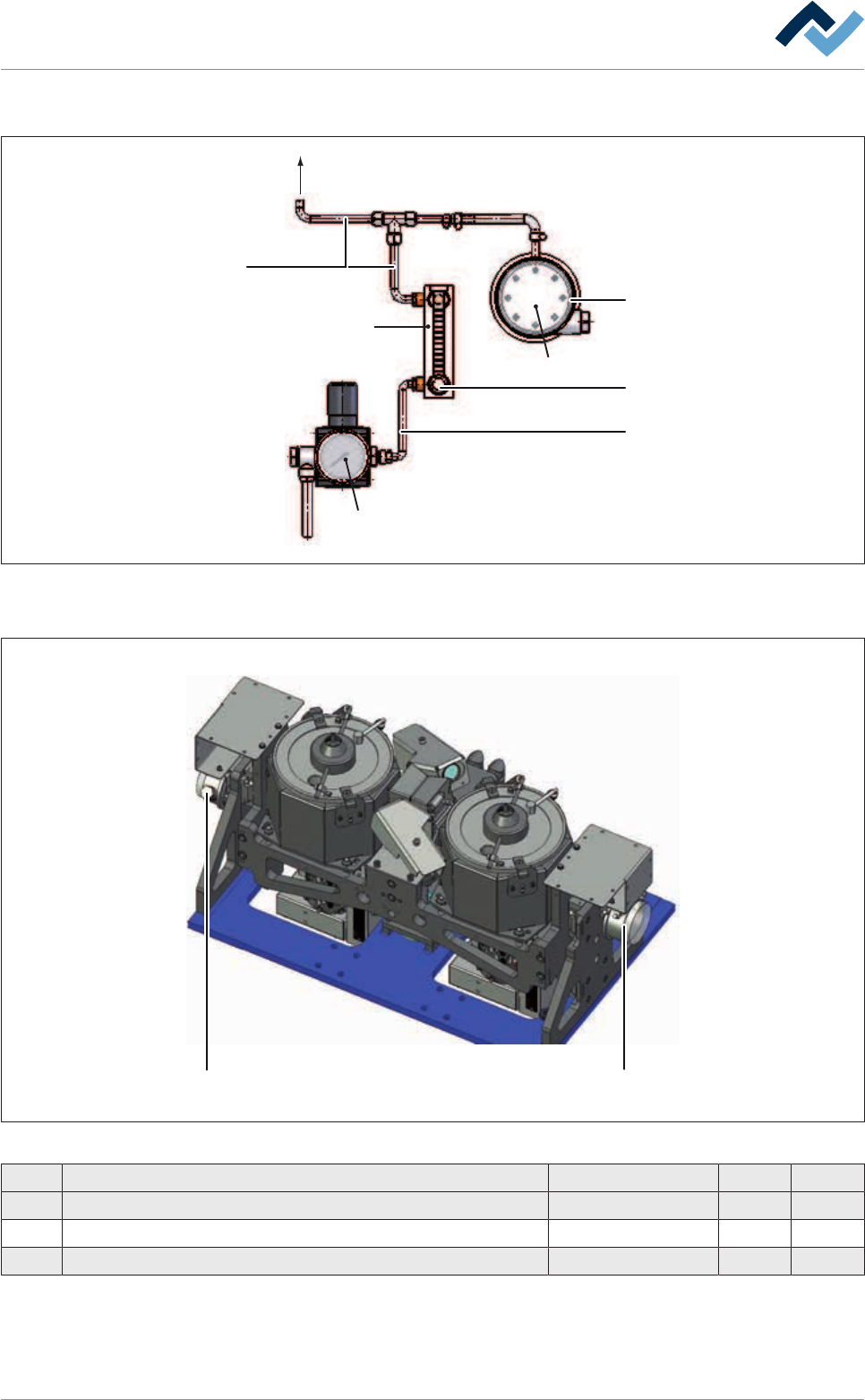

9.8.13 Solder level monitoring
min. 1 mbar
0,15l/min
0,5 bar
2
1
1
3
Fig.336: EM113-29-00a
22
Fig.337: EM113-29-00
Pos Description Item number A B
1 Hose Ø 6/4, PTFE, bulk stock 6SPTFE06X1 x
2 Differential pressure switch 6ET00158 x
3 Flow meter 0.05 - 0.35 l/min 113826 x
