9|Spare and wear parts Second stopper right, (segmented preheating), view [Y], [Z] 1 2 8 4 5 7 3 6 6 9 7 7 4 6 5 Fig.254: EM113-37-03-00a Pos Designation Item number A B 1 Joint clip 170367 x 2 Swivel head M6 170366 x…
9|Spare and wear parts
9.5.2.8 Second stopper right, (segmented preheating)

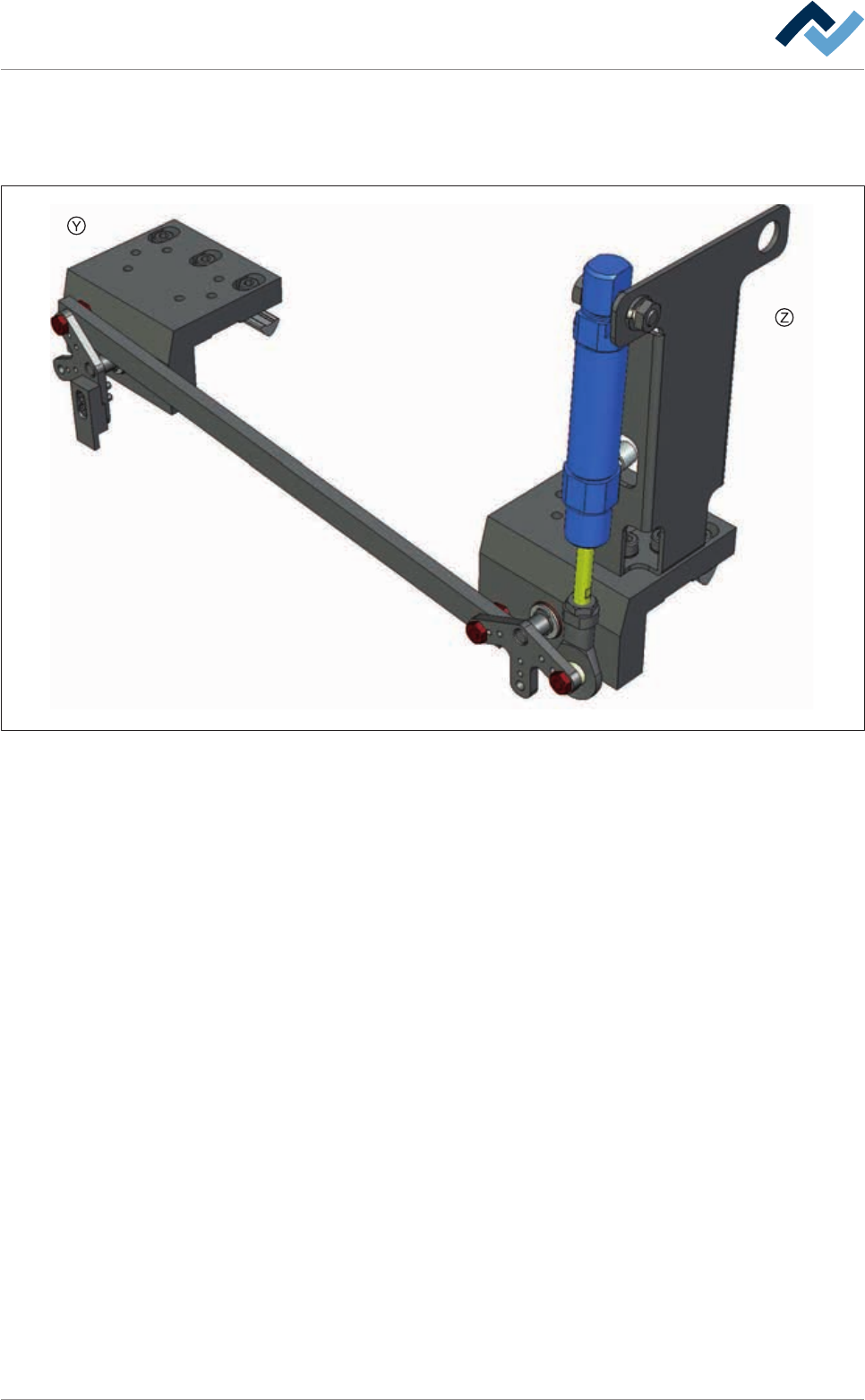

Overview
Fig.253: EM113-37-03-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 532/695
9|Spare and wear parts

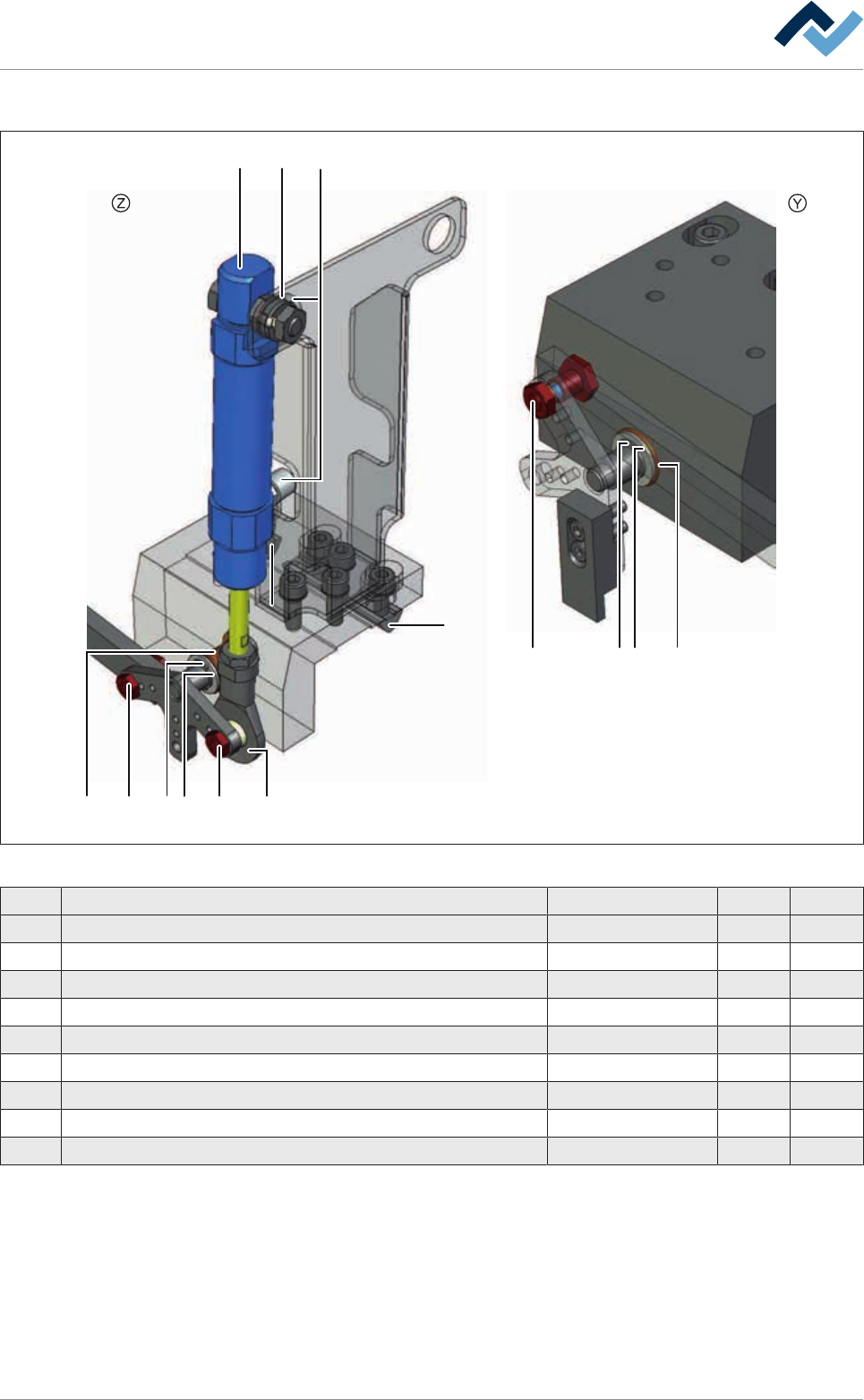

Second stopper right, (segmented preheating), view [Y], [Z]
1
2
8
4
57
3
66
9
7
7 4 65
Fig.254: EM113-37-03-00a
Pos Designation Item number A B
1 Joint clip 170367 x
2 Swivel head M6 170366 x
3 Groove nut STM5 6ZIS049 x
4 Washer 8/14X1,0 DIN988 6SA08X1.00 x
5 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
6 Collar bush 143513 x
7 Pan head screw M5 170207 x
8 Straight screwing M5, stainless stell 97965 x
9 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant 85950 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 533/695
9|Spare and wear parts
9.5.3 Selective soldering unit conveyor system
9.5.3.1 Fixed rail 1, (single track)

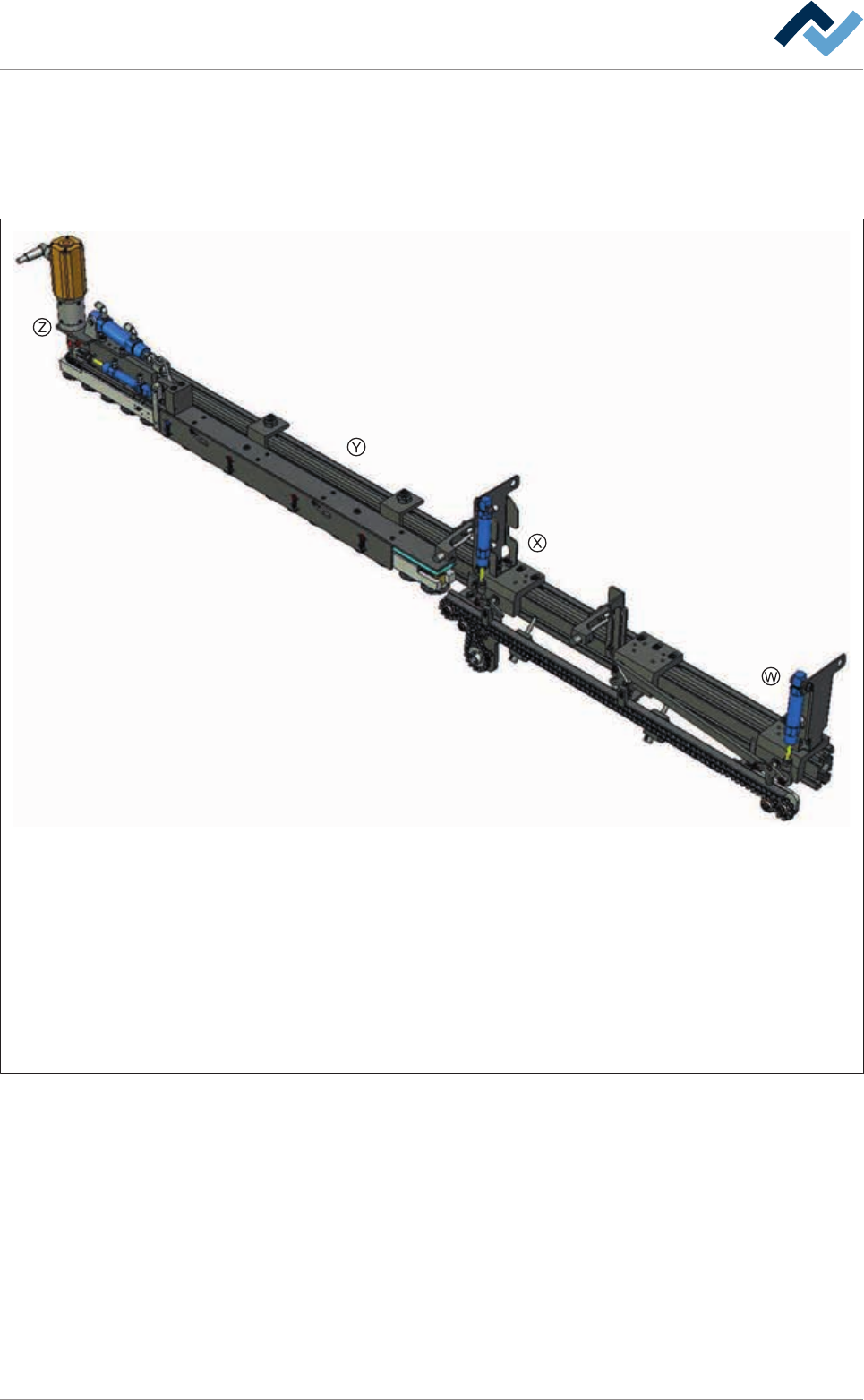

Overview
Fig.255: EM113-339-10-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 534/695
