9|Spare and wear parts

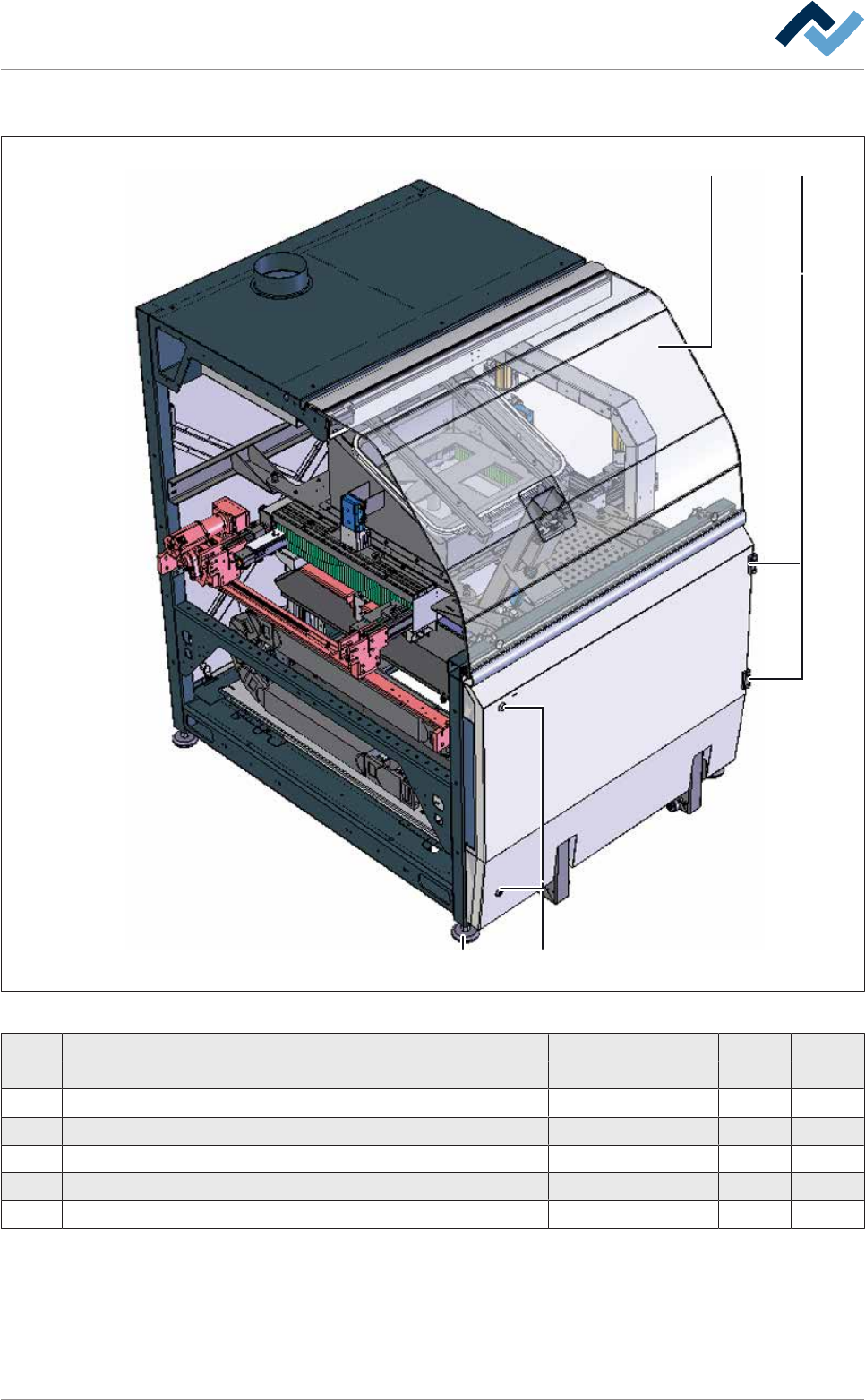

9.2.5 Additional module 1100 DIP
1 2
4 3
Fig.185: EM140-00-00a
Pos Designation Item number A B
1 Safety glass plate without cutout, module 1100 86292 x
1 Safety glass plate with cutout, module 1100 231922 x
2 Hinge EMKA Type 1110 93324 x
3 Lock 6VER2520 x
4 Adjusting foot 6STELLFM16X155 x
5 Key for control cabinet (unpictured) 6VERSCHLÜ2531 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 457/695
9|Spare and wear parts

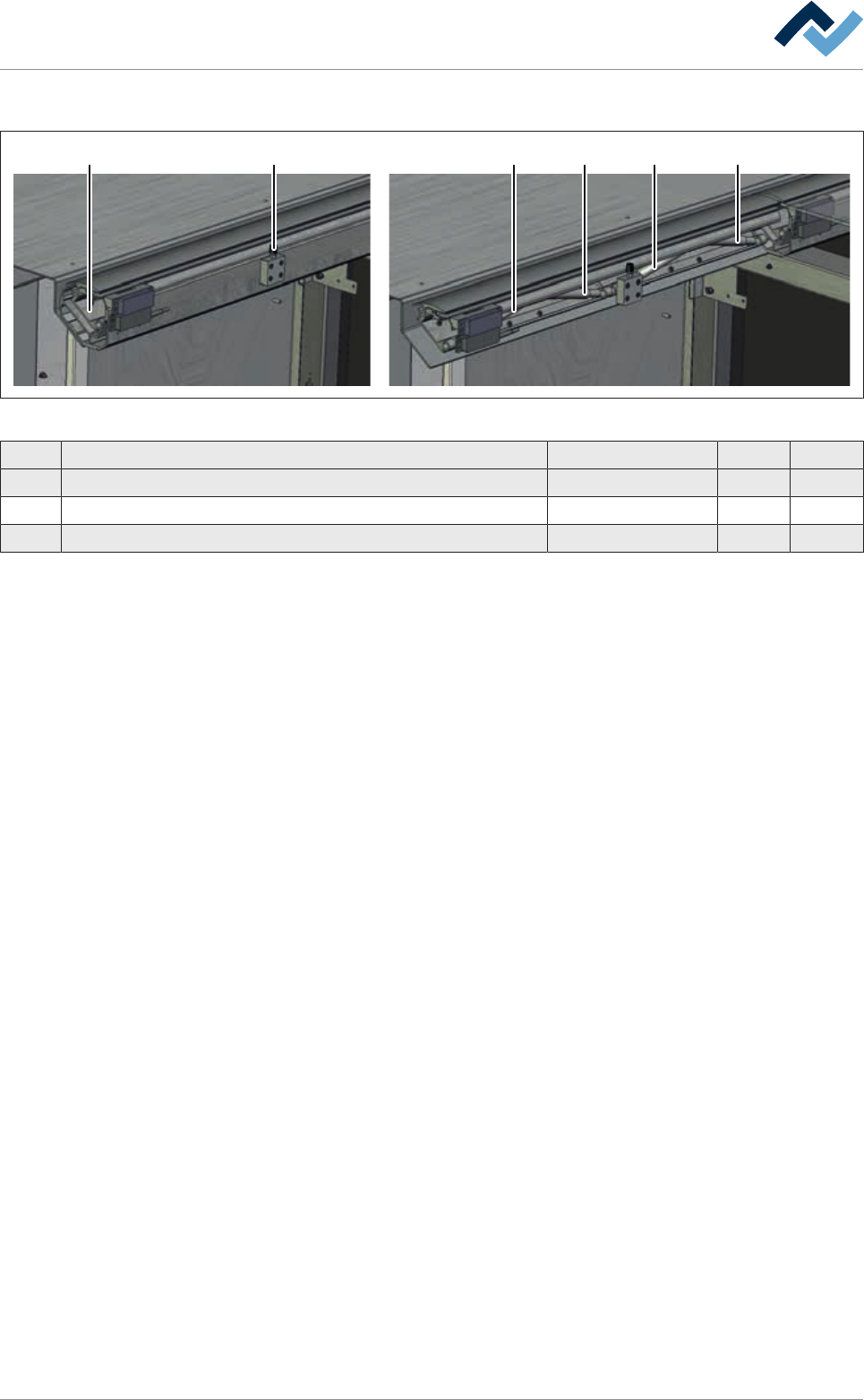

Additional module 1100 DIP
1 2 3 3 3 3
Fig.186: EM113-15-00a
Pos Designation Item number A B
1 Lever element 86699 x
2 Pressure screw (Neopren) 6GN808-M5-45 x
3 Gas spring (500 N) * 182525 x
*Please note the type designation on the gas spring housing! To mount the gas
spring, Assembly tool for gas spring, item 123716 is required! Always have gas
springs replaced by specialised personnel!
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 458/695
9|Spare and wear parts
9.2.6 Additional module 1300 DIP XL
1 2
4 3
Fig.187: EM146-00-00a
Pos Designation Item number A B
1 Safety glass plate with cutout, module 1300 261469 x
2 Hinge EMKA Type 1110-u121, right side 236505 x
3 Lock 6VER2520 x
4 Adjusting foot 6STELLFM16X155 x
5 Key for control cabinet (unpictured) 6VERSCHLÜ2531 x
