9|Spare and wear parts 9.3 Spray fluxer and options 9.3.1 Complete spray fluxer Overview Fig.189: EM113-40-00A Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 461/695
9|Spare and wear parts
Additional module 1300 DIP XL
1 2 3 3 3 3
Fig.188: EM113-15-00a
Pos Designation Item number A B
1 Lever element 86699 x
2 Pressure screw (Neopren) 6GN808-M5-45 x
3 Gas spring (500 N) * 182525 x
*Please note the type designation on the gas spring housing! To mount the gas
spring, Assembly tool for gas spring, item 123716 is required! Always have gas
springs replaced by specialised personnel!
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 460/695
9|Spare and wear parts
9.3 Spray fluxer and options
9.3.1 Complete spray fluxer
Overview
Fig.189: EM113-40-00A
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 461/695
9|Spare and wear parts

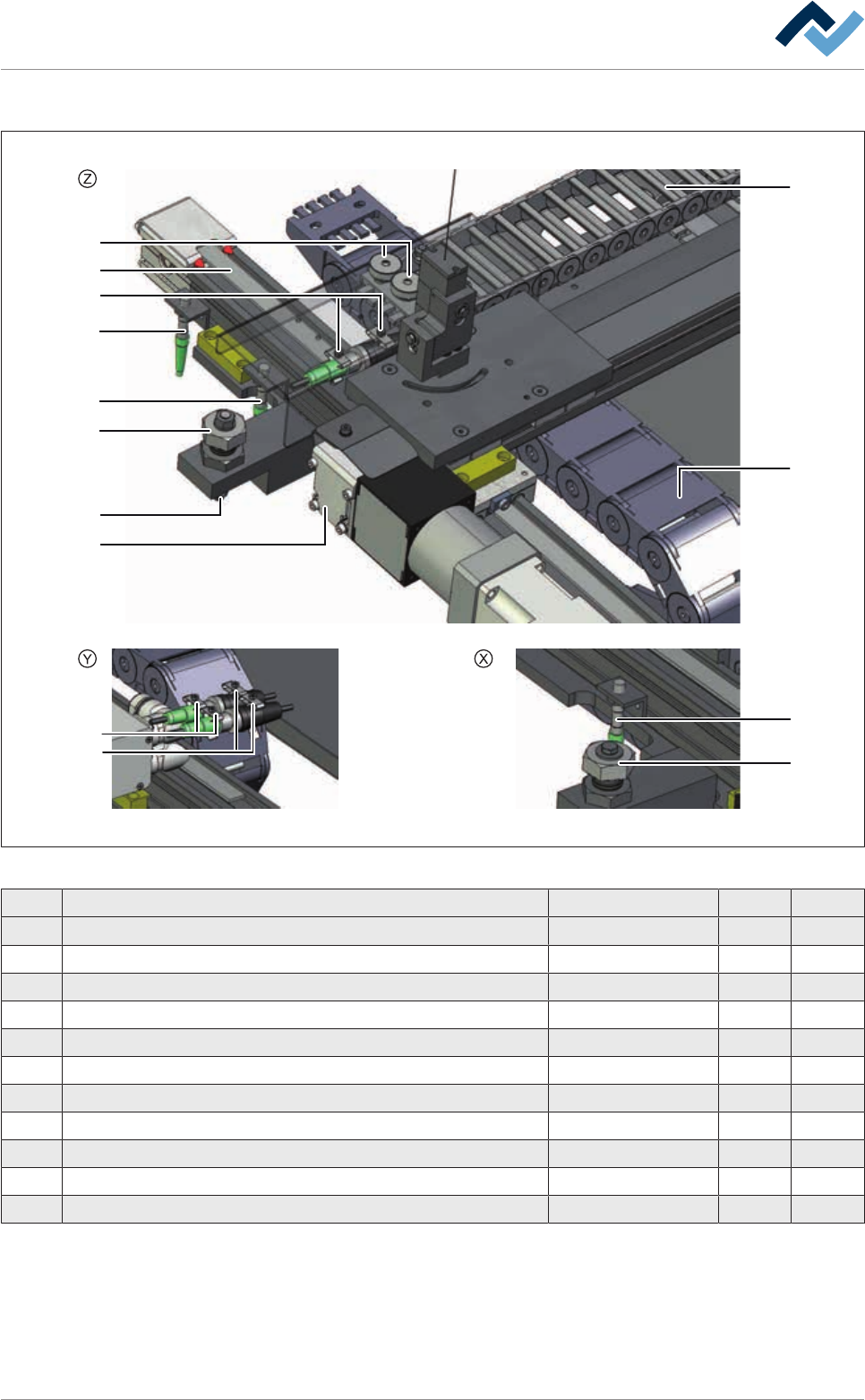

Spray fluxer, view [X], [Y], [Z]
1
2
10
4
5
7
11
6
9
3
1
3
7
8
Fig.190: EM113-40-00Aa
Pos Designation Item number A B
1 Inductive sensor PNP, NC 146183 x
2 Inductive sensor PNP, NO 146185 x
3 Adjusting screw 135733 x
4 Axis of rotation for height adjustment 155309 x
5 Energy chain 155662 x
6 Energy chain X-axis Fluxer 155639 x
7 Spring steel clamp 6FEDKL-G-D6-Z x
8 Hose clip, Euroclip 6SKLS101-12 x
9 Cable bushing 6KATÜ07-10 x
10 Tooth belt 16AT5, 1545 mm 216457 x
11 Tooth belt 16AT5, 2215 mm 216458 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 462/695
