9|Spare and wear parts

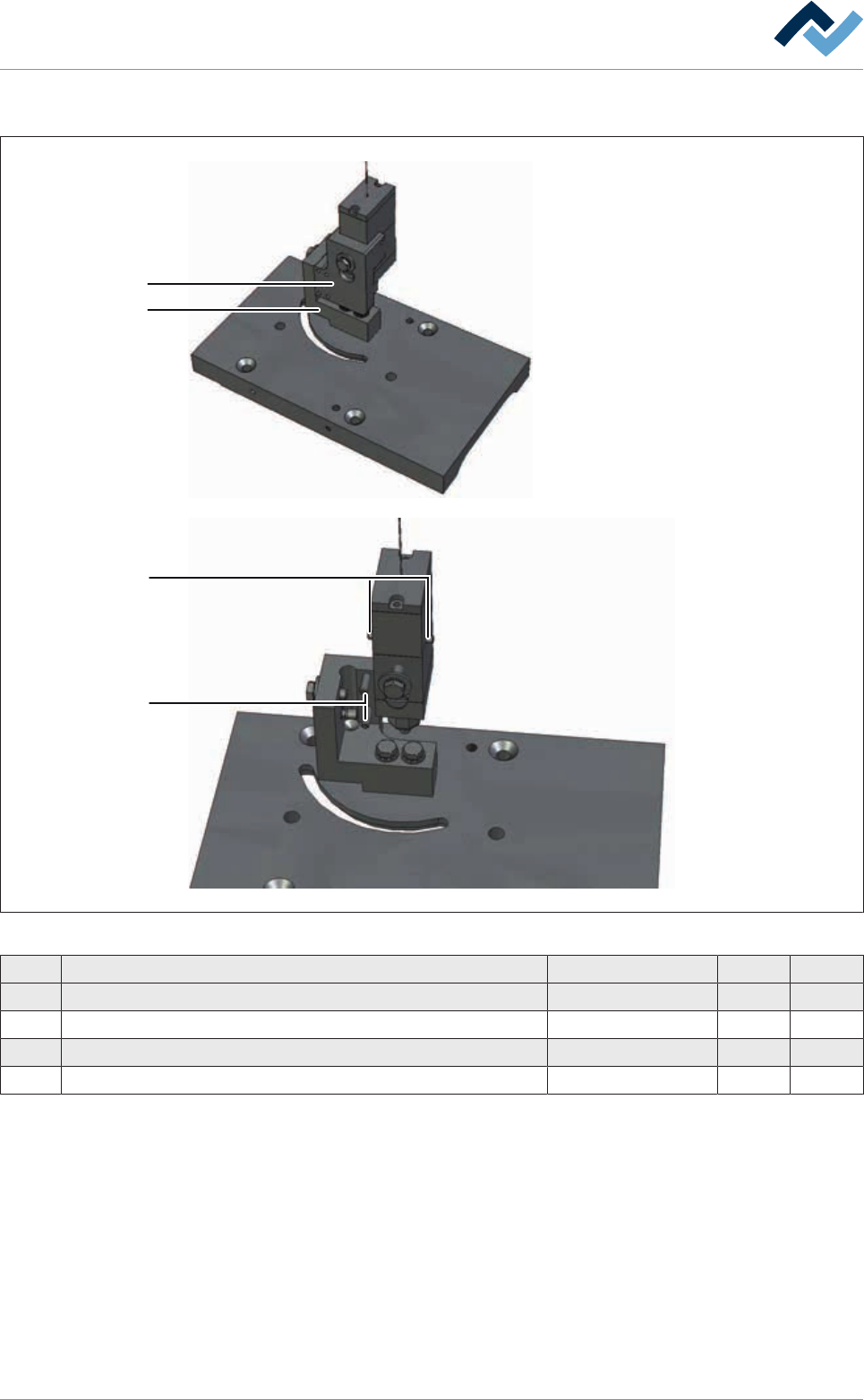

9.3.2 Fixed spray head holder (single track)
1
2
4
3
Fig.192: EM113-41-01-00
Pos Designation Item number A B
1 Spray head holder, fix 172047 x
2 Spray head holder, adjustable 145269 x
3 Set screw 6M03X010Z0914 x
4 Set screw M03X003 zinc-plated ISO 4026/DIN 913 6M03X003Z0913 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 464/695
9|Spare and wear parts

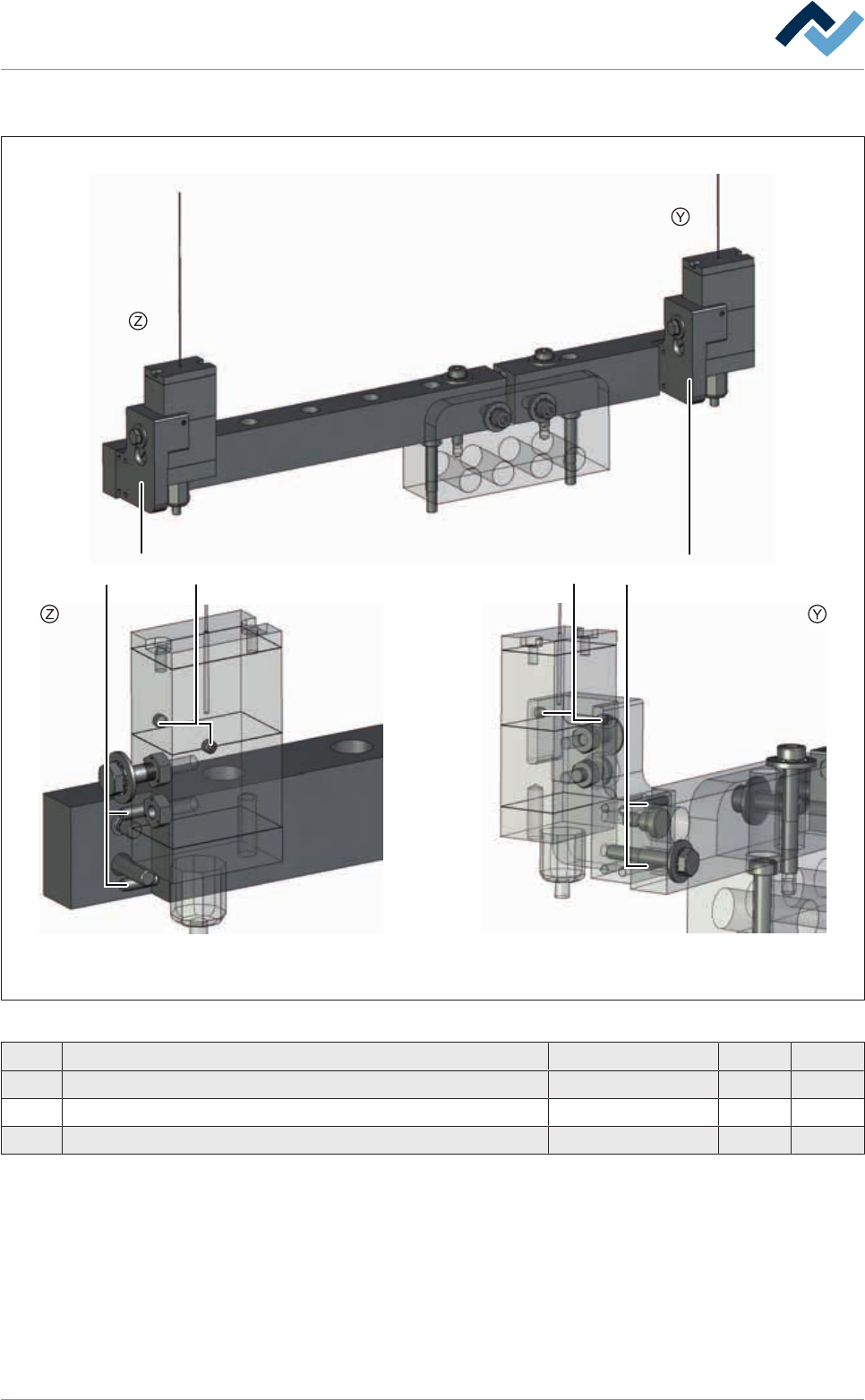

9.3.3 Fixed spray head support (dual track)
123 1
2
3
Fig.193: EM113-46-01-00a
Pos Description Item number A B
1 Spray head holder, adjustable 145269 x
2 Set screw 6M03X010Z0914 x
3 Set screw M03X003 zinc-plated ISO 4026/DIN 913 6M03X003Z0913 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 465/695
9|Spare and wear parts

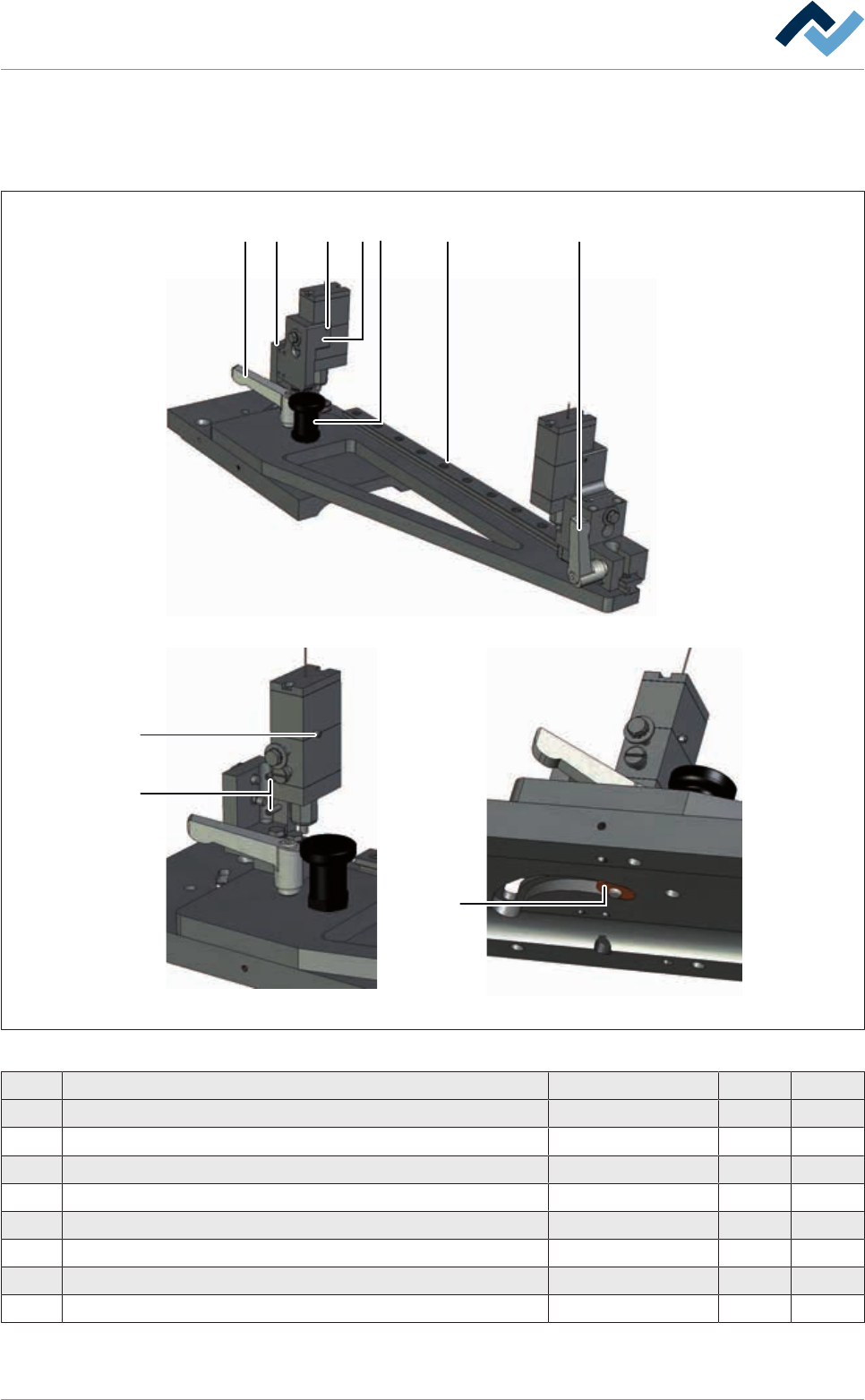

9.3.4 Accommodating the adjustable spray head
1
2
45 73 6
6
7
5
Fig.194: EM113-41-02-00
Pos Description Item number A B
1 Spray head holder, adjustable 172048 x
2 Groove block 172063 x
3 Spray head holder, adjustable 145269 x
4 Guide rail with slider 184463 x
5 Set screw M03X003 zinc-plated ISO 4026/DIN 913 6M03X003Z0913 x
6 Catch bolt 74763 x
7 Adjustable clamping lever 171954 x
8 Set screw 6M03X010Z0914 x
