9|Spare and wear parts 9.9.3.5 XL DIP soldering module (multiwave) setup verification Item Designation Item number A B 1 Rope tool coding for down holder-XL 322421 X 2 Rope tool coding for nozzle plate-XL 322449 X 3 Ro…
9|Spare and wear parts
View [W]
8 1011 4 519 3 26 7

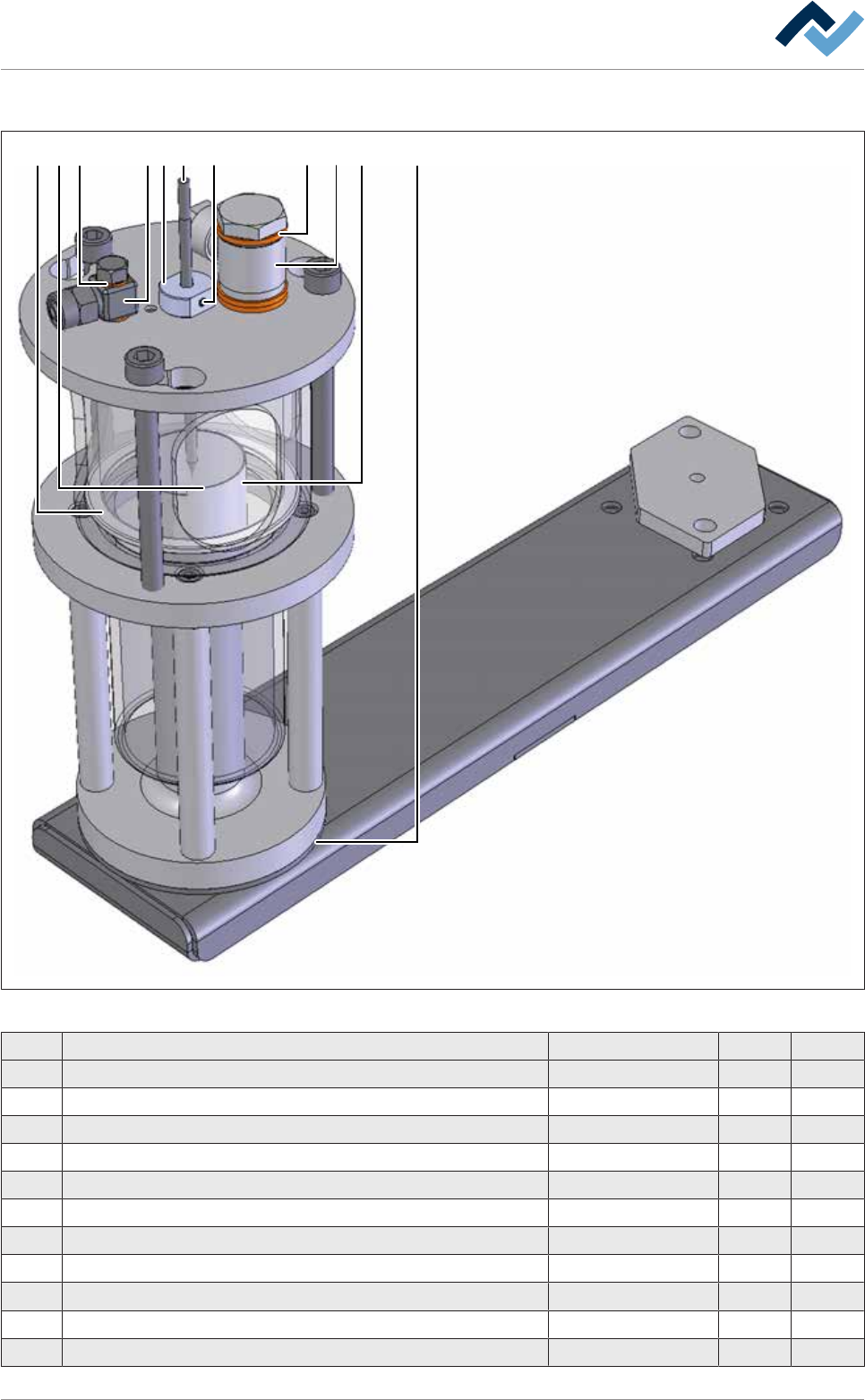

Fig.387: EM146-61-10-20-00C
Pos Description Item number A B
1 Gauge-glass 209190 x
2 Probe 145960 x
3 Isolation 255049 x
4 Reference nozzle 255088 x
5 Graphite sealing 209661 x
6 Sealing ring, copper 153612 x
7 Straight screwing M5, stainless steel 6BO116E x
8 Set screw M3 6M03X003E0913 x
9 Sealing ring 296644 x
10 Angular swivel screw connection 6BO102 x
11 Sealing ring, copper G1/4 153647 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 672/695
9|Spare and wear parts
9.9.3.5 XL DIP soldering module (multiwave) setup verification
Item Designation Item number A B
1 Rope tool coding for down holder-XL 322421 X
2 Rope tool coding for nozzle plate-XL 322449 X
3 Rope tool coding splash guard-XL 322427 X
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 673/695
9|Spare and wear parts
9.9.3.6 Solder feed with turret bar container (option)
5 11 432 6
Fig.388: EM140-61-50-004
Pos Description Part No. A B
1 One-way restrictor VFOH-LE-A-G18-Q4 302565 x
2 Sensorclip f. cylinder, Ø 20 208090 x
3 Mounting for sensor 208077 x
4 Insertion aid, fixed 132240 x
5 Round zylinder double-act, heat resist., Ø 20, stroke 80 312167 x
6 Plain bearing XFM-121418-059 312166 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 674/695
