9|Spare and wear parts
9.5.4.3 Fixed rail 1, DIP induction (single track)

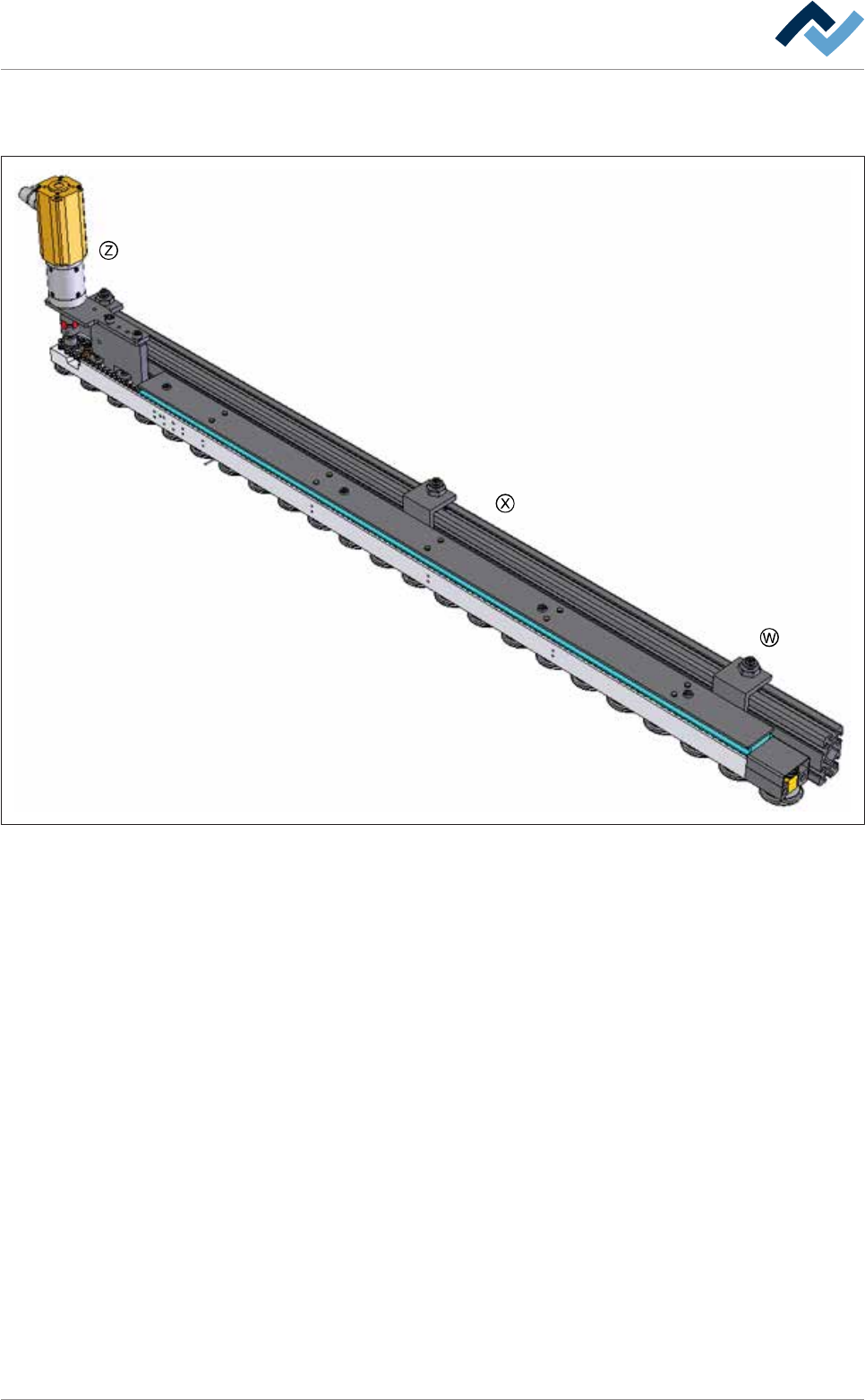

Overview
Fig.291: EM140-339-10-00a
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 570/695
9|Spare and wear parts

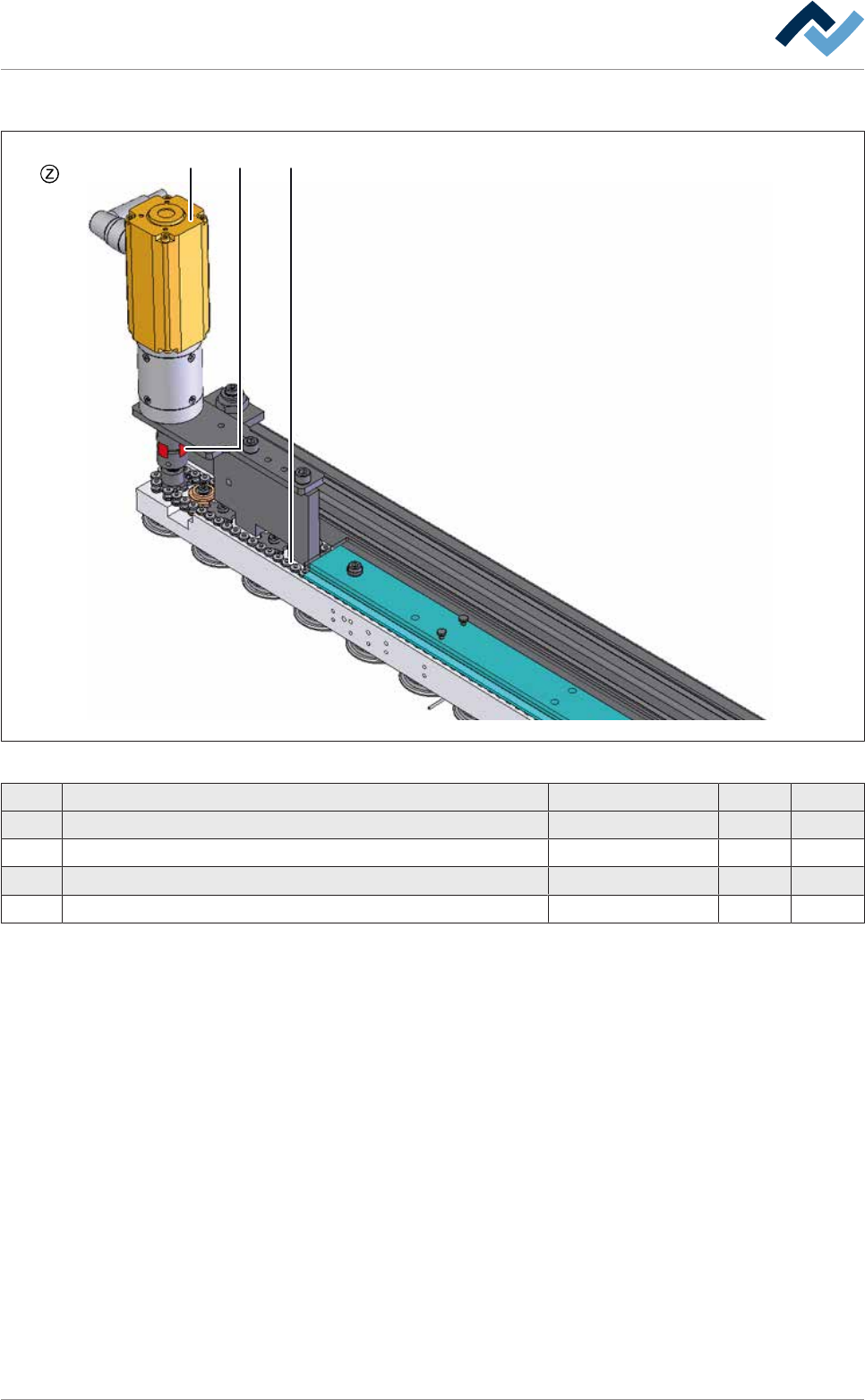

Fixed rail 1, DIP induction (single track), view [Z]
1 3, 42
Fig.292: EM140-339-10-00b
Pos Description Item number A B
1 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
2 Coupling Ø 20x30 143509 x
3 Chain 8,00 x 3,16 05B-1, bulk stock 144818 x
4 Chain joint 6KES05B-1G52NSB x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 571/695
9|Spare and wear parts

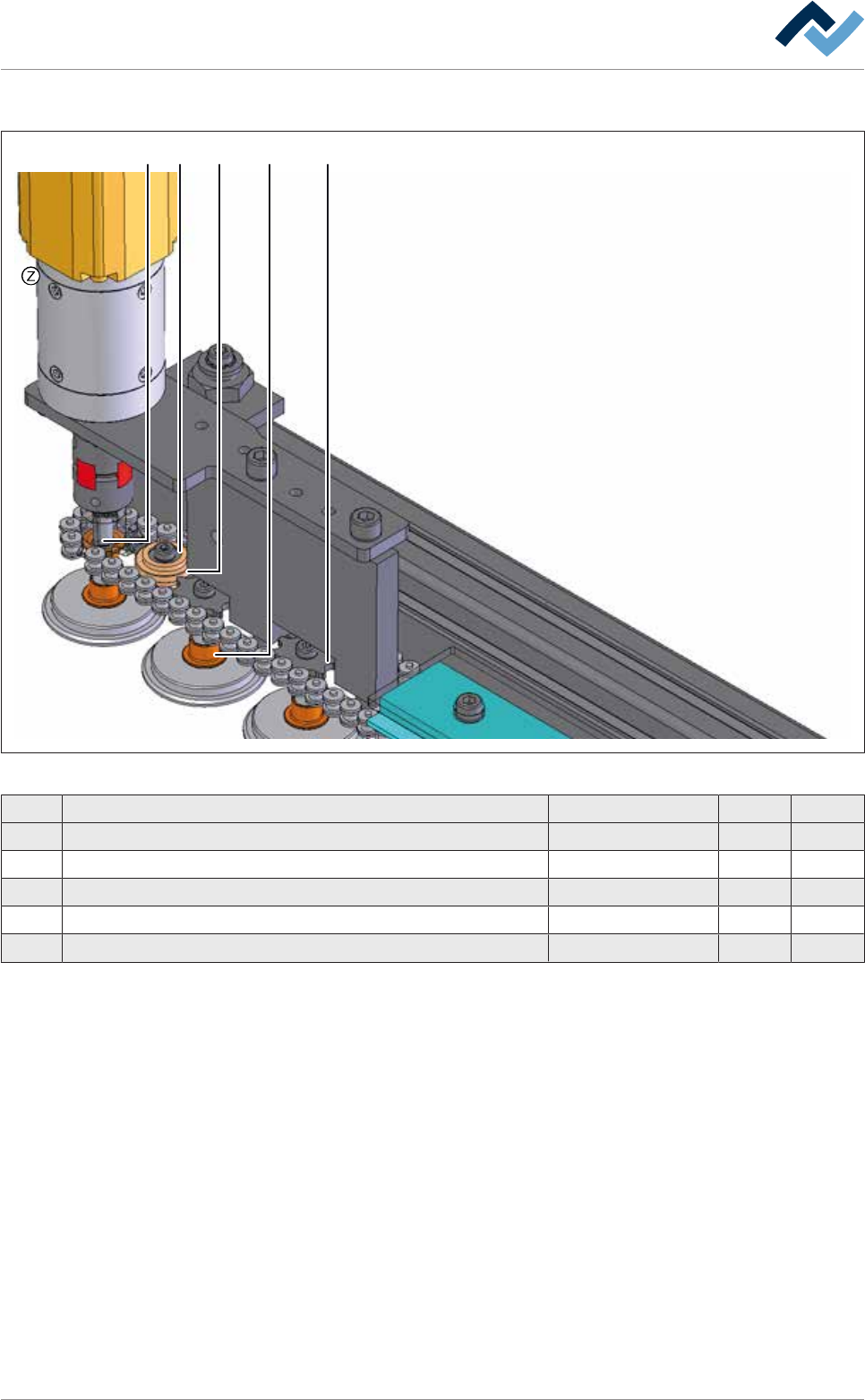

Fixed rail 1, DIP induction (single track), view [Z]
4
3152
Fig.293: EM140-339-10-00c
Pos Description Item number A B
1 Collar bush 143513 x
2 Feather key DIN 6885 2x2x10 6PSF2X2X10A x
3 Chain pinion 05-Z9 143638 x
4 Bearing 624 ZZ, up to 90°C 6LA624ZZ x
5 Deflection disk 143668 x
