9|Spare and wear parts 9.5.2.2 Flexible rail 1, (single track) Overview Fig.241: EM113-338-20-00 Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 519/695
9|Spare and wear parts
Fixed rail 1, (single track), view [Y]
132
Fig.240: EM113-338-10-00c
Pos Designation Item number A B
8 Circlip A 17 DIN 471 6SER-A170471 x
9 Bearing 6LA619032RS x
10 Spring 6FEDZ-094I x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 518/695
9|Spare and wear parts
9.5.2.2 Flexible rail 1, (single track)

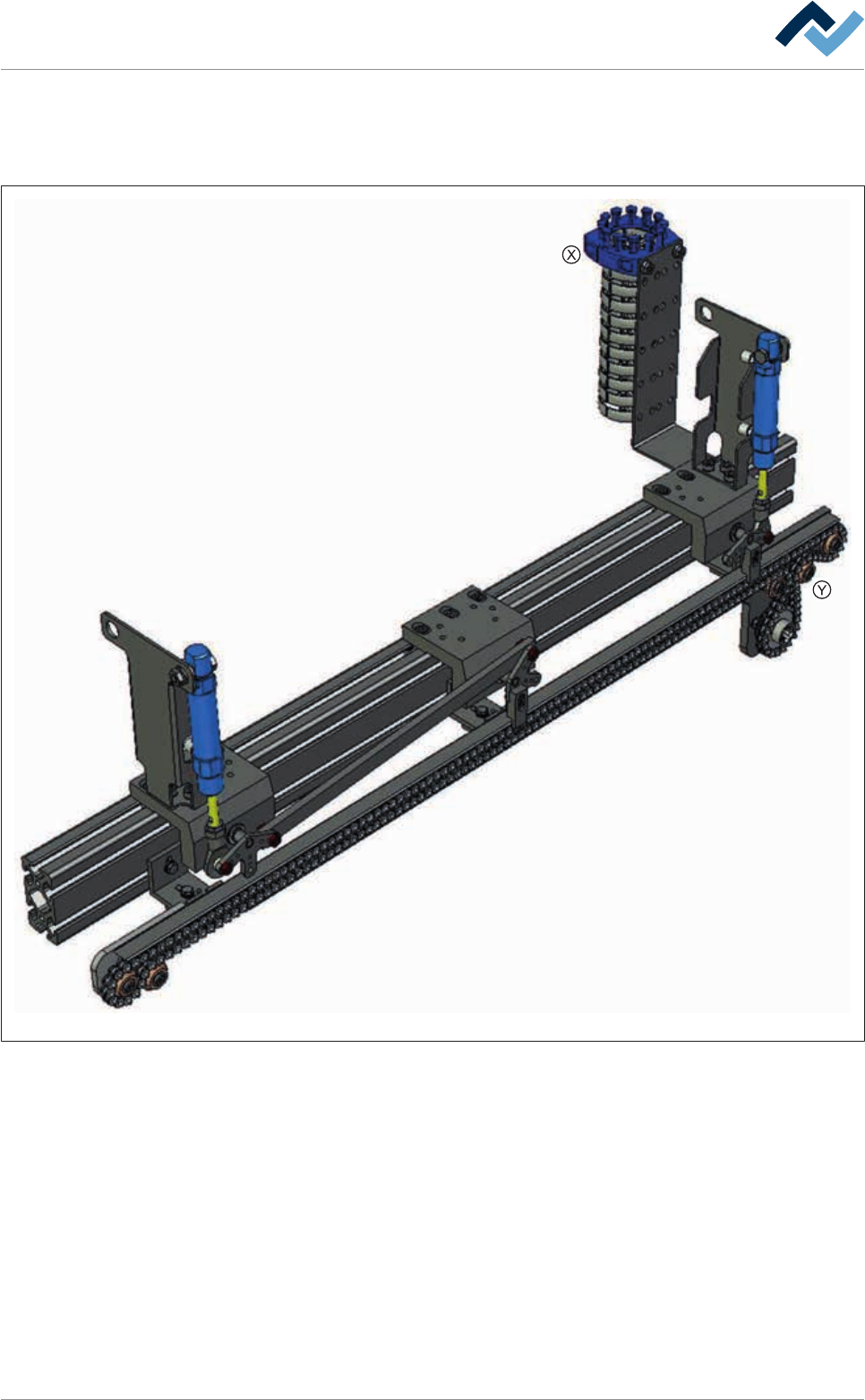

Overview
Fig.241: EM113-338-20-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 519/695
9|Spare and wear parts

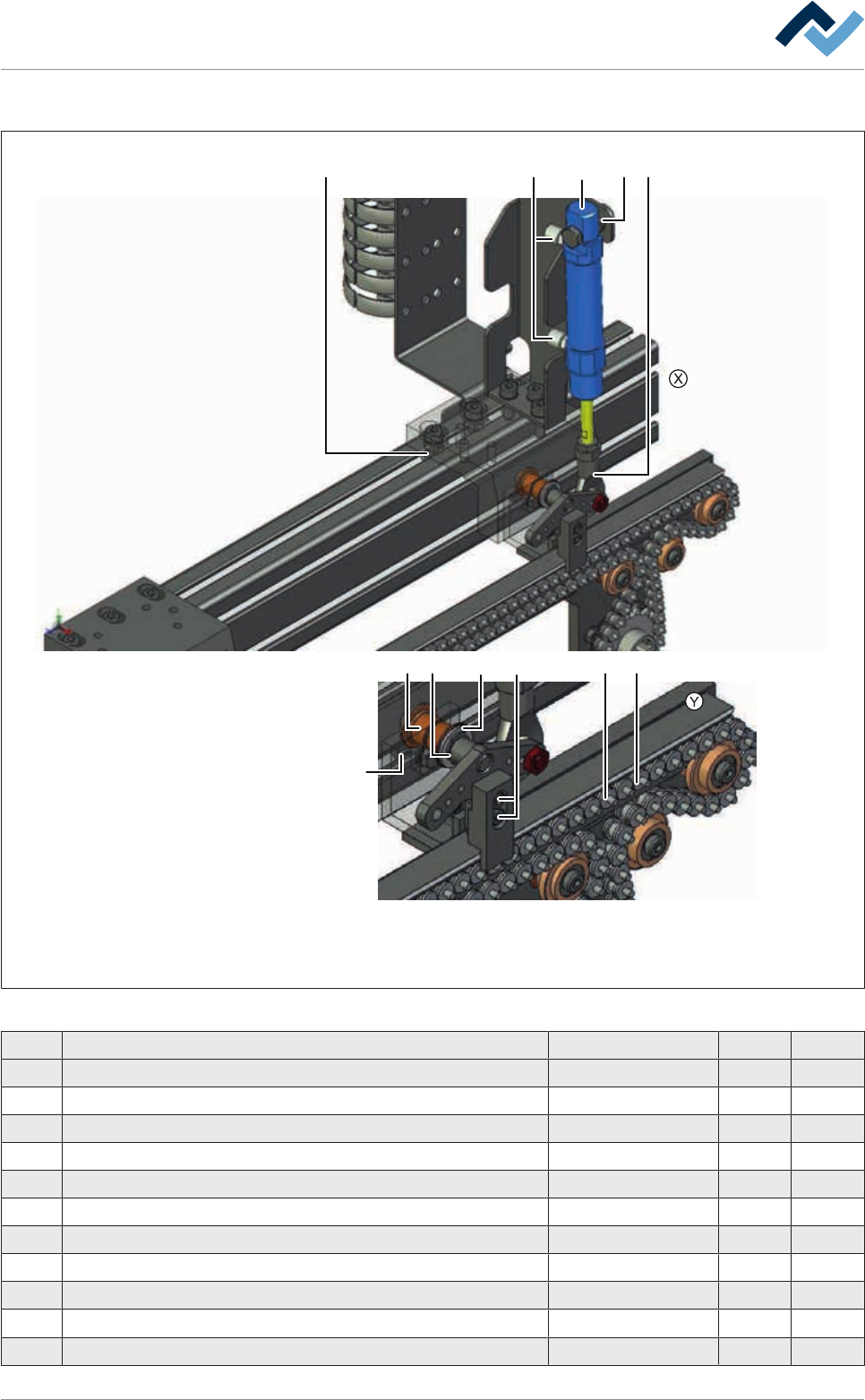

Flexible rail 1, (single track), view [X], [Y]
1
5 9 10
11
67
3 4
2
8
12
Fig.242: EM113-338-20-00a
Pos Designation Item number A B
1 Joint clip * 170367 x
2 Straight screwing M5, stainless stell * 97965 x
3 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant * 85950 x
4 Swivel head M6 * 170366 x
5 Screw M3 * 6M03X008Z0912 x
6 Washer 8/14X0,5 DIN988 * 6SA08X0.50 x
7 Circlip A 8x0,8mm, DIN 471 * 6SER-A080471 x
8 Collar bush * 143513 x
9 Conveyor chain, 3 mm pins, bulk stock 208821 x
10 Chain joint 3 mm 208824 x
11 Groove nut, flute width 6 M4 26315 x
