9|Spare and wear parts
CAUTION
Malfunctioning possible!
If the motor/gearbox combination 175816is replaced by the 191607 one, you must
load the appropriate parameters in the driver controller. With respect to this, please
read the [100049_SSD_Drive_einrichten.pdf] in the data carrier [Product data Versa-
flow 3] document. You can find the WPLN type parameters in the [Software\Parker
\Maschinendaten\638_Versaflow3xx\Parameter] directory. If the motor/gearbox
combination 175817 is replaced by the 191608 one, no adjustment of the parameters
is necessary.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 476/695
9|Spare and wear parts

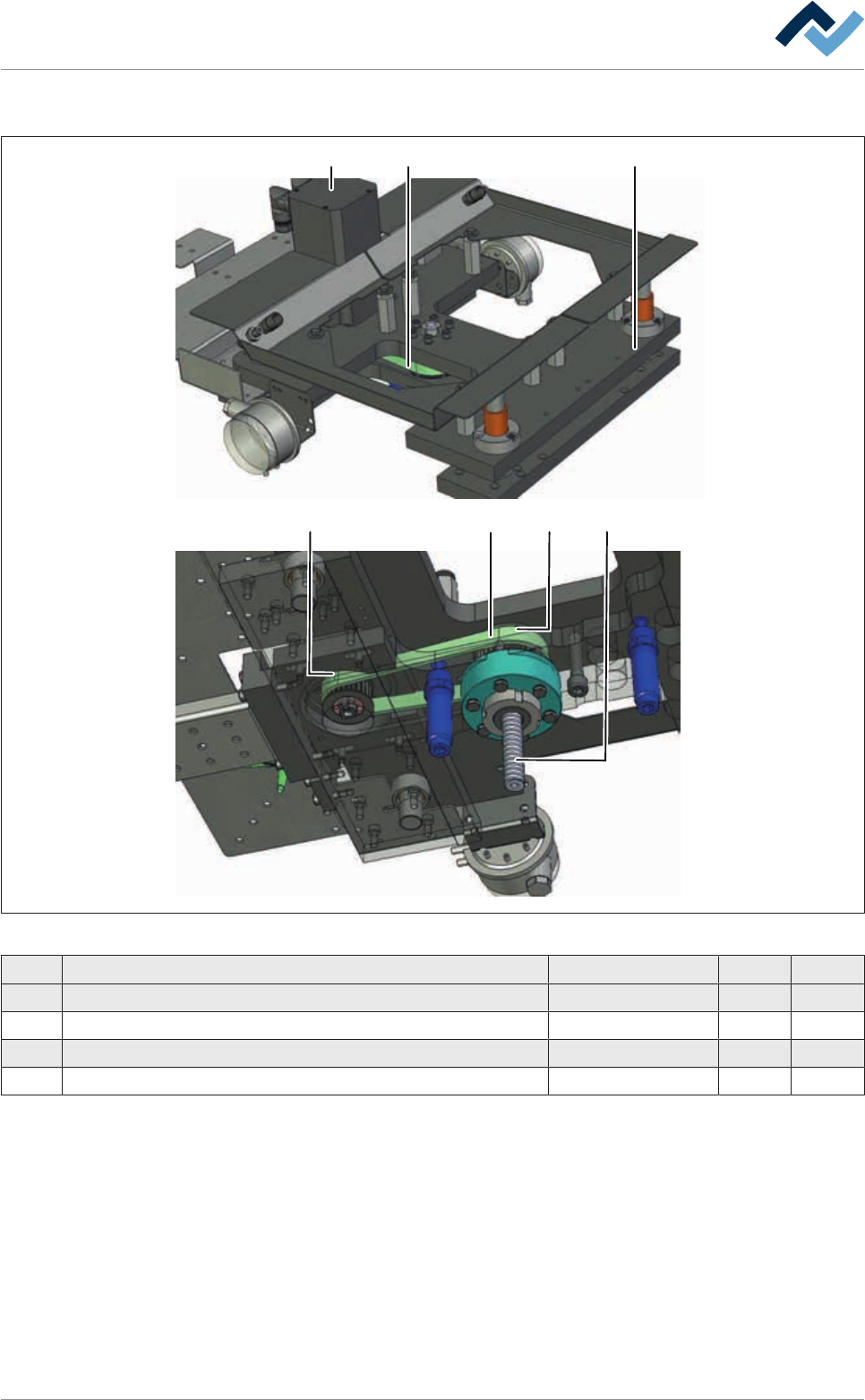

9.4.2 Z-axis single pot
1
2
4
2
21
1
3
Fig.204: EM113-21-01-00
Pos Description Item number A B
1 Tooth belt 425-5M-15 6ZR0425-5M-15 x
2 Tensioning kit 112207 x
3 Servo drive with resolver 23567 x
4 Lifting spindle, complete (Cannot be shipped separately) 209659 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 477/695
9|Spare and wear parts

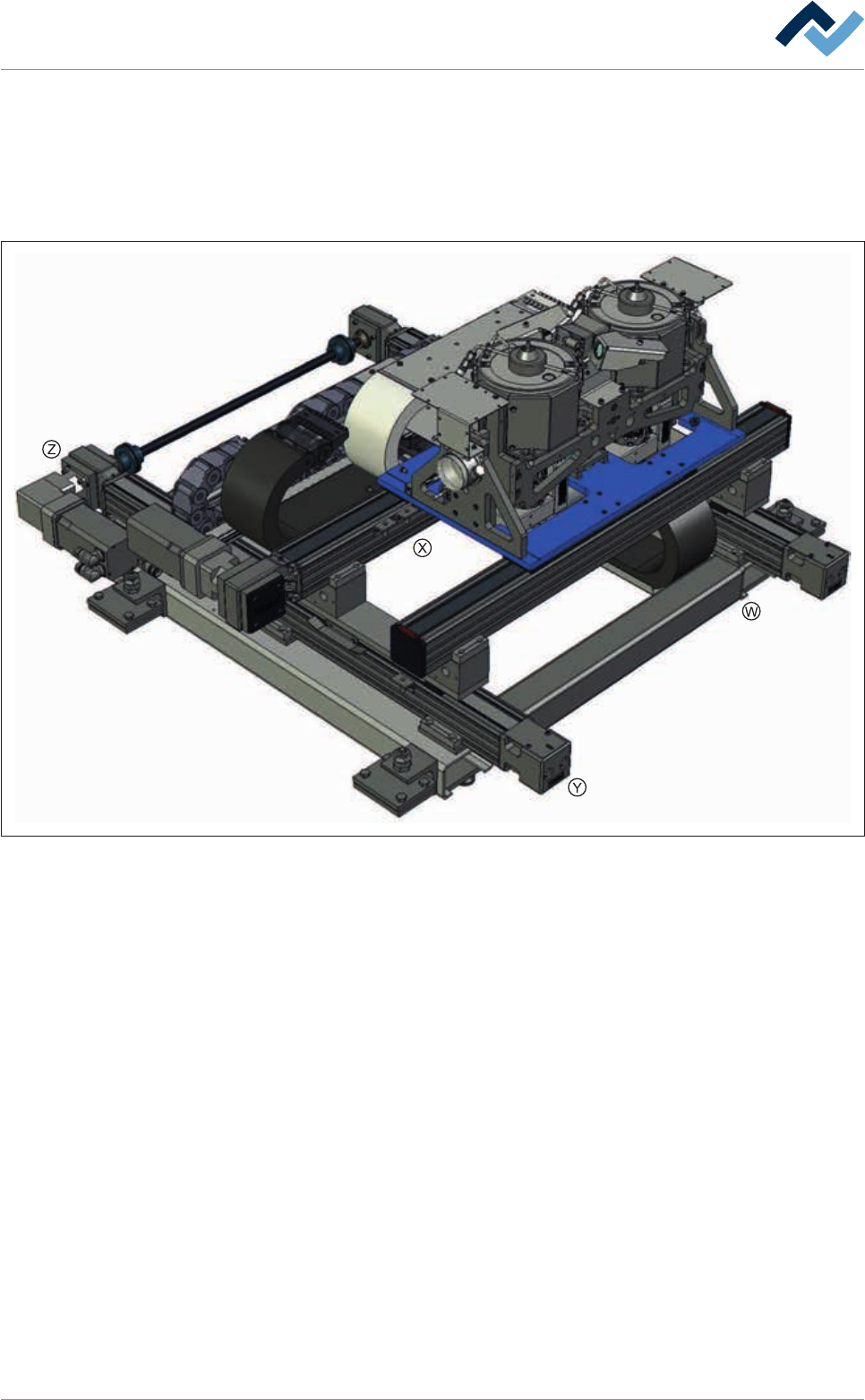

9.4.3 Double pot positioning system (dual track)
Overview
Fig.205: EM113-24-00
