9|Spare and wear parts 9.5.1.4 Flexible rail 2, (dual track) Overview Fig.235: EM113-333-40-00 Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 511/695
9|Spare and wear parts
Pos Designation Item number A B
12 Bearing 6LA619032RS x
13 Spring 6FEDZ-094I x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 510/695
9|Spare and wear parts

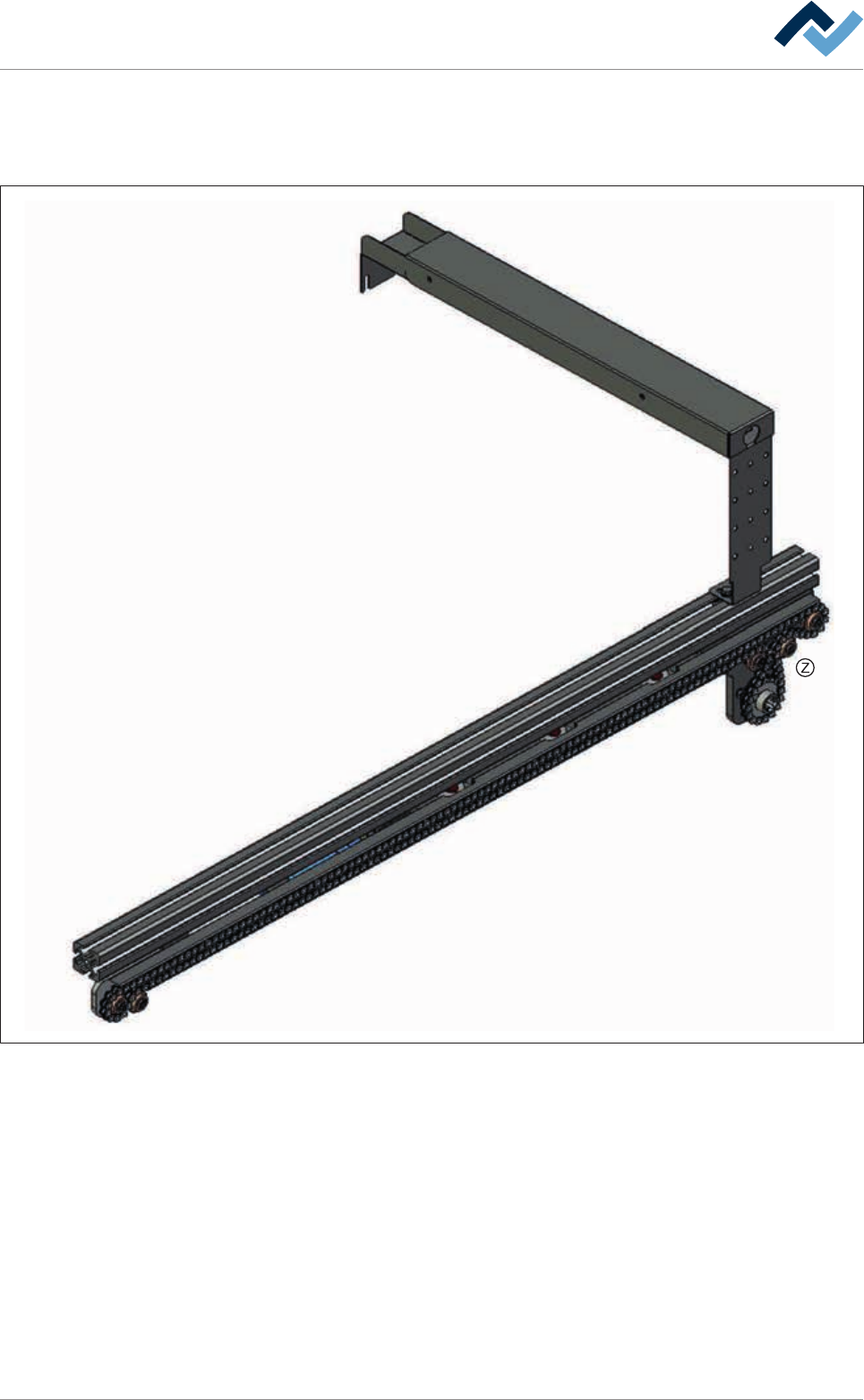

9.5.1.4 Flexible rail 2, (dual track)
Overview
Fig.235: EM113-333-40-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 511/695
9|Spare and wear parts
Flexible rail 2, (dual track), view [Z]
123
8
477
3 43
11
9
5
6
10
10
12
13
Fig.236: EM113-333-40-00a
Pos Designation Item number A B
1 Conveyor chain, 3 mm pins, bulk stock 208821 x
2 Chain joint 3 mm 208824 x
3 Groove nut STM5 6ZIS049 x
4 Groove nut, flute width 6 M4 26315 x
5 Sliding piece (chain tensioner) 169520 x
6 Distance bush 108981 x
7 Bearing 6LA624Z x
8 Deflection disk 143668 x
9 Deflection roller Ø 21 mm 107607 x
10 Chain wheel Z=15 170047 x
11 Circlip A 17 DIN 471 6SER-A170471 x
