6|Function description 6.7.6 The [Messages] setting dialog In this dialog, you can set how long the horn (optional) will sound if a new message appears. In addition, you can test the lights and the horn of the signal l…
6|Function description
Creating cyclic messages
ü Creating a cyclic message:
a) in the [Messages] dialogue of the [Text] column, click on a blank line and enter
a descriptive message text, for example, conveyor chain lubrication.
b) Enter descriptive locations, for example infeed, in the [Facility 1]...[Facility 3]
columns.
c) Set a time interval in the [Interval] column with the dropdown menu.
ð Depending on which interval is set in the [Interval] column, other columns
appear to the right, or the content of the columns to the right changes.
d) On this regard, please observe the following table:
Set interval Column 1 Descrip-
tion
Column 2 Descrip-
tion
Column 3 Descrip-
tion
[daily] [Hour on day] Column is not vis-
ible
Column is not vis-
ible
weekly] [Weekday] [Hour on day] Column is not vis-
ible
[monthly] [Day in month] [Hour on day] Column is not vis-
ible
[running time] [Hour on day] not
editable
[Hour of operation] Column is not vis-
ible
[Numbers of
Boards]
[Hour on day], not
editable
[Hour of operation],
not editable
[Boards after in-
feed]
Setting a message interval
a) Setting the desired interval.
b) Click on the [Active] checkbox to enable the message.
ð If the checkbox is not enabled, the message will not appear!
c) Click on the [Infeed stopper] checkbox to block the machine infeed when the
message appears.
ð If the checkbox is not enabled, the PCB will continue to be fed into the ma-
chine when the message appears.
ð You have created a cyclic message.
Deferring cyclic messages
You can specify how often each cyclic message may be ignored. This is useful, for
example, if the current production must not be interrupted.
ü Deferring a cyclic message:
a) Set a value in the [Max. number of resettings] column.
ð For example, if you set value [3], you can defer the message three times.
b) Enter a value in [h] in the [Period of resetting [h]] column.
ð If you set, for example, the value of [2h], the message re-appears after
[2h].
ð If the [Max. number of resettings] is reached, you can no longer defer the mes-
sage.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 155/695
6|Function description
6.7.6 The [Messages] setting dialog
In this dialog, you can set how long the horn (optional) will sound if a new message
appears. In addition, you can test the lights and the horn of the signal lamp, look
for message texts, and display a help for the found message text.
NOTE
Are any changes possible?
The [Module properties] user rights are required to access this dialog. Settings can
only be displayed if no name and password are logged in. In this case, press the [ESC]
key on your keyboard, or click on the [Cancel] button when a password is required.
ü To open the [Messages] settings dialog:
a) In the [Messages] dialog, in the bottom toolbar, click on the
button,
ð The [Messages] settings dialog is opened:
User ersa
Messages Settings
Max duration signal horn on
Second language
Search for message text
Maintenance mode

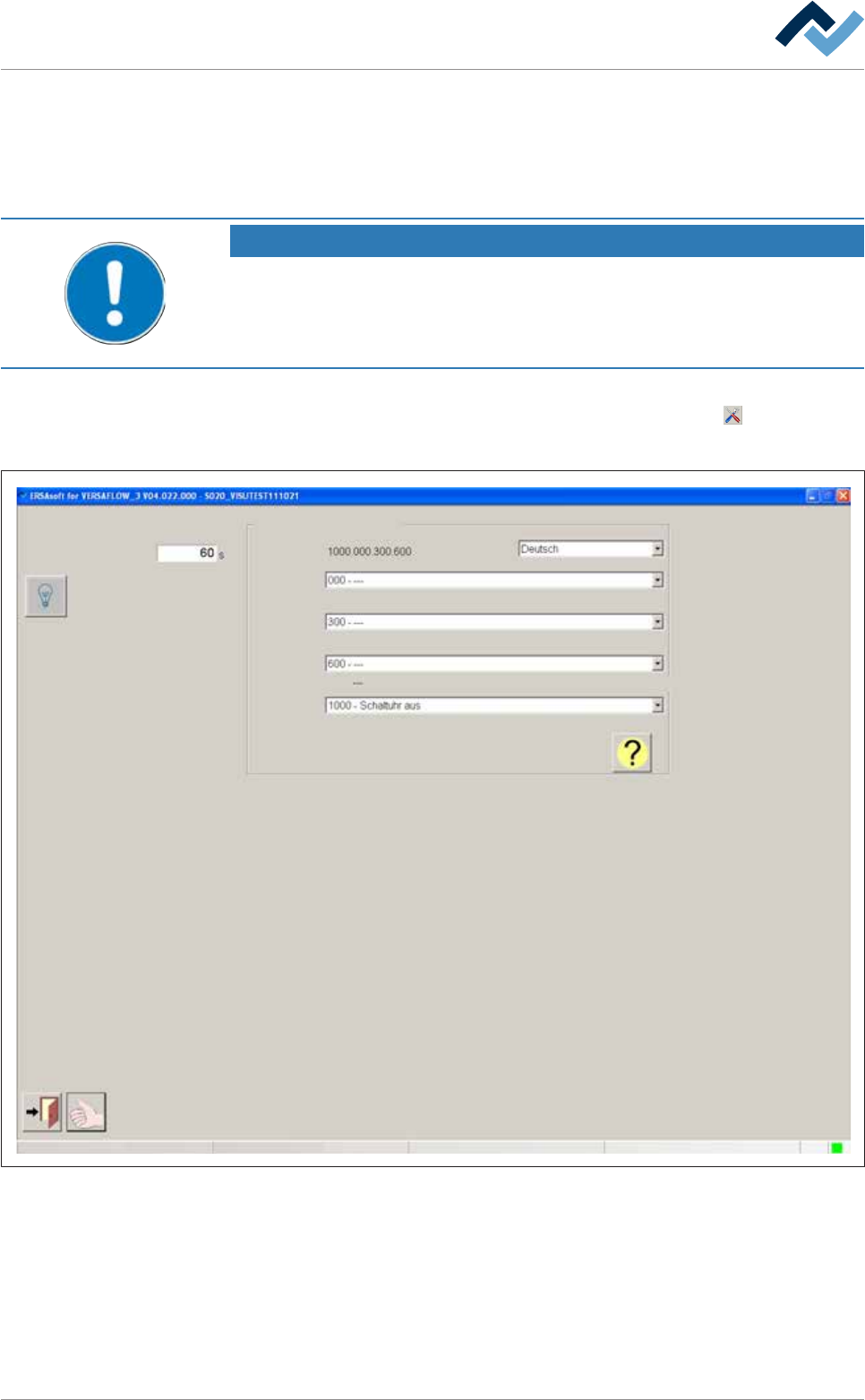

Fig.30: The [Messages] settings dialog
Acoustic signal of a message
ü To set the horn signal time:
a) Click on the [Max duration signal horn on] input field.
b) Enter a value in seconds. The setting range is [0] ...[100000] seconds. If the
time entered is outside this range, an error message appears.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 156/695
6|Function description
ð The time has been set. If a message is displayed, the horn will signal it for the
time set.
ü Accept settings, close dialogs
a) Click on
to accept a setting.
b) Click on
to close a dialog.
Lamp test
ü Testing the lamps and the horn:
a) Click on the
button.
ð All lights of the signal lamp must be lit. The horn must sound.
The [Search for message text] frame
The [Search for message text] frame is used for service and allows the service per-
sonnel to specifically look for a help text for a displayed message.
ü To select a second language:
a) Select a second language in the dropdown menu.
ð The selected message text is displayed in a second language.
ü To display a message help text:
a) Select a message from the dropdown menu.
b) Click on the
button.
ð If a help text is available for a message, the former is displayed in a new win-
dow.
