9|Spare and wear parts 9.5.2.8 Second stopper right, (segmented preheating) Overview Fig.253: EM113-37-03-00 Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 532/695
9|Spare and wear parts

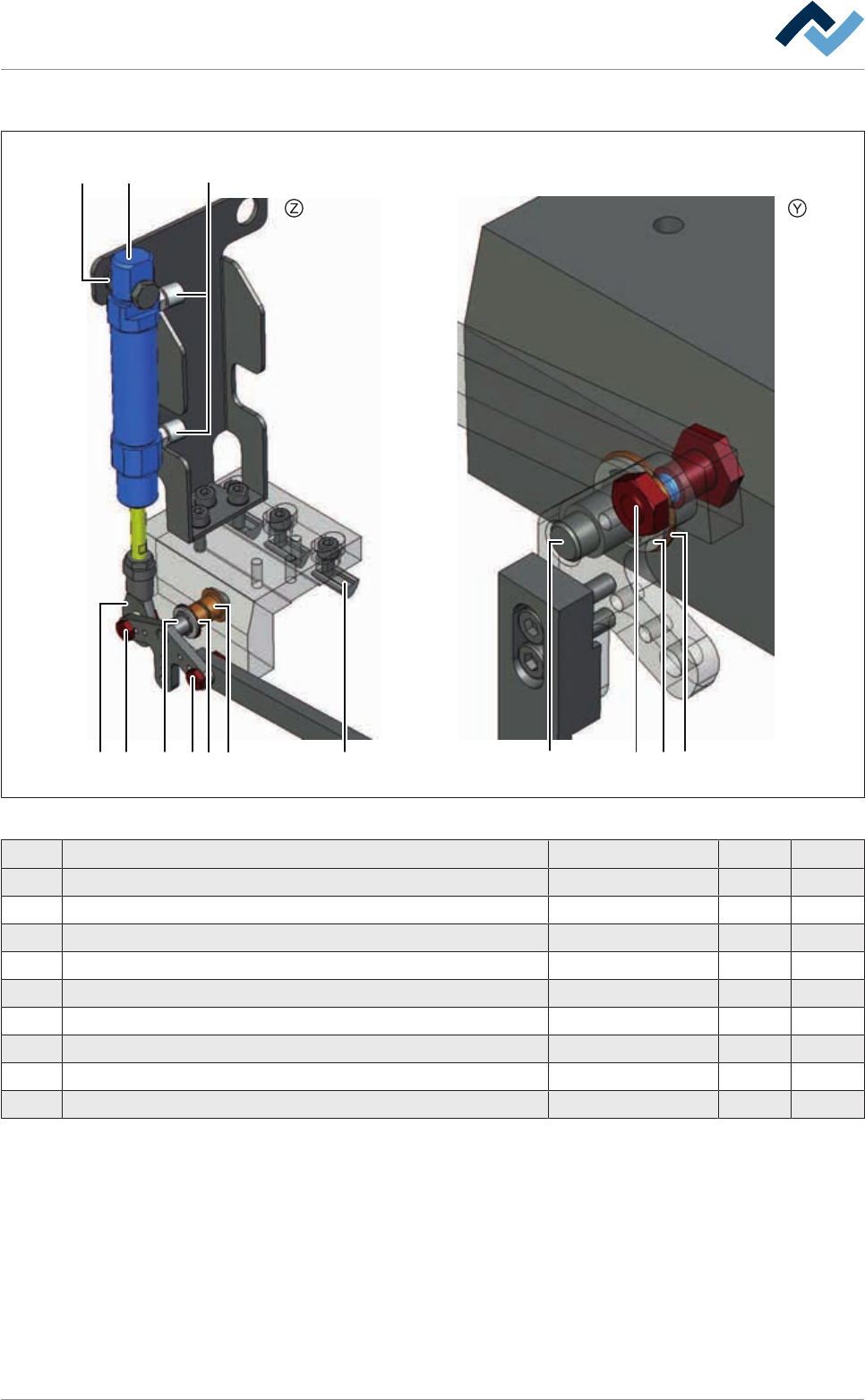

Second stopper left, (segmented preheating), view [Y], [Z]
1
2
89
3
4
7 7 65
7
4
6
5
Fig.252: EM113-37-04-00a
Pos Designation Item number A B
1 Joint clip 170367 x
2 Swivel head M6 170366 x
3 Groove nut STM5 6ZIS049 x
4 Washer 8/14X1,0 DIN988 6SA08X1.00 x
5 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
6 Collar bush 143513 x
7 Pan head screw M5 170207 x
8 Straight screwing M5, stainless stell 97965 x
9 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant 85950 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 531/695
9|Spare and wear parts
9.5.2.8 Second stopper right, (segmented preheating)
Overview
Fig.253: EM113-37-03-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 532/695
9|Spare and wear parts
Second stopper right, (segmented preheating), view [Y], [Z]
1
2
8
4
57
3
66
9
7
7 4 65
Fig.254: EM113-37-03-00a
Pos Designation Item number A B
1 Joint clip 170367 x
2 Swivel head M6 170366 x
3 Groove nut STM5 6ZIS049 x
4 Washer 8/14X1,0 DIN988 6SA08X1.00 x
5 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
6 Collar bush 143513 x
7 Pan head screw M5 170207 x
8 Straight screwing M5, stainless stell 97965 x
9 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant 85950 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 533/695
