4|Transport, installation, storage, disposal
ü To preadjust the adjustment feet:
a) Loosen and remove both screws (1).
b) Pull out the internal pipe (2) to adjust the machine height.
DANGER
Risk of accidents!
a) The inner pipe may be pulled out by a maximum of 70 mm!
b) After the upgrade, screw back in again and tighten all screws.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 76/695
4|Transport, installation, storage, disposal
max. 70mm
1
Fig.13: Secure the internal pipe with the two screws
ü To complete the preliminary adjustment:
a) Drive in and tighten the two screws (1).
b) Perform this same procedure on all the adjustment feet.
c) Carefully lower the machine.
d) Refit the casings and close the casing door.
ð The exact setting of the machine height is carried out in the next step.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 77/695
4|Transport, installation, storage, disposal
4.9.4 Aligning the machine
It might be necessary to carry out the alignment of the machine several times.
After an alignment, check the steps that were carried out before and if necessary
adjust the concerned adjustable feet. Continue to align the machine until you have
reached an acceptable result.
ü Roughly aligning the machine with the adjustable feet:
a) Required tools: Precision spirit level, steel rule, open-end wrench.
b) Screw all adjustment feet to the same height with the open-end wrench. In this
case, respect the required infeed and outfeed height.
ü Aligning in a transverse direction:
a) Place the precision spirit level (1) in a transverse direction on the soldering
module (2).
b) Align the machine with the adjustable feet using an open-end wrench.

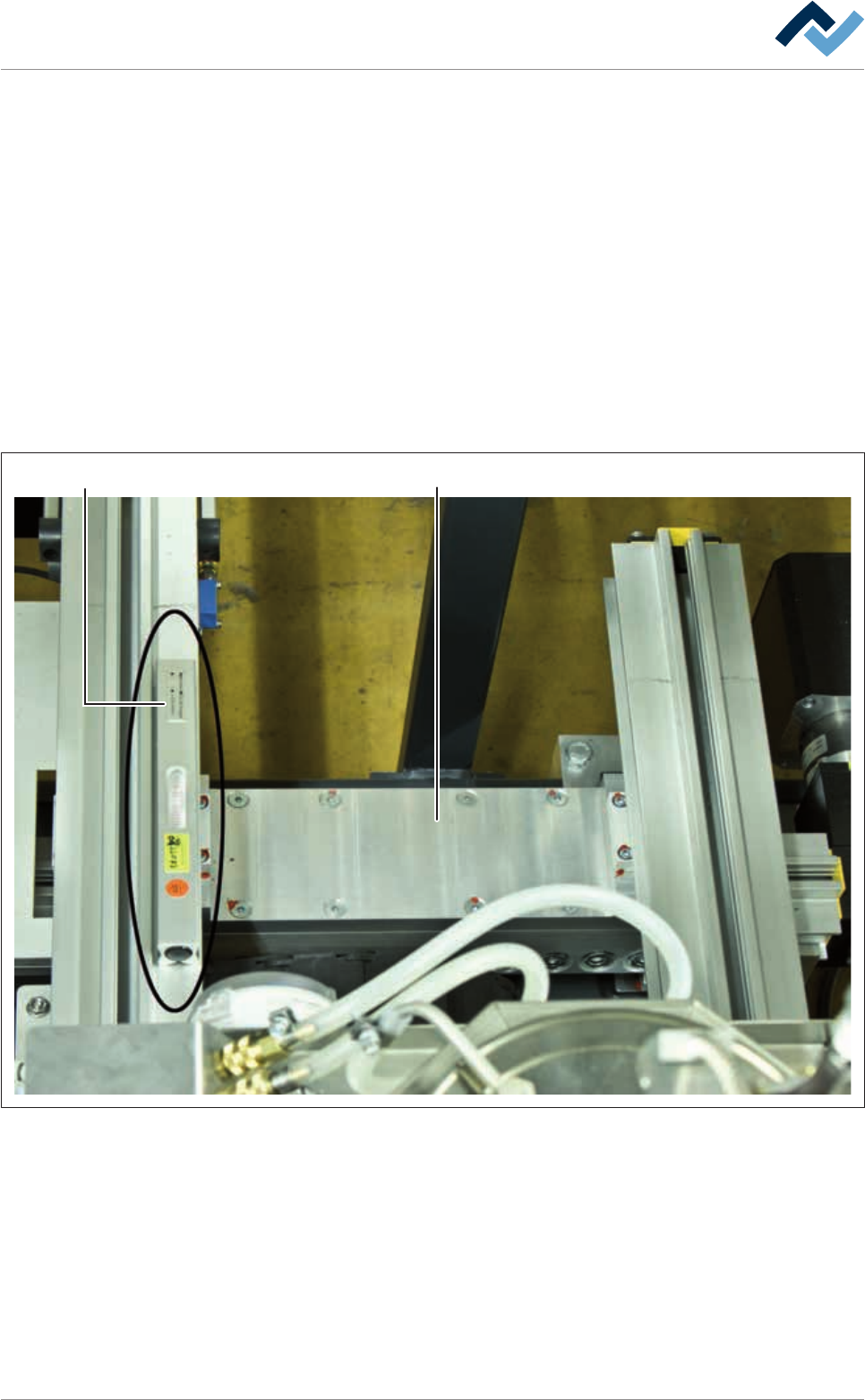

1 2
Fig.14: Aligning in a transverse direction:
ü Aligning in a longitudinal direction:
a) Place precision spirit level (1) in a longitudinal direction on soldering module
(2)
b) Align the machine with the adjustment feet using an open-end wrench.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 78/695
