9|Spare and wear parts Flexible rail 2, (dual track), view [Z] 1 2 4 5 7 3 6 8 8 Fig.280: EM113-339-40-00Aa Pos Description Item number A B 1 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x 2 Coupling Ø 20x30 143509 x 3 …
9|Spare and wear parts

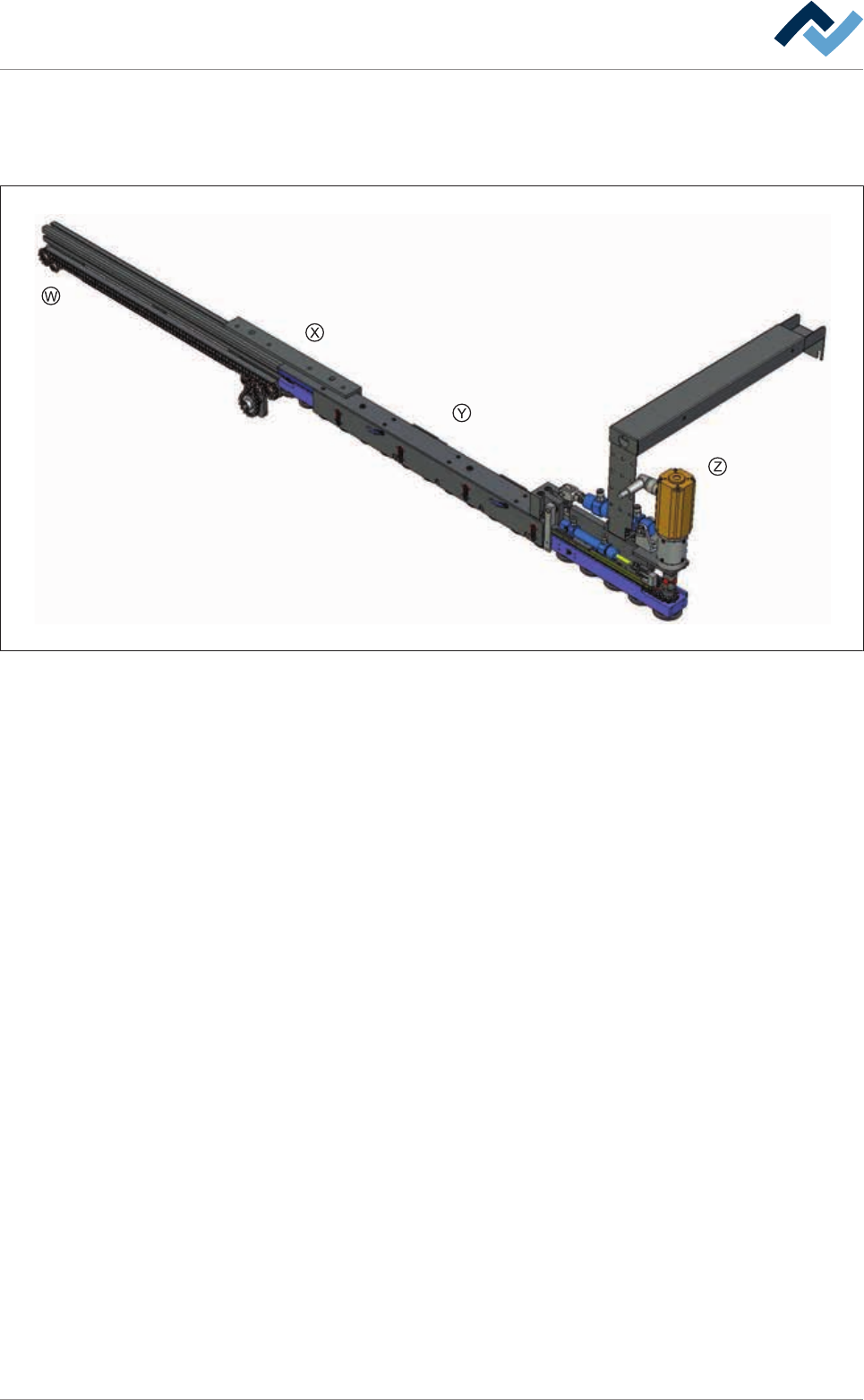

9.5.3.4 Flexible rail 2, (dual track)
Overview
Fig.279: EM113-339-40-00A
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 558/695
9|Spare and wear parts

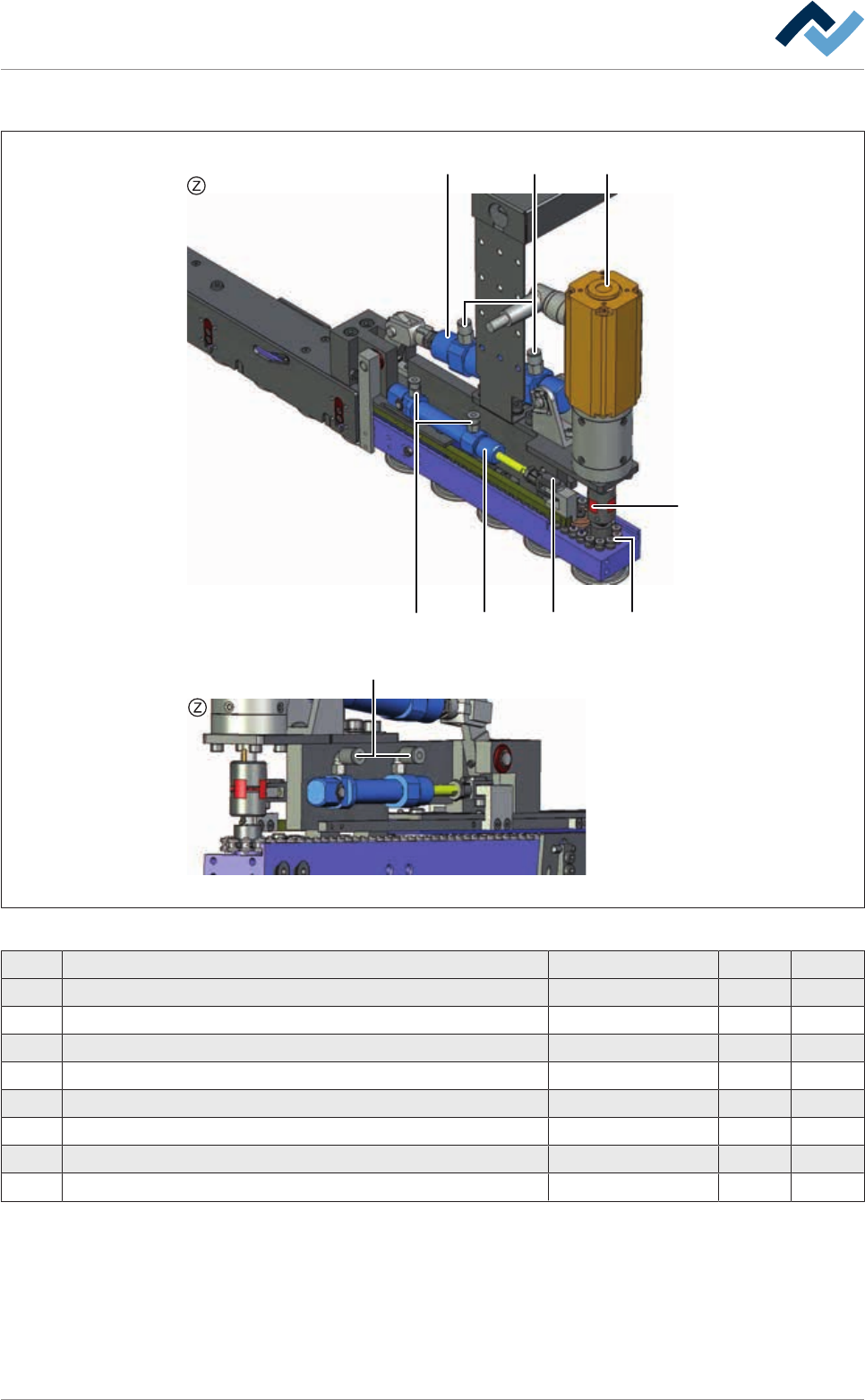

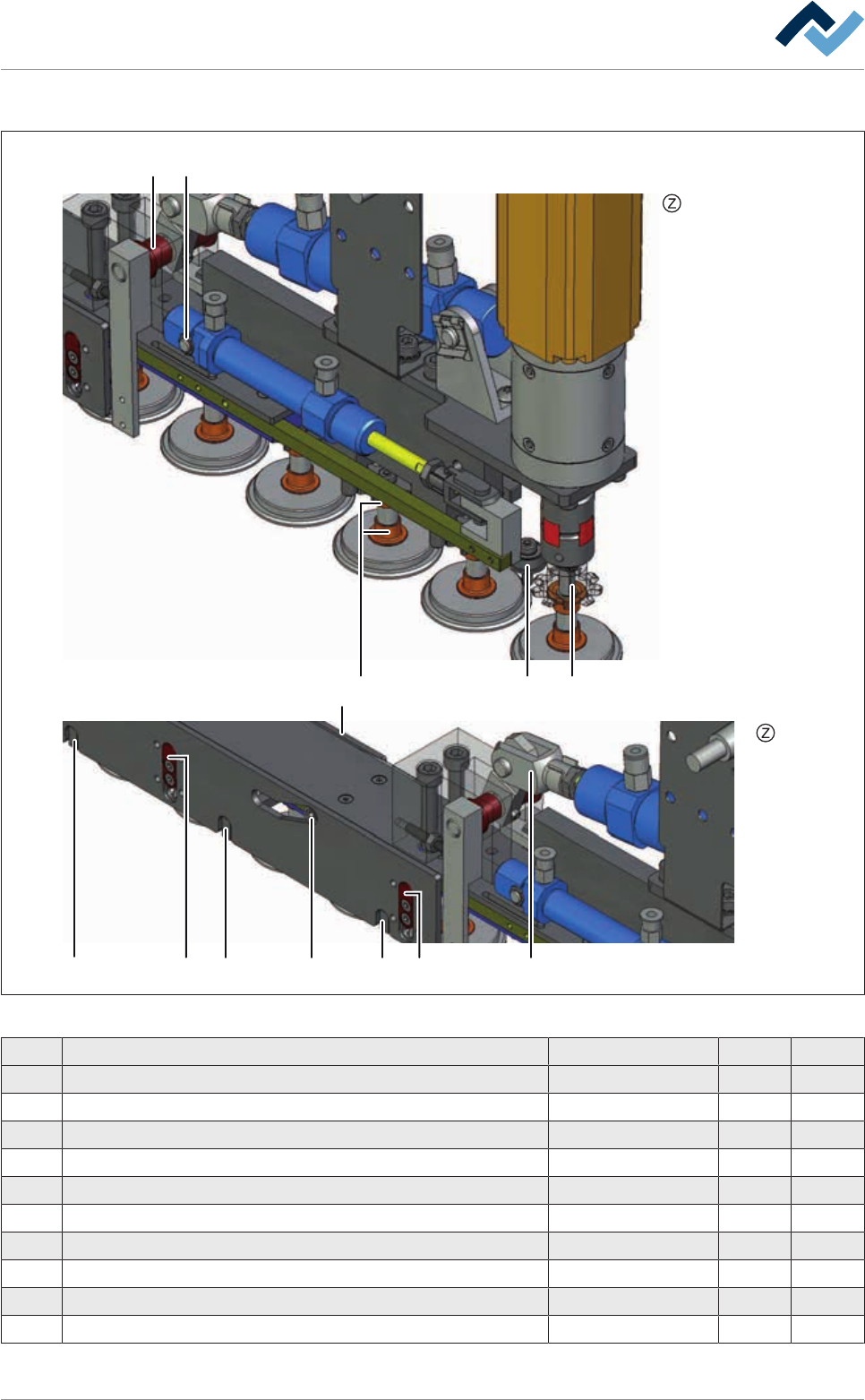

Flexible rail 2, (dual track), view [Z]
1
2
4
5 7
3
68
8
Fig.280: EM113-339-40-00Aa
Pos Description Item number A B
1 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
2 Coupling Ø 20x30 143509 x
3 Plug-in connection Ø4 mm 1/8“ 126744 x
4 Cylinder, 2-acting Ø 20, stroke=25 Temp. resistant 43674 x
5 Cylinder, 2-acting Ø 12, stroke=25 mm 164014 x
6 Fork head G6x12 SL MBO 238057 x
7 Chain G52 05B-1 143514 x
8 Straight plug connection M5, Ø 4 mm 126369 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 559/695
9|Spare and wear parts
Flexible rail 2, (dual track), view [Z]
1
2
10
4
5
8
3
6
5
8
8
7
9
Fig.281: EM113-339-40-00Ab
Pos Description Item number A B
1 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
2 Bearing 6LA624Z x
3 Collar bush 143513 x
4 Flange bushing BP 25 C 08 x 12 x 12 6BUFL08X12X12 x
5 Sliding piece 143664 x
6 Fit screw M4 143665 x
7 Key 143677 x
8 Tappet 143692 x
9 Fork head G6x12 SL MBO 238057 x
10 Feather key DIN 6885 2x2x10 6PSF2X2X10A x
