8|Service and maintenance ð Risk of accident! Always hold bolted removing tools by the upper toggle (A) ! f) Carefully lift the nozzle plate obliquely so that the liquid solder residue can flow into the solder bath. ð …
8|Service and maintenance
Disassembling the nozzle plate
1
2
24
3
7AA
5 6
88
Fig.150: Disassemble the nozzle plate. Always hold bolted removing tools by the upper toggle (A)!
ü To disassemble the nozzle plate:
a) Remove any solder from the baffle frame (1). To do so, open the drain screw
(2) with a socket spanner (3).
b) Unlock all bayonet catches (5) with the socket spanner. Align the bayonet
catches so that the slots of the bolts (5) are parallel to the edges (6) of the
nozzle plate.
c) If necessary, convey any soiling (oxides, dross) into the solder bath using a silic-
one brush (4).
ð As soon as the solder has run out of the baffle frame:
d) Close the drain screw (2) and remove the socket spanner (3).
e) Place the two removing tools (8) on the nozzle plate and lock them.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 404/695
8|Service and maintenance
ð Risk of accident! Always hold bolted removing tools by the upper toggle
(A)!
f) Carefully lift the nozzle plate obliquely so that the liquid solder residue can
flow into the solder bath.
ð Risk of accident! Observe the weight of the nozzle plate!
g) Remove the nozzle plate and place it on a heat-resistant base.
ð The process has now been completed.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 405/695
8|Service and maintenance
Cleaning the nozzle plate
1
5 6
2
2 6
6
6
34

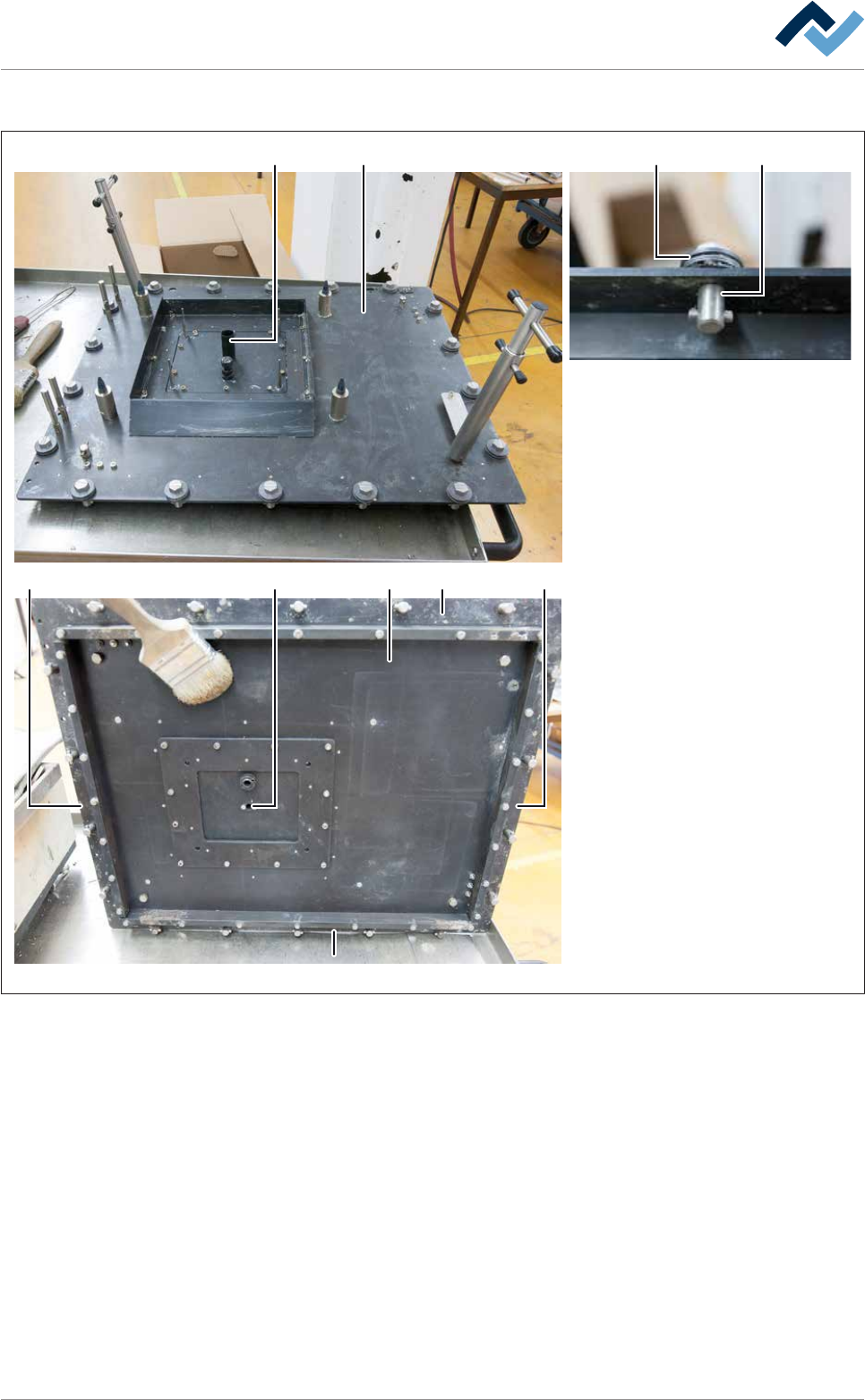

Fig.151: Clean the nozzle plate. In this figure, only one nozzle (2) is present. Your nozzle plate may have several nozzles of different
shapes.
ü To clean the nozzle plate:
ü Please note: The parts coming into contact with solder can be cleaned more
easily as long as they are still hot!
a) Thoroughly clean all bayonet catches (3) and disc springs (4).
ð Bayonet catches and disc springs must be easy to move.
b) Clean the underside (5) of the nozzle plate.
c) Carefully clean sealing surfaces (6)!
ð In the case of soiled nozzles (2).
d) Clean all nozzles (2) inside and outside.
e) Visually inspect the top of the nozzle plate.
