9|Spare and wear parts

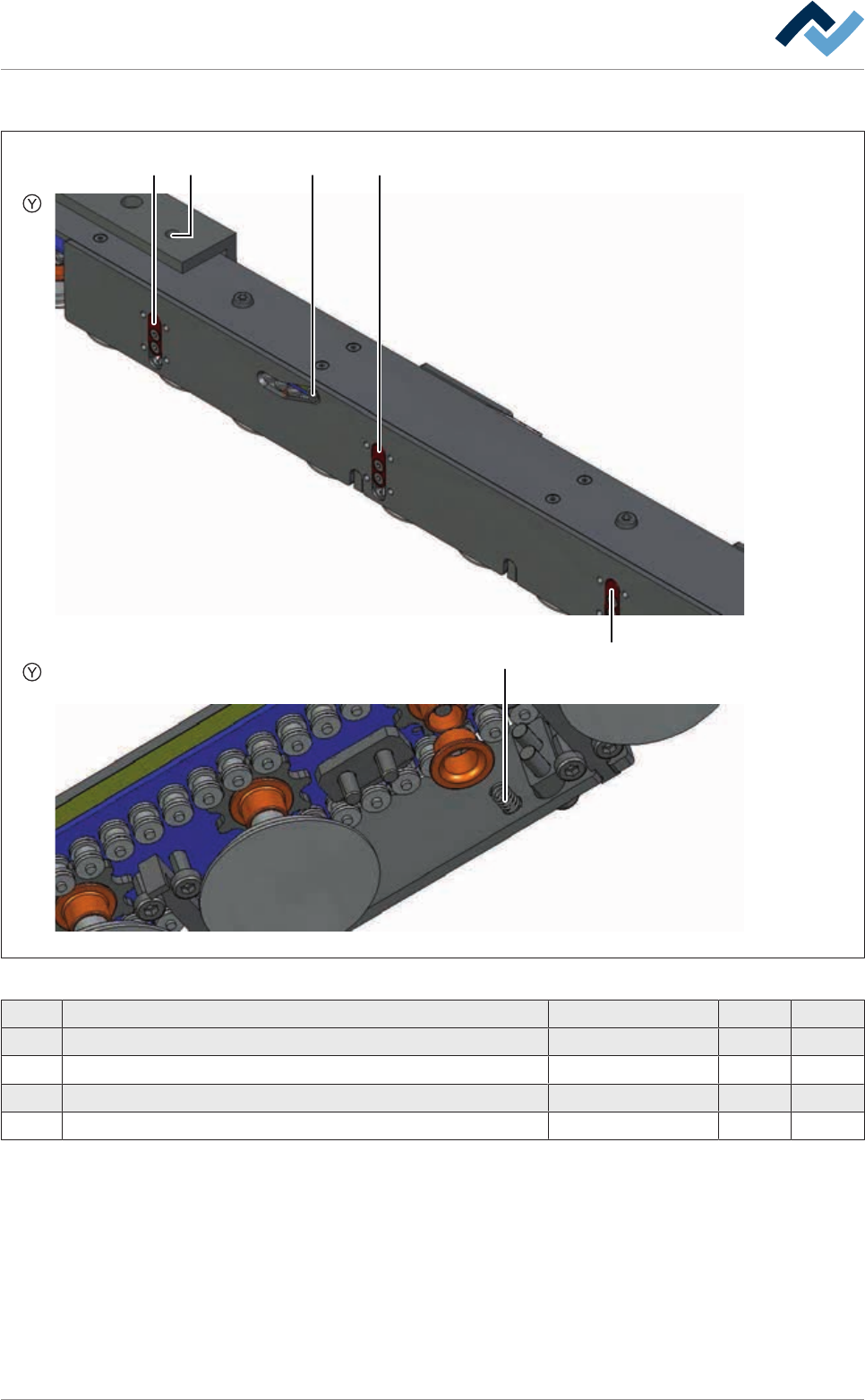

Flexible rail 2, (dual track), view [Y]
1 24
3
1
1
Fig.282: EM113-339-40-00Ac
Pos Description Item number A B
1 Sliding piece 143664 x
2 Fit screw M4 143665 x
3 Spring, stainless steel 6FED078-VD x
4 Fastening angle (roller-chain conveyor) 170777 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 561/695
9|Spare and wear parts

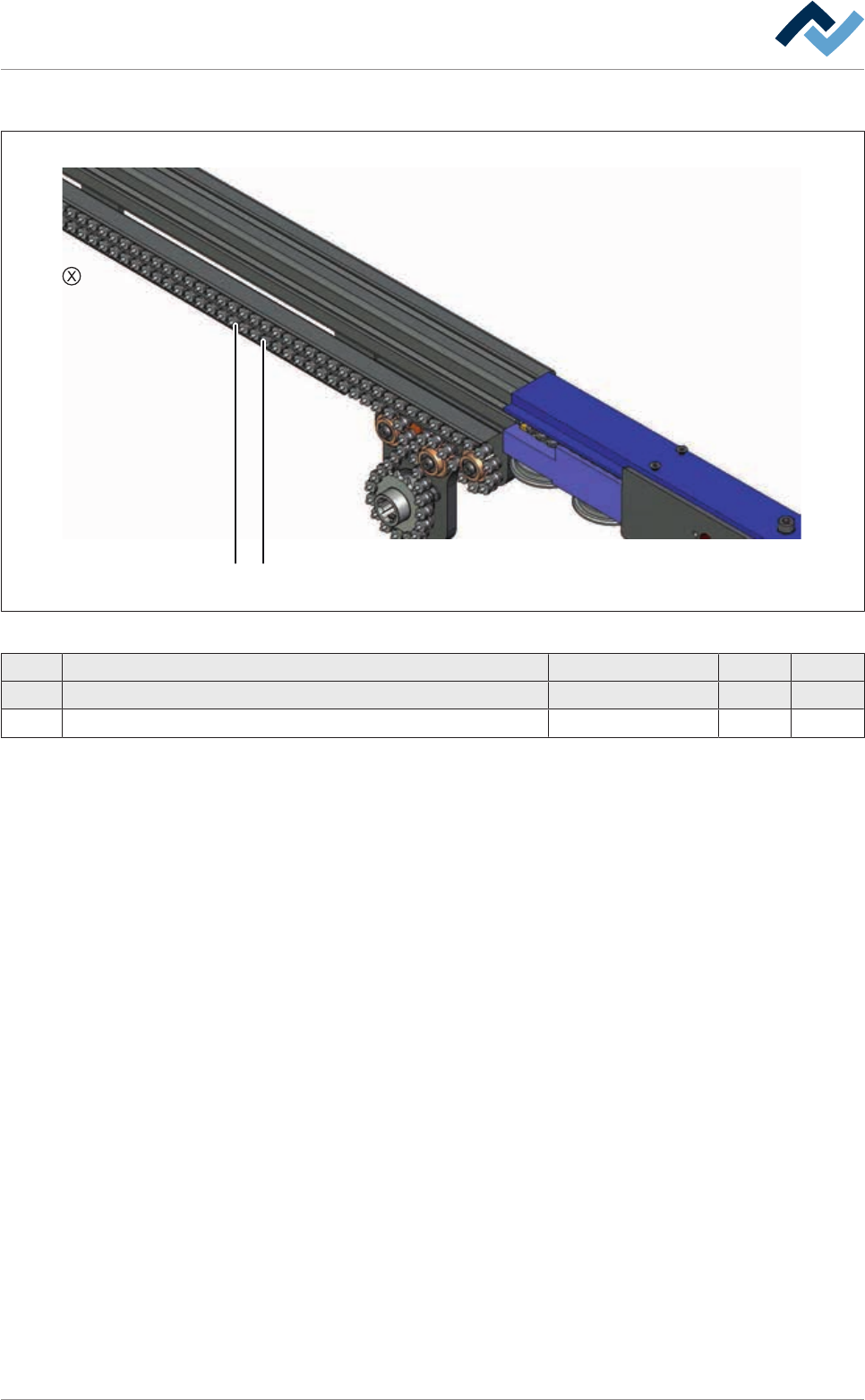

Flexible rail 2, (dual track), view [X]
1 2
Fig.283: EM113-339-40-00Ad
Pos Description Item number A B
1 Conveyor chain, 3 mm pins, bulk stock 208821 x
2 Chain joint 3 mm 208824 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 562/695
9|Spare and wear parts
Flexible rail 2, (dual track), view [X]
1 2
45
73
6
Fig.284: EM113-339-40-00Ae
Pos Description Item number A B
1 Pressure spring VD-177 143511 x
2 Chain guide, fixed 143645 x
3 Distance bush 108981 x
4 Bearing 6LA624Z x
5 Deflection disk 143668 x
6 Chain guide, fixed, adjustable 143673 x
7 Sliding piece, redirection 143640 x
