6|Function description
– [Waiting time congestion successor] (N+1) shows the delay time up to counter
start.
An example:
ü The [Waiting time while production mode] (N-1) delay time shall be 3 seconds.
a) Enter value 3 in the input field.
ð If the upstream system delivers no more boards, the above time begins to run.
If after 3 seconds still no PCBs are available at the infeed, the [Waiting time
while production mode] time is started in the [Running times] frame.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 224/695
6|Function description
6.13.2 The soldering report
This function allows a precise logging and documentation of the entire production
process. You can monitor and export the data of a manufacturing batch. You can
have a separate process data file generated automatically for each PCB of a series.
Opening the dialogue
ü Opening the [Soldering report] edit dialogue:
a) Activate the [Soldering report] radio button in the [Soldering report and oper-
ating data] edit dialogue.
ð The machine soldering report is displayed:
Soldering report and operating data Soldering report
Soldering reportSelection
Soldering report
Operating data
Set value
Actual value
File name
user:
Service
Maintenance mode
Serial board number
Library
Program
Error
Number
Running in moment
Running out moment
Conveyor width [mm]
Time in fluxer unit [s]
Flux head 1 active
consumption Flux head 1
Time in preheat unit 11 [s]
Temp. in upper preheat unit 11 [°C]
Temp. in lower preheat unit 11 [°C]
No. PH repetitions preheat unit 11
Time in soldering unit 1 [s]
Fig.56: The soldering report. In this dialog, the soldering report is shown in tabular form.
NOTE
Are any changes possible?
The [Set value pages] user rights are required to access this dialog. Settings can only
be displayed if no name and password are logged in. In this case, press the [ESC] key
on your keyboard, or click on the button [Cancel] when a password is required.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 225/695
6|Function description

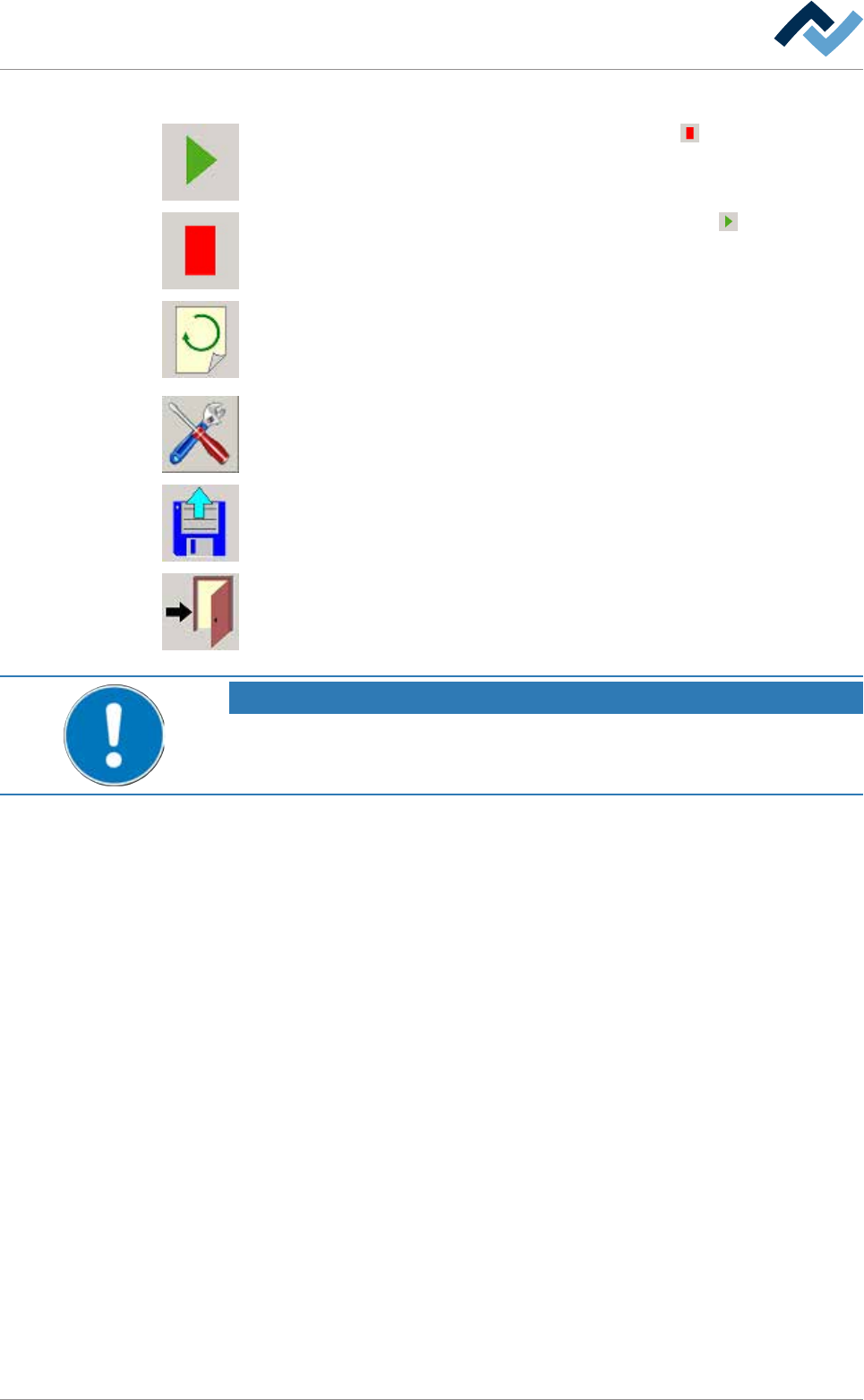

The bottom toolbar contains the following buttons:
Start recording. During recording, the button changes into . In the [Automatic
mode] operating mode, recording cannot be started!
Stop recording. If recording is stopped, the button changes into .
It updates the display of the soldering report. The display of the soldering report is
static and always applies to the board which the machine has just fed out. The dis-
play must be updated as soon as the next board has left the machine. To update,
click on these buttons.
It opens the [Soldering report] setting dialog. During the recording of the soldering
report, this button is not available.
It imports saved soldering reports and shows them.
It closes the dialog.
NOTE
How are set values and actual values displayed?
Set values are always highlighted in white in this dialog, actual values in yellow.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 226/695
