9|Spare and wear parts

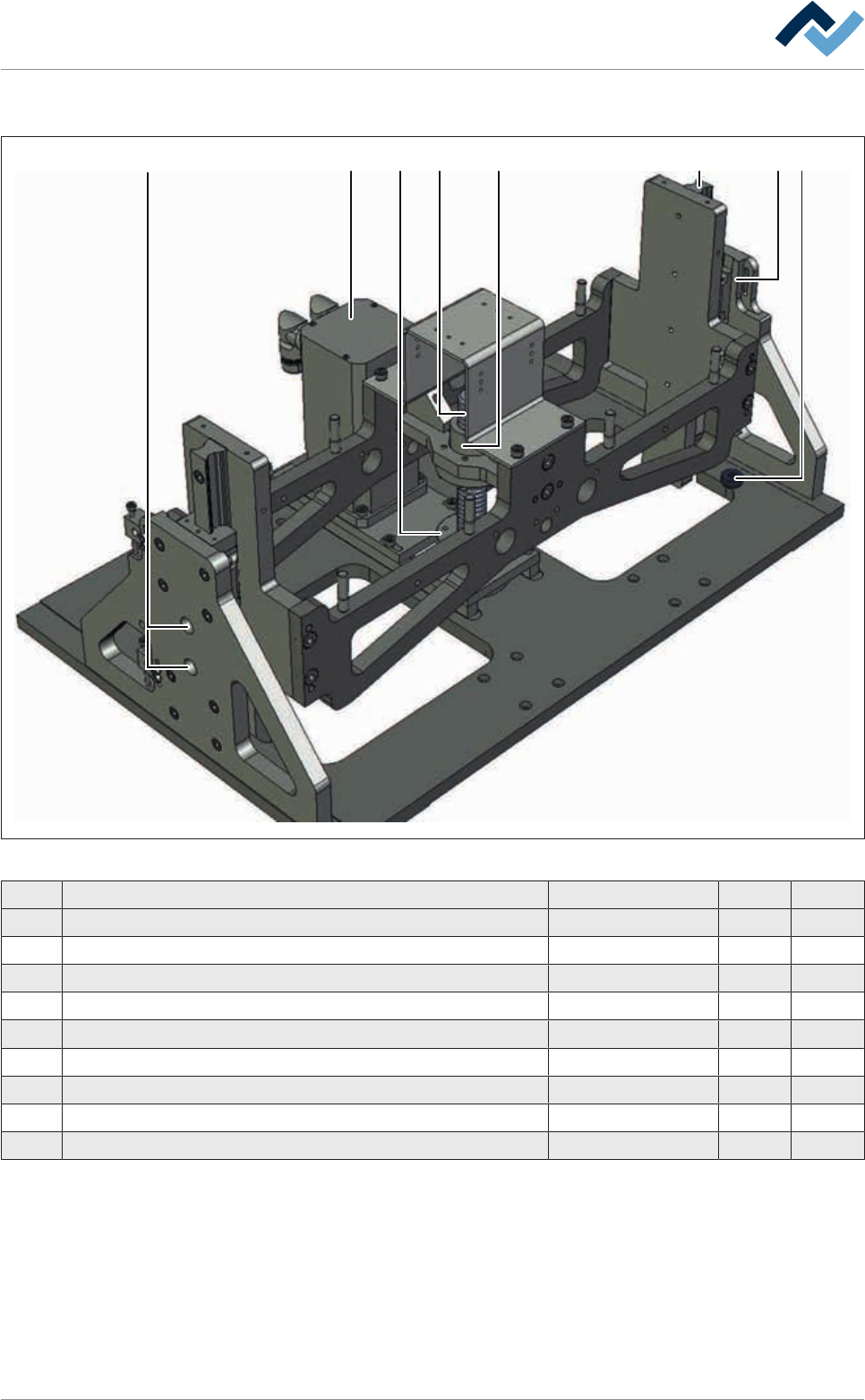

9.4.4 Z-axis double pot (dual track)
21 738 5 64
Fig.209: EM113-29-01-00
Pos Designation Item number A B
1 Guide rail, L = 308 mm 142681 x
2 Guide wagon 149199 x
3 Solid mounting 114287 x
4 Servo drive with resolver 23567 x
5 Lifting spindle, complete, 25 x 5 * 142731 x
6 Ball nut * 155072 x
7 Rubber bumper 121899 x
8 Grease nipple, 90° 6SCHMNI6X1-90 x
* Only deliverable together
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 483/695
9|Spare and wear parts

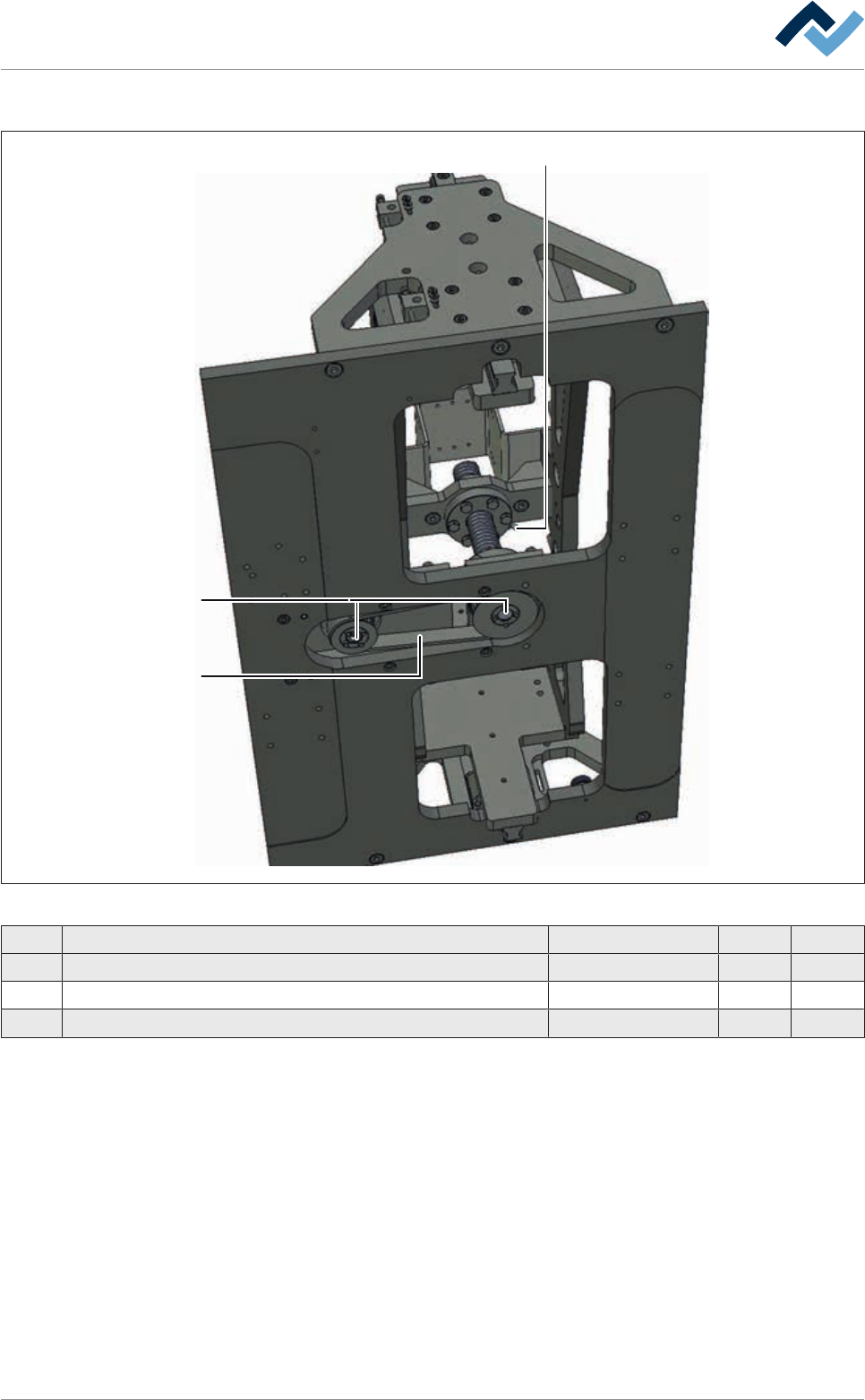

Z-axis double pot (dual track)
1
2
3
Fig.210: EM113-29-01-00a
Pos Designation Item number A B
1 Tooth belt 425-5M-15 6ZR0425-5M-15 x
2 Tensioning kit 112207 x
3 Grease nipple 89042 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 484/695
9|Spare and wear parts

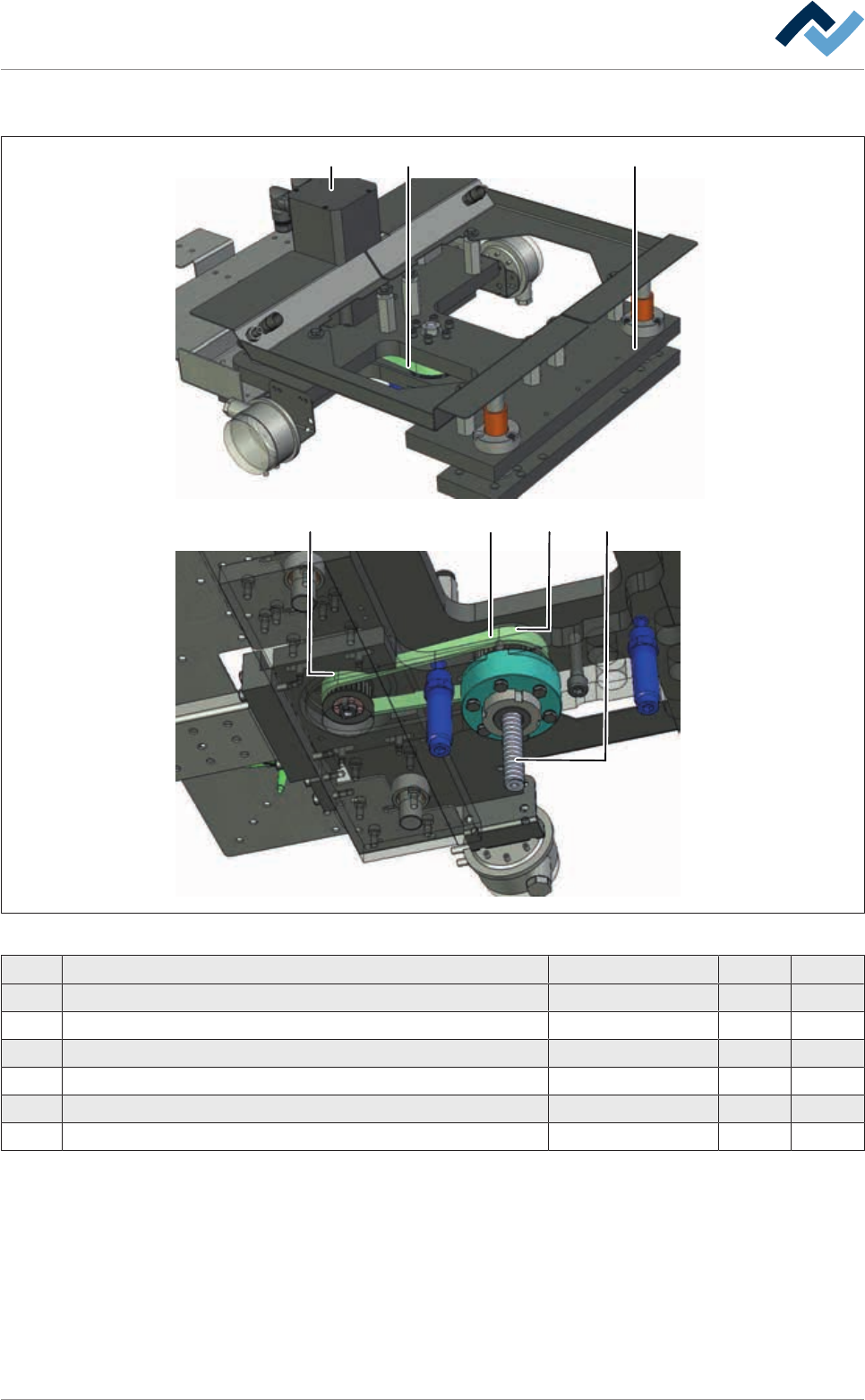

9.4.5 Z-axis excenter solder pot (fix, single track)
1
2
4
2
21
1
3
Fig.211: EM113-21-01-00
Pos Description Item number A B
1 Tooth belt 425-5M-15 6ZR0425-5M-15 x
2 Tensioning kit 112207 x
3 Servo drive with resolver 23567 x
4 Lifting spindle, complete * 209659 x
5 Ball nut * 184736 x
* Cannot be shipped separately
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 485/695
