9|Spare and wear parts
Flexible rail 1, (single track), view [Y], [X]
123
4
Fig.231: EM113-333-20-00c
Pos Designation Item number A B
1 Circlip A 17 DIN 471 6SER-A170471 x
2 Bearing 6LA619032RS x
3 Spring 6FEDZ-094I x
4 Triflex Chain, size 40 171388 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 506/695
9|Spare and wear parts
Flexible rail 1, (single track), view [Z]
1 2 4 531 2 1 2
Fig.232: EM113-333-20-02-00
Pos Designation Item number A B
1 Excentric pressing unit with chamfer 231535 x
2 Pan head screw M5 with shoulder, Ø 7,9 230071 x
3 Fork head 6BO232 x
4 Cylinder, Ø 16, stroke =20 mm 144377 x
5 Angular swivel screw connection 6BO375 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 507/695
9|Spare and wear parts

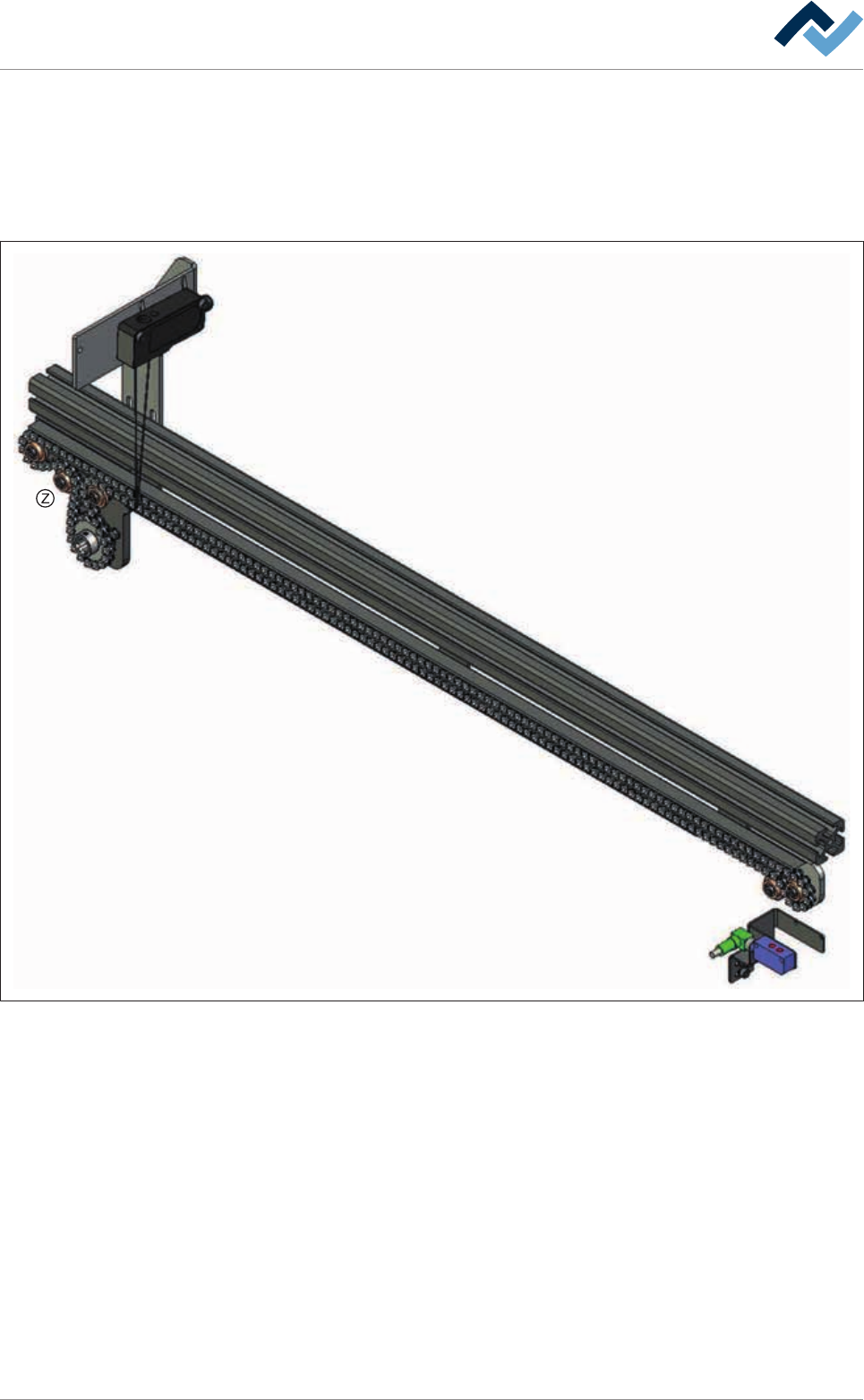

9.5.1.3 Fixed rail 2, (dual track)
Overview
Fig.233: EM113-333-30-00
