9|Spare and wear parts

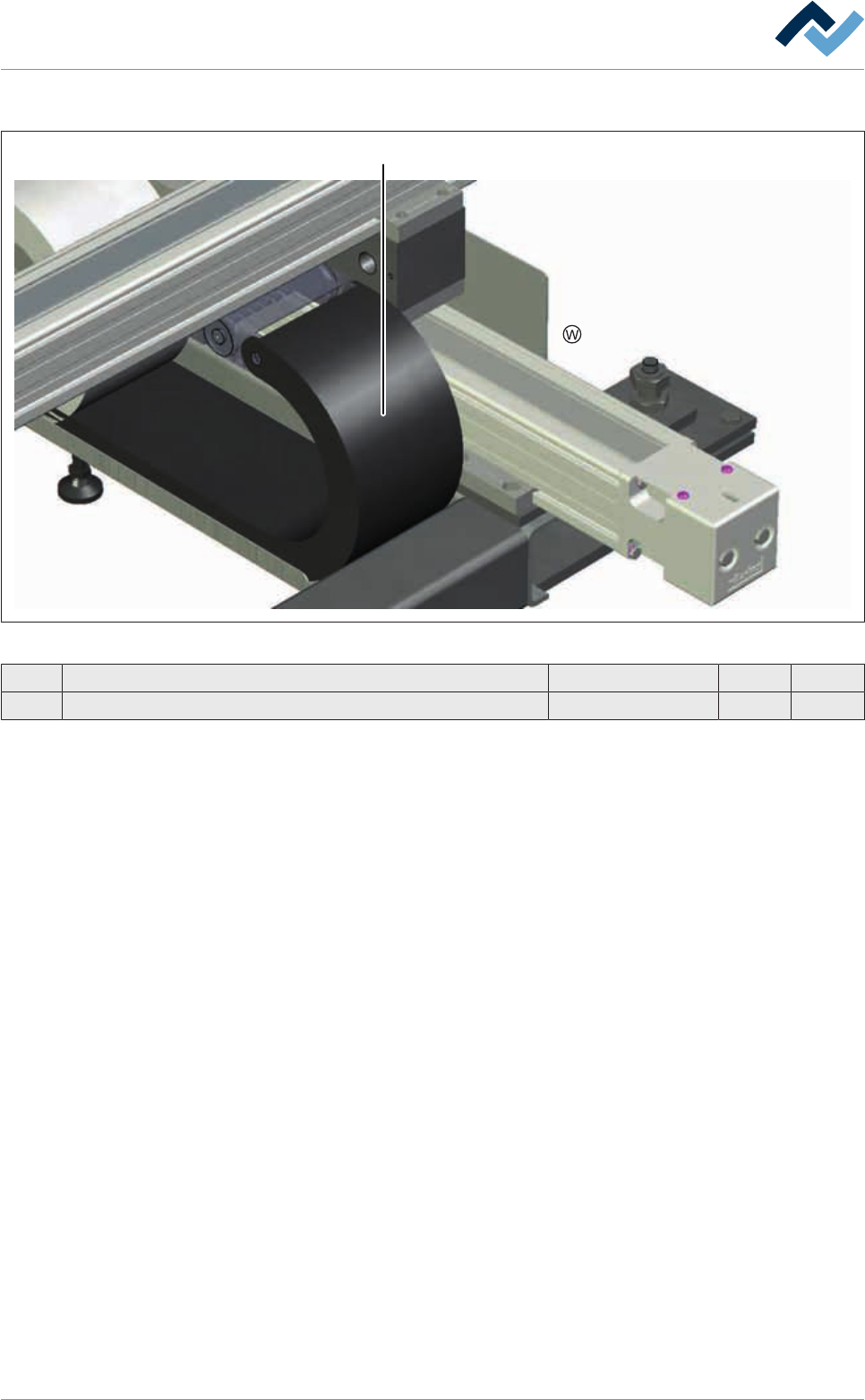

Excentric solder pot positioning system, y-variable, view [W]
1
Fig.221: EM113-23-00c
Pos Description Item number A B
1 Energy chain 139290 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 495/695
9|Spare and wear parts

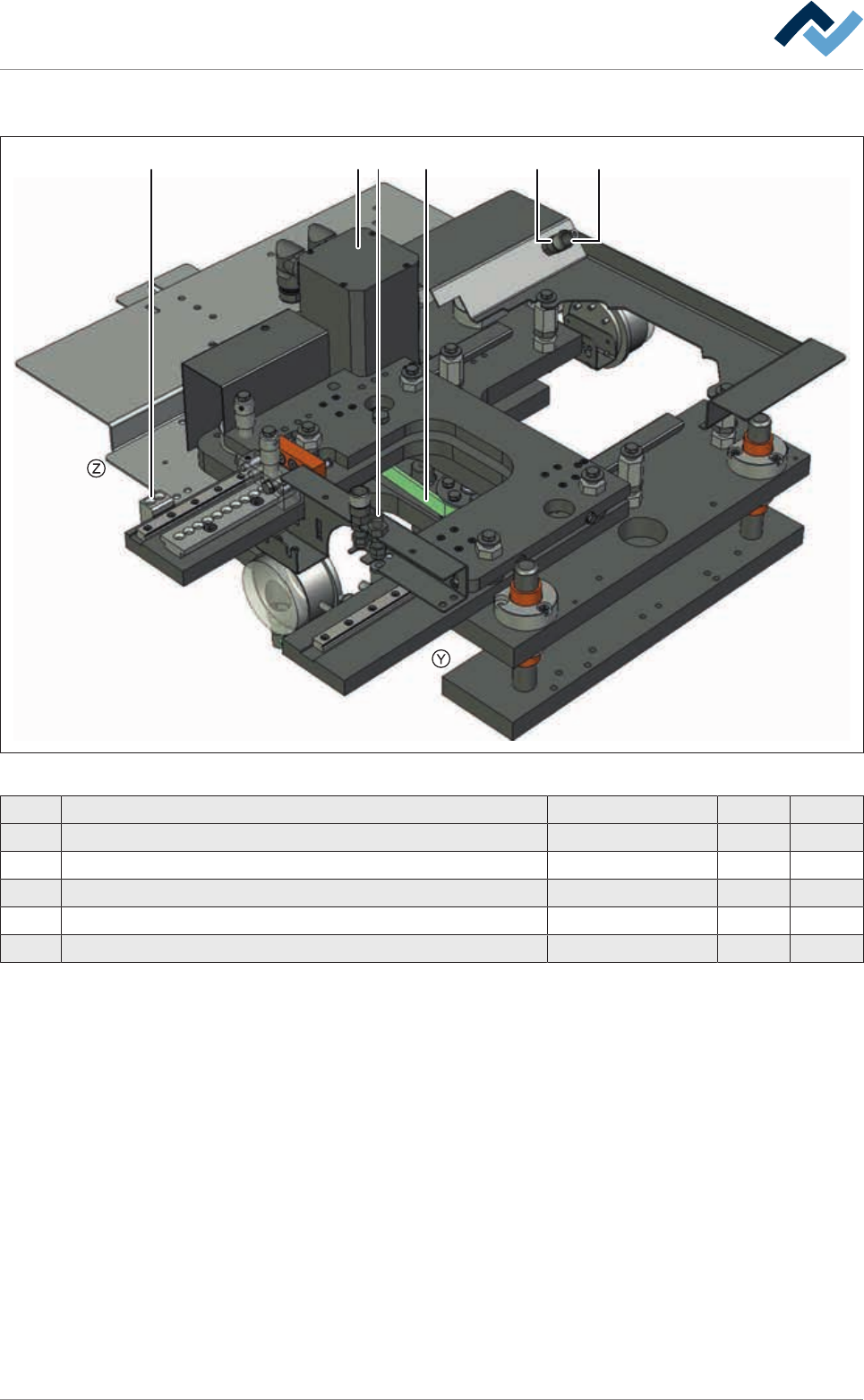

9.4.9 Z-axis excenter solder pot, y-variable
1 2 443 5
Fig.222: EM113-23-01-00
Pos Description Item number A B
1 Fixing block 190486 x
2 Tooth belt 425-5M-15 6ZR0425-5M-15 x
3 Servo drive with resolver 23567 x
4 Connector, M10 x 1 182134 x
5 Coupling M10 x 1 182135 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 496/695
9|Spare and wear parts

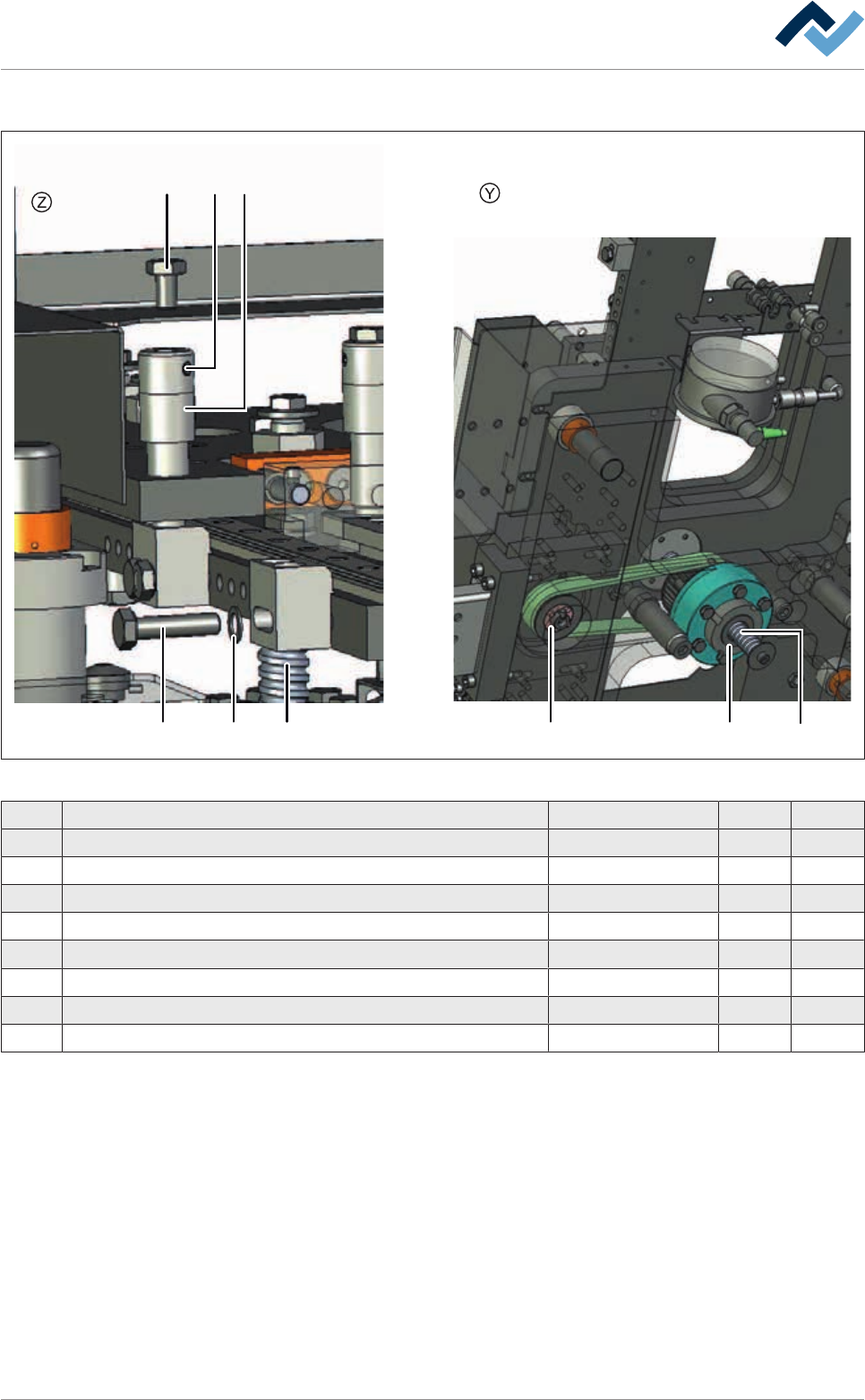

Z-axis eccentric solder pot, y-variable, view [Y], [Z]
1 5
1 7 2
3
43
6
Fig.223: EM113-23-01-00a
Pos Description Item number A B
1 Hexagonal screw M6 6M06X025E0933 x
2 Tensioning kit 112207 x
3 Lifting spindle, complete * 209659 x
4 Ball nut * 184736 x
5 Positioning bolt * 192581 x
6 Set screw 6M04X004E0916 x
7 Locking ring 111800 x
* Cannot be shipped separately
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 497/695
