4|Transport, installation, storage, disposal 4.7 Transporting the unpacked machine 4.7.1 Transport with a forklift DANGER Severe or fatal injury due to oveturning machine! a) The forklift must meet the minimum requirem…
4|Transport, installation, storage, disposal
4.6 Remove the transport locks
WARNING
Suspended load! Risk of injury if the load falls!

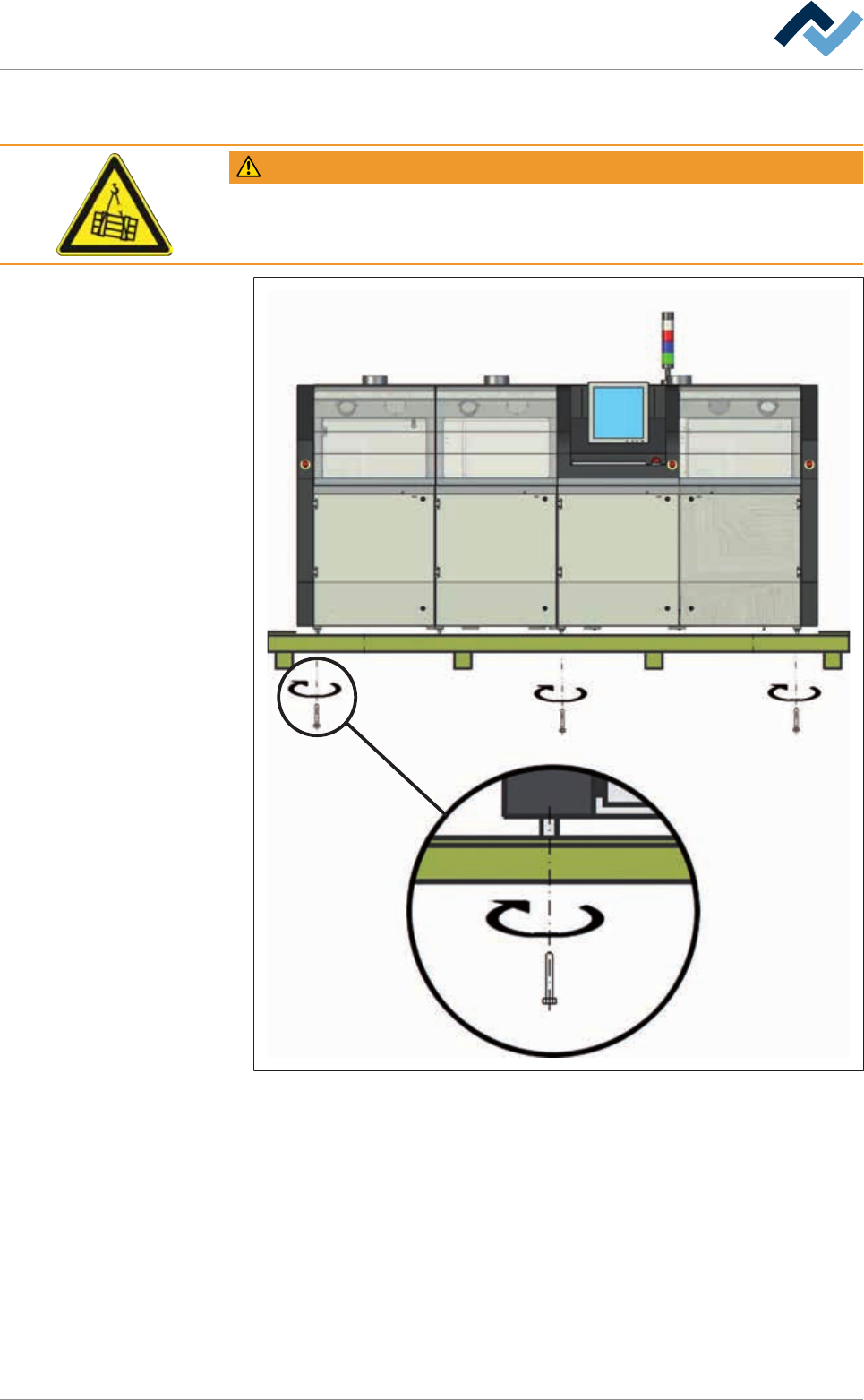

Fig.9: Transport locks
The frame of the machine is bolted to the pallet for transport protection.
ü Removing the transport locks:
a) lift the pallet with the forklift and secure the load against falling.
b) Remove all transport locks.
c) Do not stand or walk under suspended loads.
d) Lower the pallet again.
ð Now the machine can be lifted without the pallet.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 70/695
4|Transport, installation, storage, disposal
4.7 Transporting the unpacked machine
4.7.1 Transport with a forklift
DANGER
Severe or fatal injury due to oveturning machine!
a) The forklift must meet the minimum requirements!
b) Lift the machine always in the center of gravity!
Transport the machine safely
ü Safe machine transport:
a) always lift the load in the middle of the centre of gravity.
ð The designated lifting points are provided with red markings.
b) Always use the marked lifting points to raise the machine!
c) For this purpose, please consider the next figure!

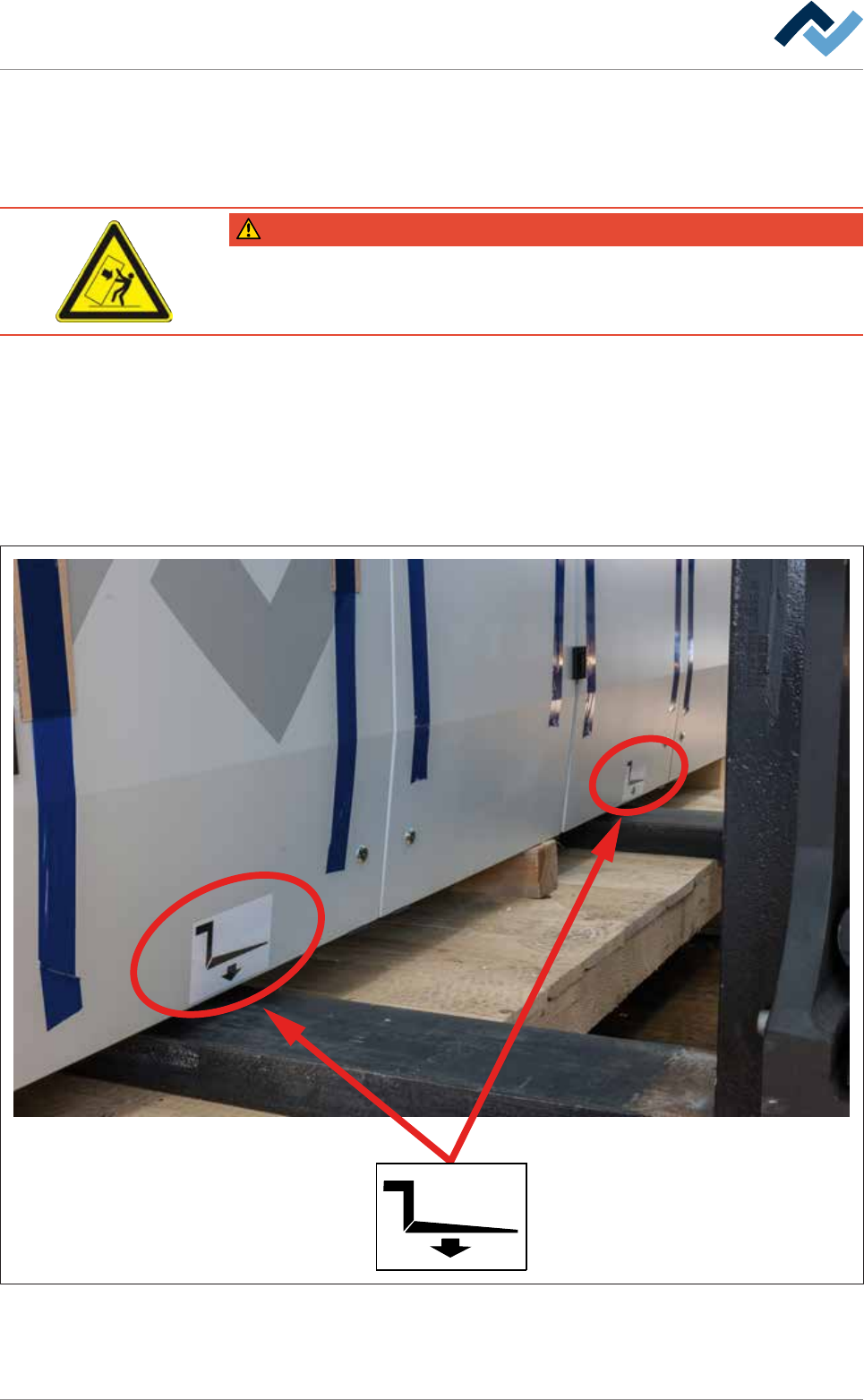

Fig.10: Transport with a forklift
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 71/695
4|Transport, installation, storage, disposal
4.8 Screw in the adjustable feet.
The adjustable feet are supplied with the machine
ü Screw in the adjustable feet:
a) lift the machine with a forklift and secure the load against falling.
b) Screw in all the adjustable feet.
c) Do not stand or walk under suspended loads.
d) All adjustable feet must be set approximately to the same height.
e) Lower the machine again.
ð The process has now been completed.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 72/695
