9|Spare and wear parts
9.9.1.6 DIP soldering unit lifting system

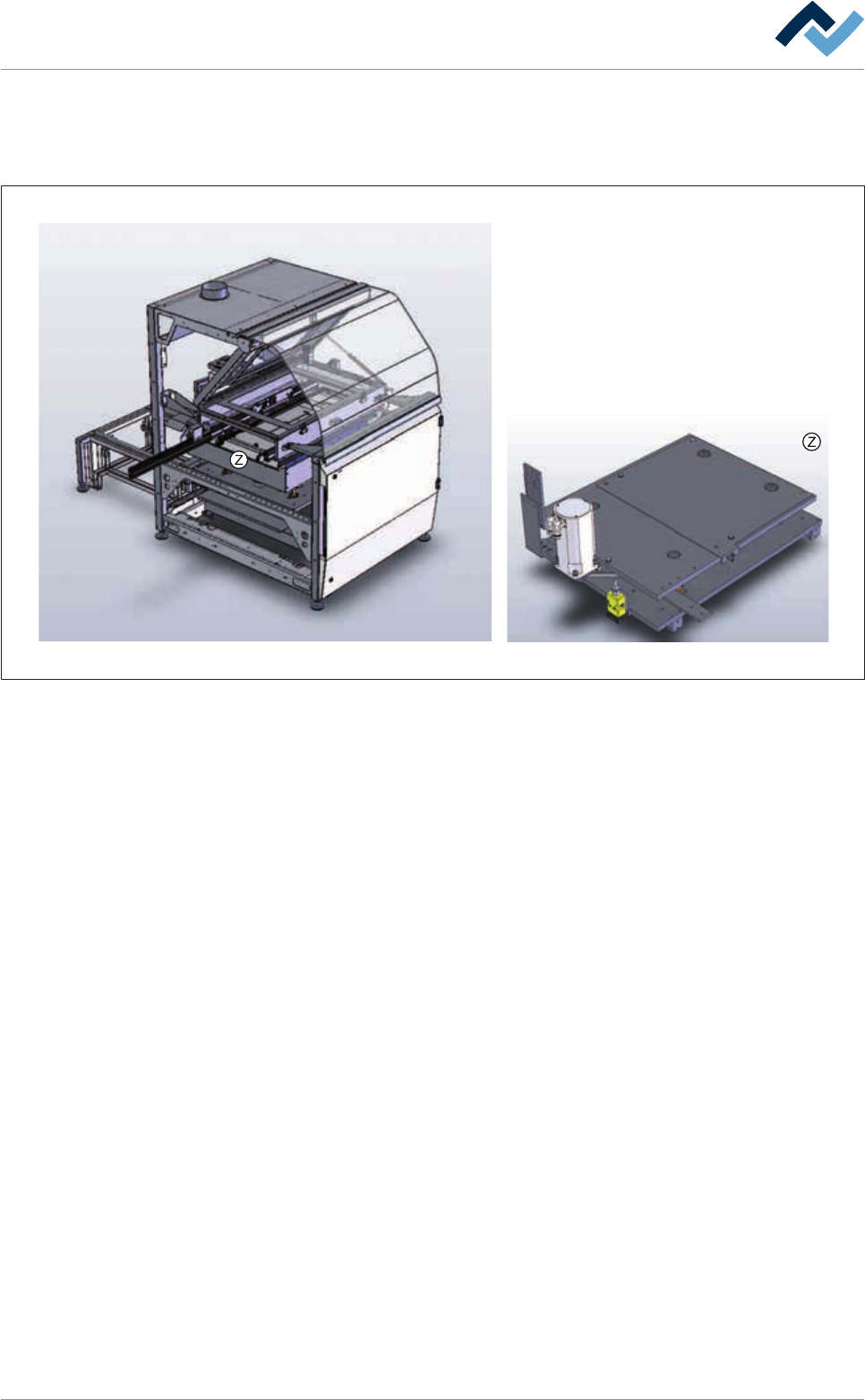

Overview
Fig.355: EM47-22-02-00A
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 639/695
9|Spare and wear parts

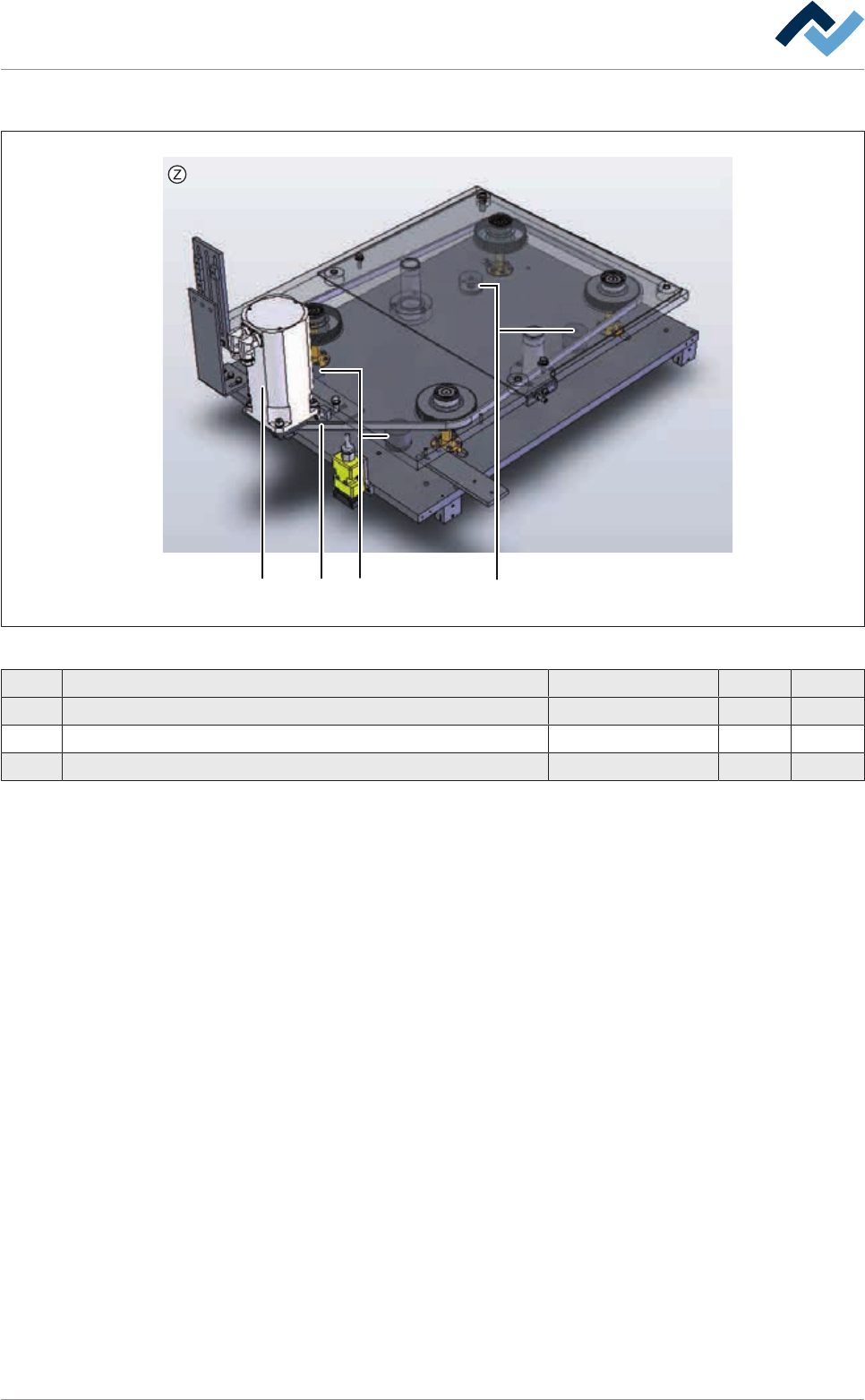

DIP solder pot lifting system, view [Z]
1
2 3
3
Fig.356: EM47-22-02-00Aa
Pos Designation Item number A B
1 Servo drive with resolver 23572 x
2 Tooth belt 2250-5M-15 6ZR2250-5M-15 x
3 Rubber-metal buffer 6GUMPUF50302 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 640/695
9|Spare and wear parts
9.9.1.7 DIP soldering unit pump
1
2
4
5
3
6

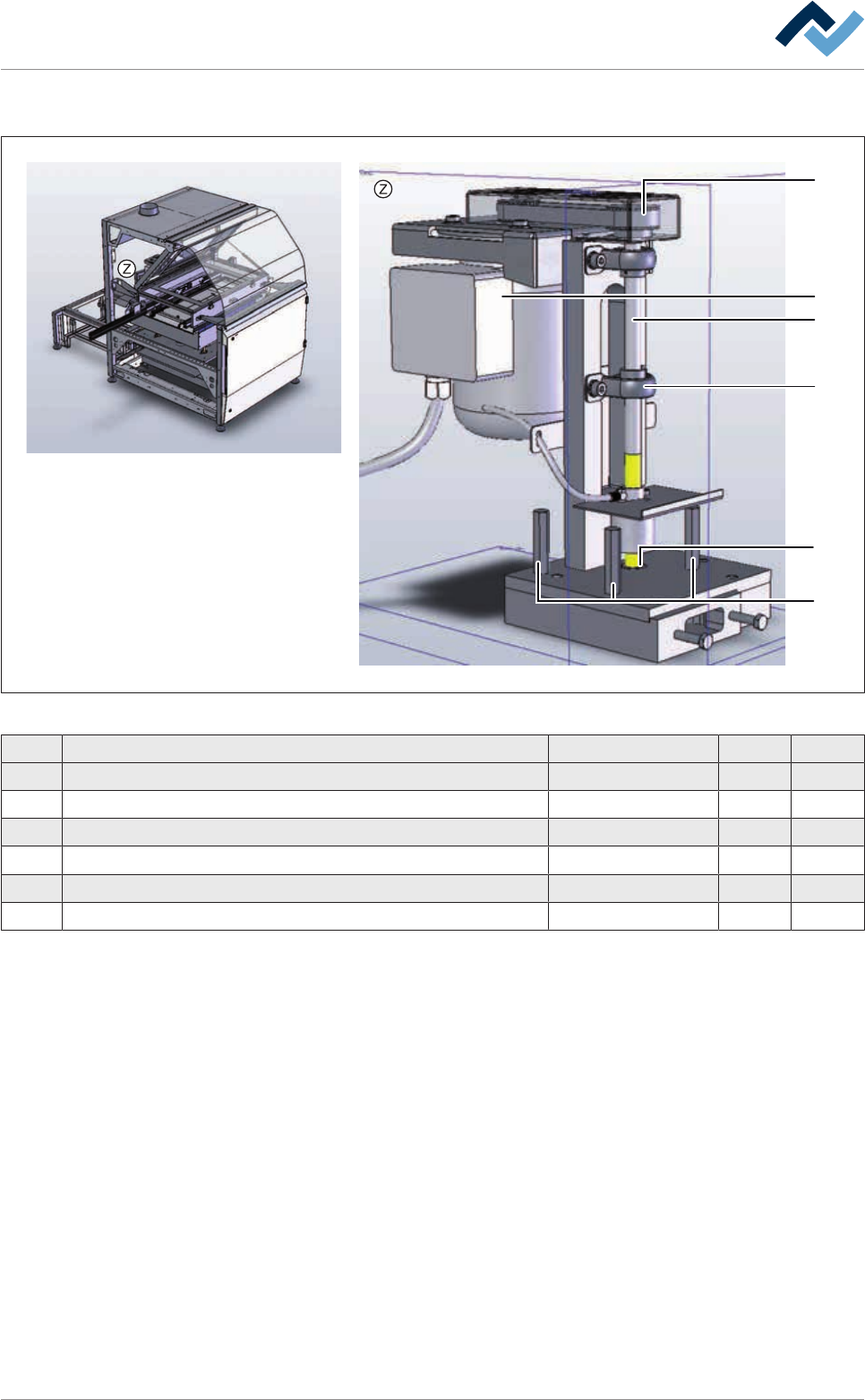

Fig.357: EM58-20-06-00C
Pos Designation Item number A B
1 Drive motor with connecting lead 164213 x
2 Tooth belt 425-5M-15 6ZR0425-5M-15 X
3 Pump shaft 164219 x
4 Bearing 6LAP40-15FD-T X
5 Blast wheel 164220 X
6 Threaded bolt 164226 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 641/695
