9|Spare and wear parts
9.9.1.3 DIP solder pot
Overview
Fig.350: 128-20-01-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 635/695
9|Spare and wear parts
1 2 4/53 4/5

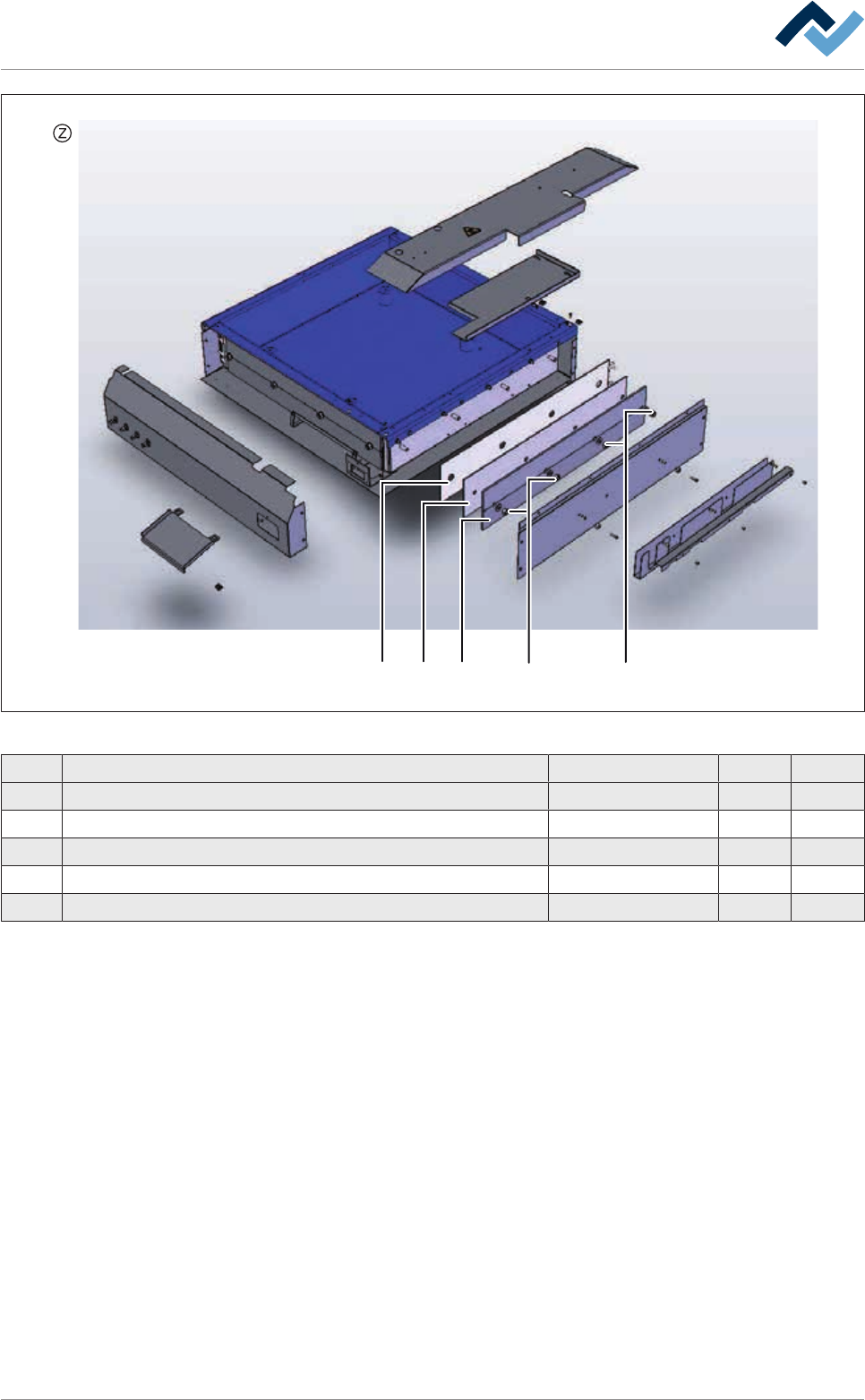

Fig.351: EM128-20-01-00a
Pos Designation Item number A B
1 Radiator, flat, 4 holes 6HK4L10002550 x
2 Pressure plate 6ISK582001022 x
3 Insulation plate 6ISK582001023 x
4 Disc, galvanized 6SU10.5Z9021 x
5 Hexagonal nut 6M100000E0934 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 636/695
9|Spare and wear parts
9.9.1.4 DIP soldering unit pressure plate
Overview
Fig.352: EMN768-0
DIP soldering unit pressure plate, view [Z]
1
2
4
5
3
6
Fig.353: EMN768-0a
Pos Designation Item number A B
1 Locking bolt 92833 x
2 Bajonet cap, spring 110254 x
3 Countersunk screw 102588 x
4 Rivet 4x16 A2 92846 x
5 Bajonet cap, bottom part 91224 x
6 Hexagonal nut 91248 x
