9|Spare and wear parts 9.5.3.3 Flexible rail 1, (single track) Overview Fig.271: EM113-339-20-00A Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 549/695
9|Spare and wear parts

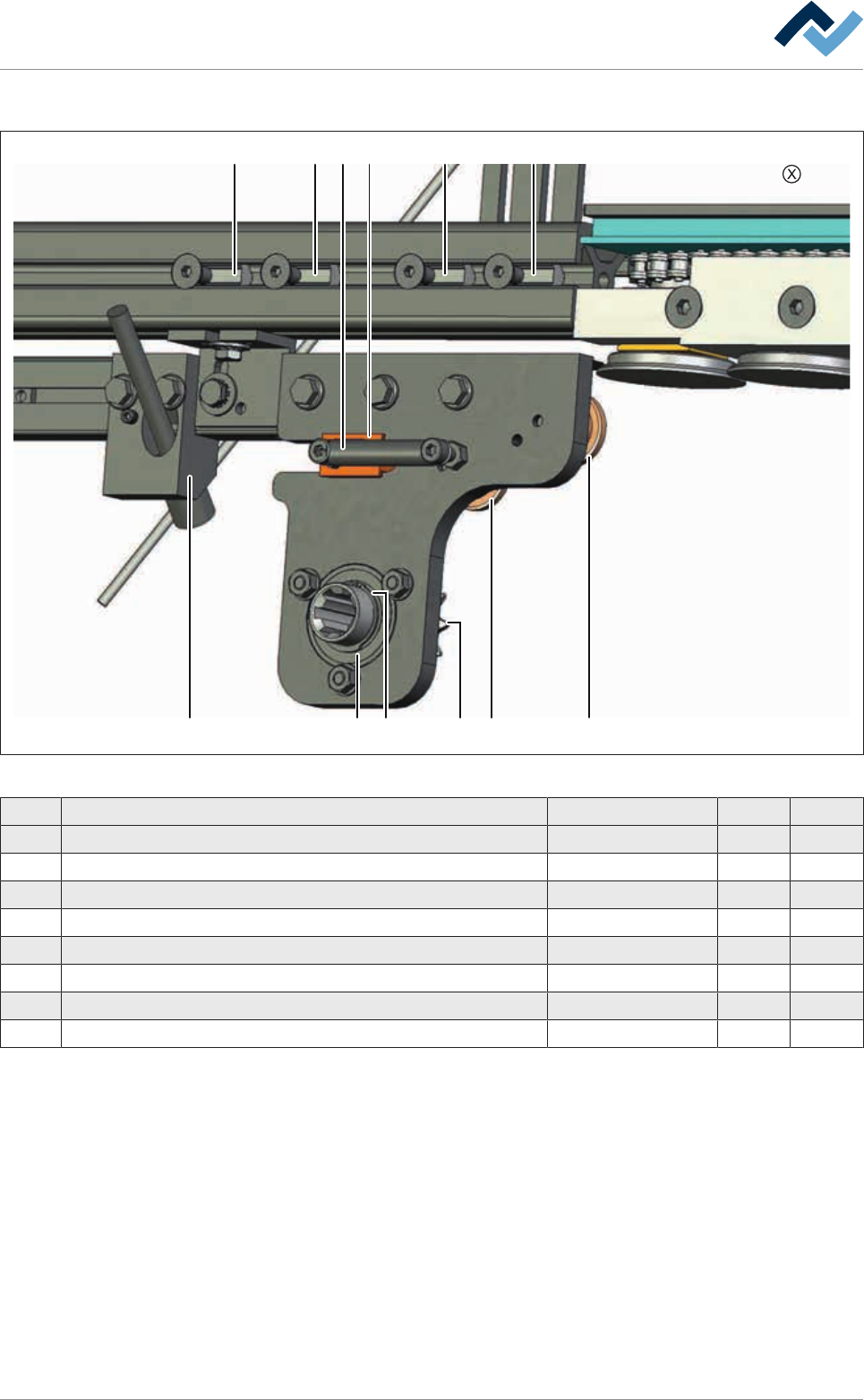

Fixed rail 2, (dual track), view [X]
1 8 888 2
4 37 5 6 6
Fig.270: EM113-339-30-00g
Pos Designation Item number A B
1 Sliding piece (chain tensioner) 169520 x
2 Spring 6FEDZ-094I x
3 Circlip A 17 DIN 471 6SER-A170471 x
4 Bearing 6LA619032RS x
5 Chain wheel Z=15 170047 x
6 Deflection roller Ø 21 mm 107607 x
7 Sensor holder, bottom, LK6 170750 x
8 Groove nut STM5 6ZIS049 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 548/695
9|Spare and wear parts

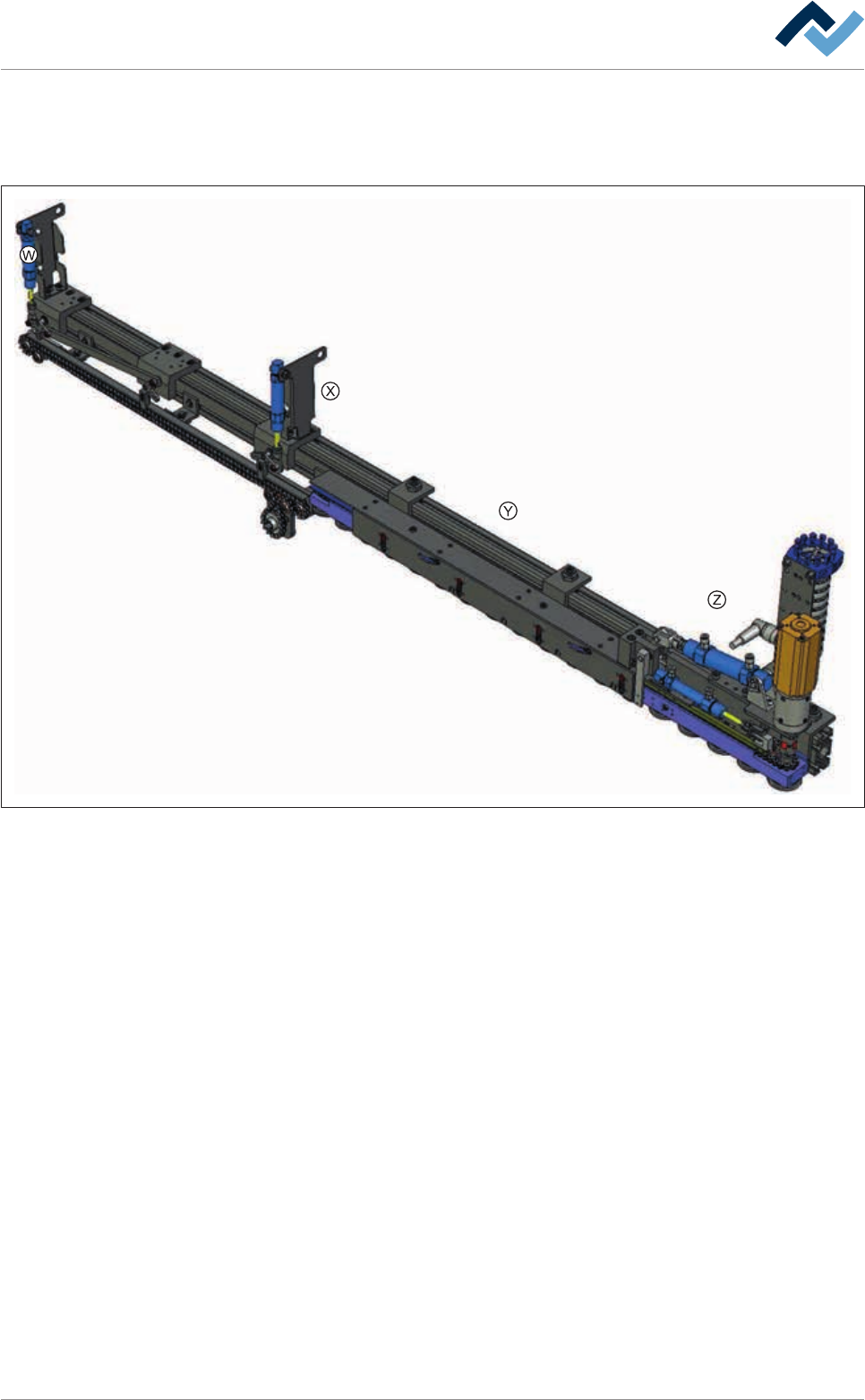

9.5.3.3 Flexible rail 1, (single track)
Overview
Fig.271: EM113-339-20-00A
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 549/695
9|Spare and wear parts
Flexible rail 1, (single track), view [Z]
1 84
10 10
3 3
9
9
2 7
5
6
Fig.272: EM113-339-20-00Aa
Pos Description Item number A B
1 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
2 Coupling Ø 20x30 143509 x
3 Plug-in connection Ø4 mm 1/8“ 126744 x
4 Cylinder, 2-acting Ø 20, stroke=25 Temp. resistant 43674 x
5 Cylinder, 2-acting Ø 12, stroke=25 mm 164014 x
6 Fork head G6x12 SL MBO 238057 x
7 Chain G52 05B-1 143514 x
8 Triflex Chain, size 40 171388 x
9 Straight plug connection M5, Ø 4 mm 126369 X
10 L-Screw-in angle M5, Ø 4 mm 126195 X
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 550/695
