9|Spare and wear parts 9.2.4 Additional module 75 2 4 5 1 3 Fig.183: EM113-16-00 Pos Designation Item number A B 1 Safety glass plate module 750 86274 x 2 Hinge EMKA Type 1110 93324 x 3 Lock 6VER2520 x 4 Adjusting foo…
9|Spare and wear parts
Additional module 150
1 2 3 3 3 3
Fig.182: EM113-15-00a
Pos Designation Item number A B
1 Lever element 86699 x
2 Pressure screw (Neopren) 6GN808-M5-45 x
3 Gas spring (300 N) * 89801 x
*Please note the type designation on the gas spring housing! To mount the gas
spring, Assembly tool for gas spring, item 123716 is required! Always have gas
springs replaced by specialised personnel!
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 454/695
9|Spare and wear parts
9.2.4 Additional module 75
245
1 3

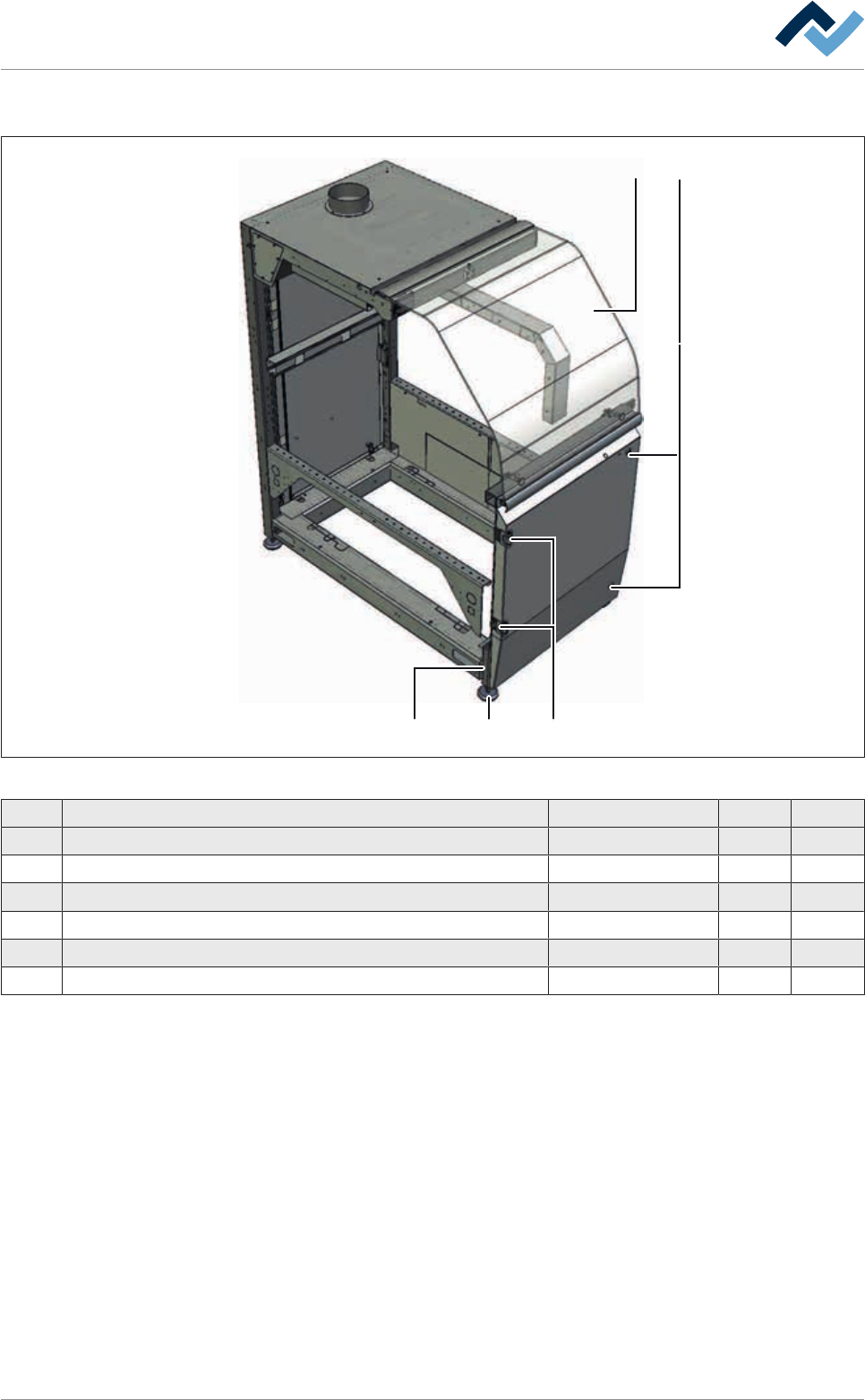

Fig.183: EM113-16-00
Pos Designation Item number A B
1 Safety glass plate module 750 86274 x
2 Hinge EMKA Type 1110 93324 x
3 Lock 6VER2520 x
4 Adjusting foot 6STELLFM16X155 x
5 Adjusting foot 135393 x
6 Key for control cabinet (unpictured) 6VERSCHLÜ2531 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 455/695
9|Spare and wear parts
Additional module 75

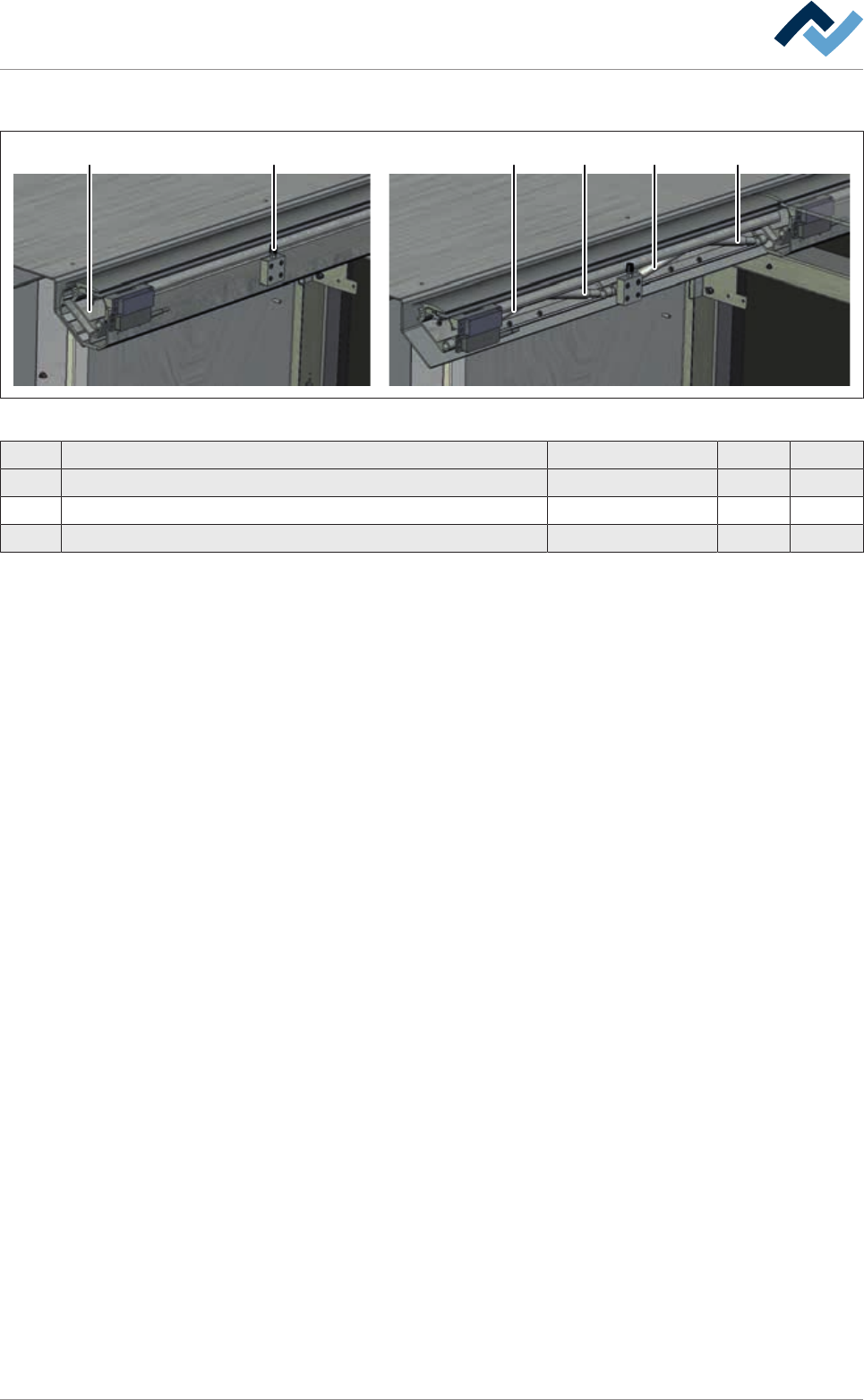

1 2 3 3 3 3
Fig.184: EM113-15-00a
Pos Designation Item number A B
1 Lever element 86699 x
2 Pressure screw (Neopren) 6GN808-M5-45 x
3 Gas spring (300 N) * 89801 x
*Please note the type designation on the gas spring housing! To mount the gas
spring, Assembly tool for gas spring, item 123716 is required! Always have gas
springs replaced by specialised personnel!
