9|Spare and wear parts

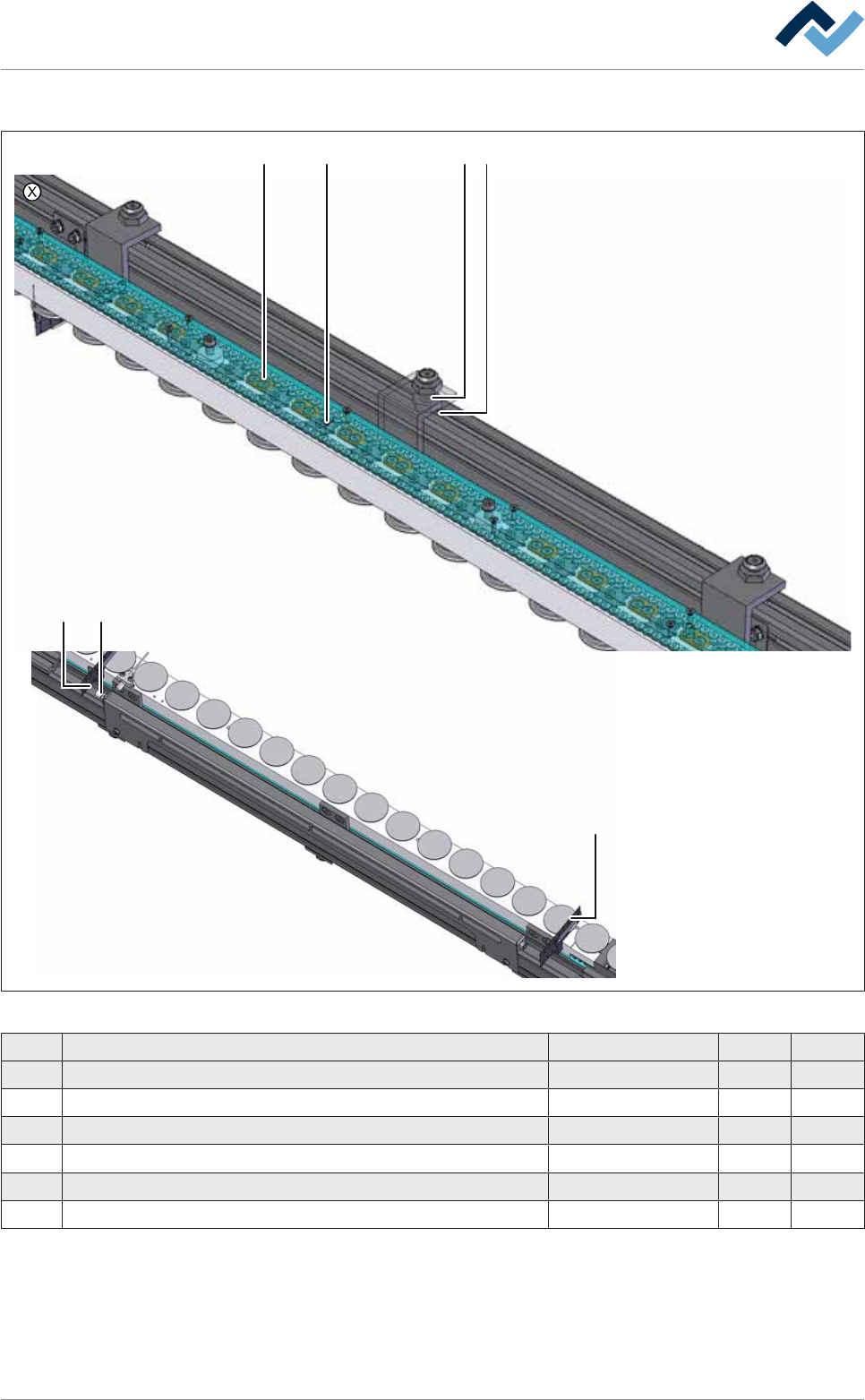

Fixed rail, DIP XL induction, view [X]
4
5
3 1 2
6
6
Fig.304: EM146-339-10-00d
Pos Description Item number A B
1 Jackscrew M12X1 170791 x
2 Groove nut STM5 6ZIS049 x
3 Chain pinion 05-Z9 143638 x
4 Chain guide 155902 x
5 Gassing hose 261375 x
6 Separation (conveyor) 265937 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 584/695
9|Spare and wear parts
Fixed rail, DIP XL induction, view [W]
4
3 1 2
Fig.305: EM146-339-10-00e
Pos Description Item number A B
1 Pressure spring VD-177 143511 x
2 Sliding piece, redirection 143640 x
3 Chain pinion 05-Z9 143638 x
4 Chain guide, fixed 143645 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 585/695
9|Spare and wear parts
9.5.4.6 Flexible rail, DIP XL induction, (single track)
Overview
Fig.306: EM146-339-20-00Aa
