8|Service and maintenance
1

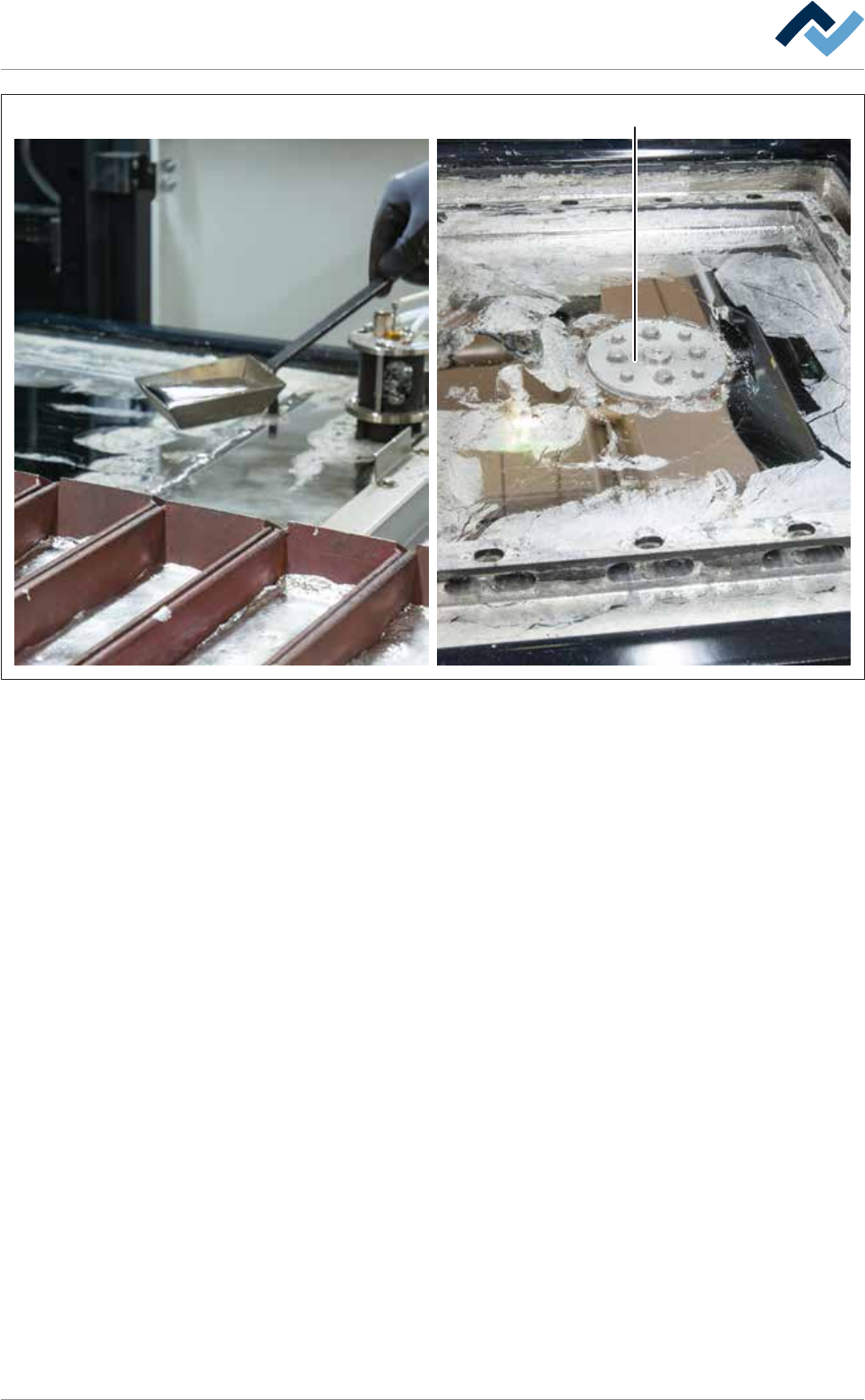

Fig.153: Skim solder off the solder pot until the baffle plate (1) of the pump riser tube is above the solder surface. Fill the scoop
only halfway with liquid solder in order to prevent any liquid solder from spilling or splashing!
ü Skim solder until the baffle plate (1) becomes visible above the pump riser
tube.
ü Suitable receptacles should be provided on a heat-resistant base.
a) Carefully use the scoop included in the ERSA cleaning set to skim solder off the
solder pot into the receptacle provided for this purpose, until the baffle plate
(1) of the pump riser tube is above the solder surface.
ð Risk of accident! Fill the scoop only halfway with liquid solder in order to
prevent any liquid solder from spilling or splashing!
ð Risk of accident! Fill the appropriate receptacles with liquid solder slowly
so as to prevent spilling or splashing.
b) Let the skimmed solder cool until it is completely solidified. Keep the scooped-
out solder ready for being poured in again.
c) Clean the baffle plate of the pump riser tube (1) with a silicone brush.
ð The process has now been completed.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 410/695
8|Service and maintenance
Disassembling the pump riser tube
1 1 1 12 33
Fig.154: Loosen four screws (1) and disassemble the pump riser tube.
ü To disassemble the pump riser tube:
a) Loosen four screws (1) using a socket spanner.
b) Screw the dismantling tool (3) into the thread (2).
c) Carefully lift the pump riser tube using the dismantling tool (3) so that the li-
quid solder residue can flow into the solder bath.
ð Risk of accident! Observe the weight of the pump riser tube!
d) Pull out the pump riser tube and place it on a heat-resistant base.
ð The process has now been completed.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 411/695
8|Service and maintenance
Cleaning the pump riser tube
1
2
2
3
Fig.155: Clean the inner (1) and outer (3) pump riser tube
ü To clean the inner and outer pump riser tube:
ü Please note: The parts coming into contact with solder can be cleaned more
easily as long as they are still hot!
a) Clean the pump riser tube (1) with a silicone brush.
b) Carefully heat the scoop for the riser tube (2) in the solder bath.
c) Insert the scoop for the riser tube (2) into the outer pump riser tube (3) in the
solder bath and carefully move it up and down.
ð Risk of accident! Carefully move the scoop for the riser pipe up and down
to avoid any splashing of liquid solder!
ð The process has now been completed.
