4|Transport, installation, storage, disposal 4.4.2 Unloading with a crane DANGER Severe or fatal injury from falling load! a) The crane must meet the minimum requirements as shown below! b) Lift the machine always at t…
4|Transport, installation, storage, disposal
c) For this purpose, please consider the next figure!
Fig.3: These markings indicate the lifting points
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 63/695
4|Transport, installation, storage, disposal
4.4.2 Unloading with a crane
DANGER
Severe or fatal injury from falling load!
a) The crane must meet the minimum requirements as shown below!
b) Lift the machine always at the center of gravity!
Transport the machine safely
ü Safe machine transport:
a) load always to be lifted at the marked lifting points.
ð To learn the weight of the machine, please refer to chapter [Technical
Data].
ð The lifting points are marked with the symbol of a chain.
ð In this regard, please consider the following illustration!
ð After transport:
b) put the machine down. Remove ropes, chains and lifting devices.
c) In this regard, please consider the following illustration!

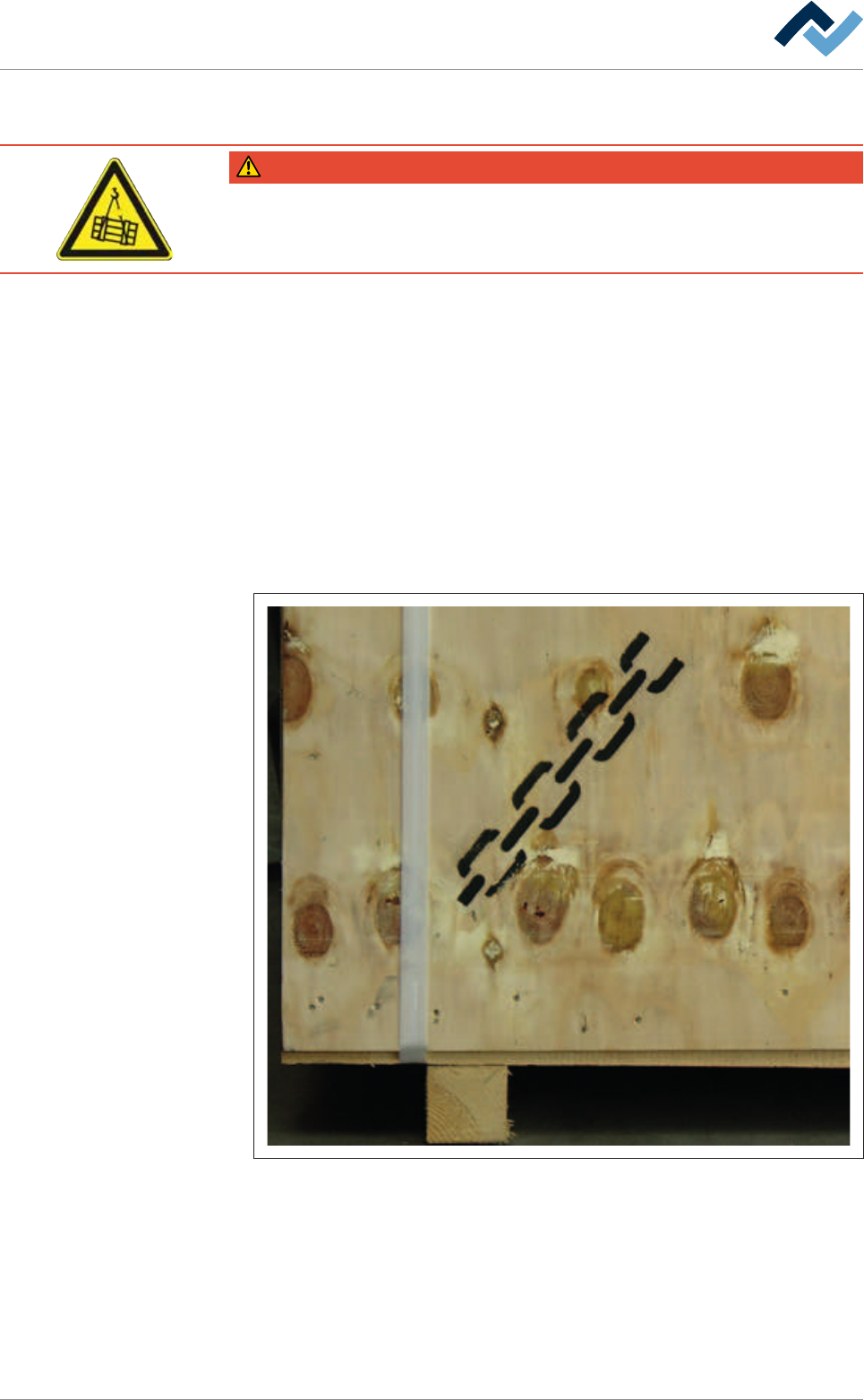

Fig.4: Chain symbol: place lifting gear here!
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 64/695
4|Transport, installation, storage, disposal
4.5 Unpacking the machine
CAUTION
Risk of injury!
a) To unpack always use proper tools!
b) Use suitable protective clothing!
NOTE
Disposal
a) Provide safe and environmentally friendly disposal of packaging materials!
NOTE
Find out and ascertain any transport damage
a) Inspect the machine for any transport damage immediately after unpacking it.
b) Immediately notify the forwarder any transport damage.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 65/695
