9|Spare and wear parts 9.5.3 Selective soldering unit conveyor system 9.5.3.1 Fixed rail 1, (single track) Overview Fig.255: EM113-339-10-00 Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 534/695
9|Spare and wear parts
Second stopper right, (segmented preheating), view [Y], [Z]
1
2
8
4
57
3
66
9
7
7 4 65
Fig.254: EM113-37-03-00a
Pos Designation Item number A B
1 Joint clip 170367 x
2 Swivel head M6 170366 x
3 Groove nut STM5 6ZIS049 x
4 Washer 8/14X1,0 DIN988 6SA08X1.00 x
5 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
6 Collar bush 143513 x
7 Pan head screw M5 170207 x
8 Straight screwing M5, stainless stell 97965 x
9 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant 85950 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 533/695
9|Spare and wear parts
9.5.3 Selective soldering unit conveyor system
9.5.3.1 Fixed rail 1, (single track)
Overview
Fig.255: EM113-339-10-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 534/695
9|Spare and wear parts

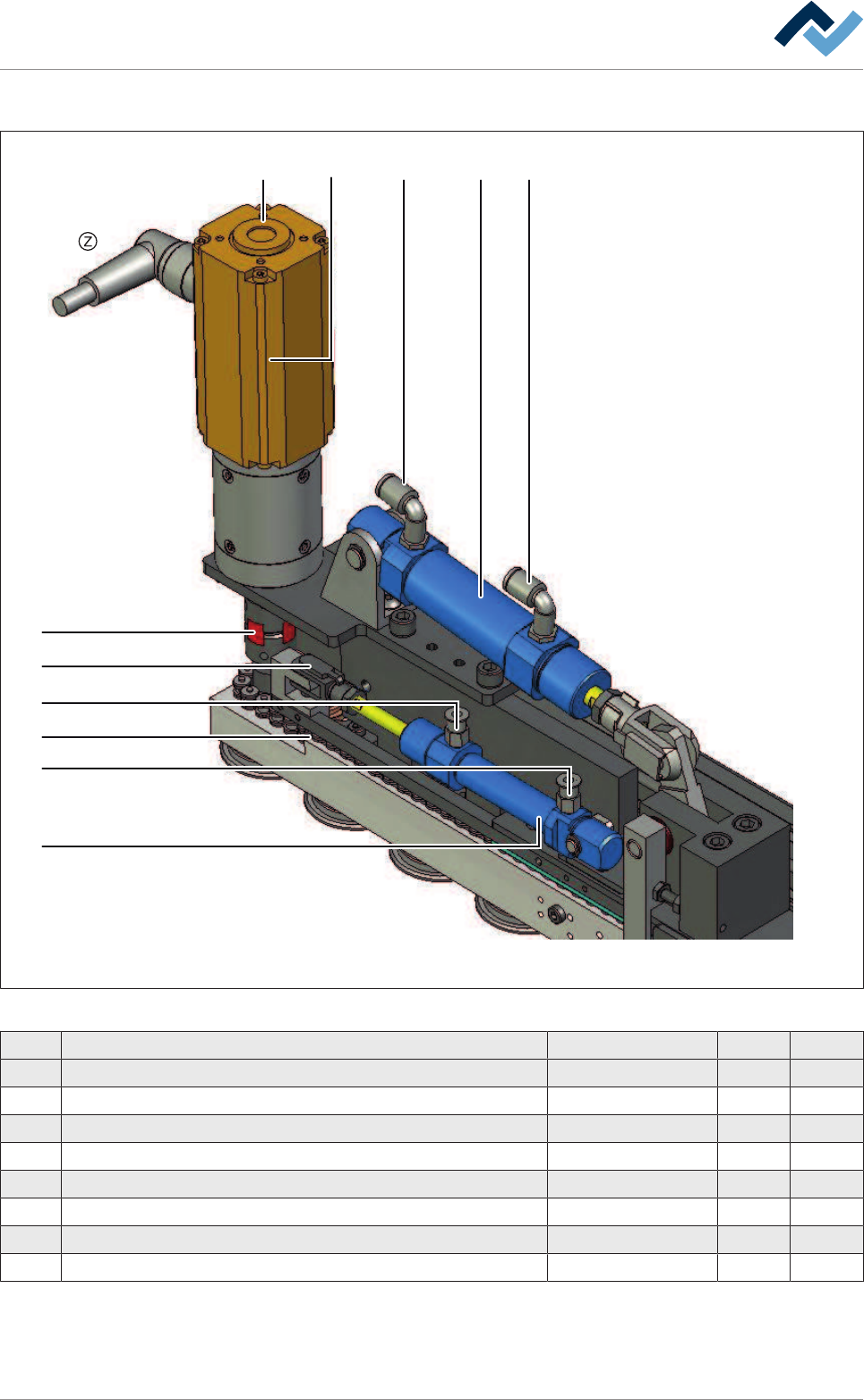

Fixed rail 1, (single track), view [Z]
1 4
5
2
7
8
3 3 3
5
6
Fig.256: EM113-339-10-00a
Pos Designation Item number A B
1 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
2 Coupling Ø 20x30 143509 x
3 Screw-in angle Ø 4 mm, 1,8" 126740 x
4 Cylinder, 2-acting Ø 20, stroke=25 Temp. resistant 43674 x
5 Straight plug connection M5, Ø 4 mm 126369 X
6 Cylinder, 2-acting Ø 12, stroke=25 mm 164014 X
7 Fork head G6x12 SL MBO 238057 X
8 Chain G52 05B-1 143514 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 535/695
