6|Function description ð The PCBs will only be fed into the module it the next module is empty. This way, the PCBs are prevented, for example, from remaining too long in the module due to a jam. However, this function …

6|Function description

user:

ersa

Soldering program editor General additional data

Program informations

Program name

Version:

Last modification by:

Infotext:

Conveyor

Conveyor width adjustment

Graphical data

Process time

General additional data

Park position

Empty module always

Process time

Fix horizontal permanently

Data source

Board deflection

Correction

Congestion position

Maintenance mode

Fig.40: The [General additional data] dialog

Park position and jam position

In the [Park position] input fields, you can define a position for the nozzle, which is

always approached when the process step has been finished. In this position, the

module waits for the next board. You can also approach this position manually.

In the [Congestion position] input fields, you can define a position for the nozzle,

which is always approached when the machine is somewhere congested with

boards.

Adjusting the process time manually

ü To adjust the process time manually:

a) Click on the [Process time] input field and enter a process time.

ð The process time is adjusted, and the time calculated by the controller for this

module is overwritten. When clicking on [Process time], the controller recalcu-

lates all process times. The process time adjusted by you is overwritten.

First always empty the next module

ü The PCBs shall only be fed into the next module if this module is empty:

a) Activate the [Empty module always] checkbox.

Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 182/695

6|Function description

ð The PCBs will only be fed into the module it the next module is empty. This

way, the PCBs are prevented, for example, from remaining too long in the

module due to a jam. However, this function can extend the cycle times.

Permanently fixing PCBs

ü To permanently fix PCBs during processing:

a) Activate the [Fix horizontal permanently] checkbox.

ð The PCBs are aligned in the module and then laterally fixed until processing is

completed. If the checkbox is not activated, the PCBs are only aligned and then

released again. You can activate this function separately for all available fluxer

and soldering modules

Manually compensating for the PCB deflection

Due to the heating and weight of the components, the PCBs get bent during pro-

cessing. Thereby, the distance [Z] from the solder nozzle to the soldering joint

changes. The machine corrects this error if an offset value is specified. The control-

ler takes into account the deflection and corrects the distances accordingly.

ü To compensate the [Board deflection] in machines without deflection measure-

ment:

a) Select the current soldering module from the [Data source] dropdown menu.

b) Determine the deflection of the board at the point of greatest deflection. This

is generally a point in the middle of the PCB.

c) Enter the deflection in [mm] into the [Correction] input field. Enter a positive

value if the board bends downwards. Enter a negative value if the board bends

upwards.

ð The deflection of the board is now taken into account by the controller and the

[Z] distances to the solder joints are corrected accordingly.

Click on

to close the dialog.

Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 183/695

6|Function description

6.9.10 Settings of the Versaeye inspection system (option)

If the Versaeye inspection system must be used in the soldering program, it must

be configured in the machine control.

With regard to this, please also read the Versaeye inspection system (option)

[}269]chapter.

In order to use the Versaeye inspection system in the soldering program, the Exit

unit must be enabled in the soldering program.

Activate the [Exit unit] in the soldering program

ü Activate the [Exit unit] in the soldering program:

a) In the [General soldering program data] dialog, enable the module checkbox at

level 1.

ð The [Exit unit] module is now enabled and can be used in the soldering pro-

gram.

Setting the conveyor speed

ü To set the conveyor speed:

a) In the [General soldering program data] dialog in level 3, click on the input field

of the conveyor section.

b) Enter the conveyor speed in [%] of the maximum possible speed value.

ð This is the speed at which the board is conveyed into the next module.

Performing extended settings in the [General additional data] dialog

ü To perform extended settings:

a) Open the [General soldering program data] dialog.

b) Below Level 6, click on the

button in the corresponding module.

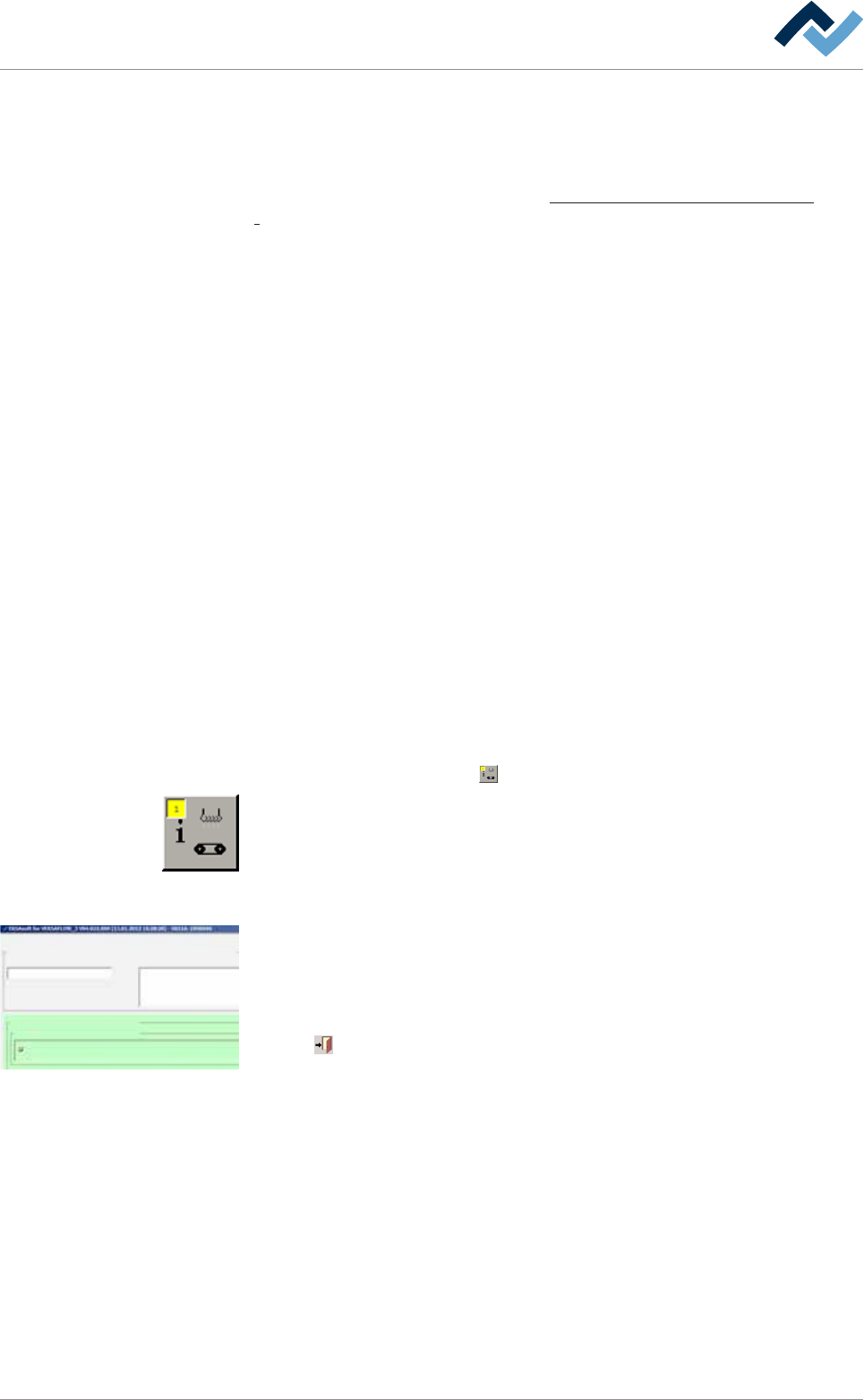

Open the [General additional data] dialog. The yellow square indicates how often

the dialog has already been opened.

Activate Versaeye in the soldering program

Version:

user: none Maintenance mode

Active

General additional data

Program informations

Soldering program

editor

General additional data

Inspektionssystem

Last modification by:

Program name:

Exit unit

versaEye

ersa

0020

Infotext:

Conveyor

Graphical

data

Conveyor width adjustment mm380.0

Process time

ü Activate the Versaeye inspection system in the soldering program:

a) In the [Inspection system] dialog, enable the [Active] checkbox.

ð The Versaeye inspection system is now enabled and can be used in the solder-

ing program.

Click on

to close the dialog.
