9|Spare and wear parts

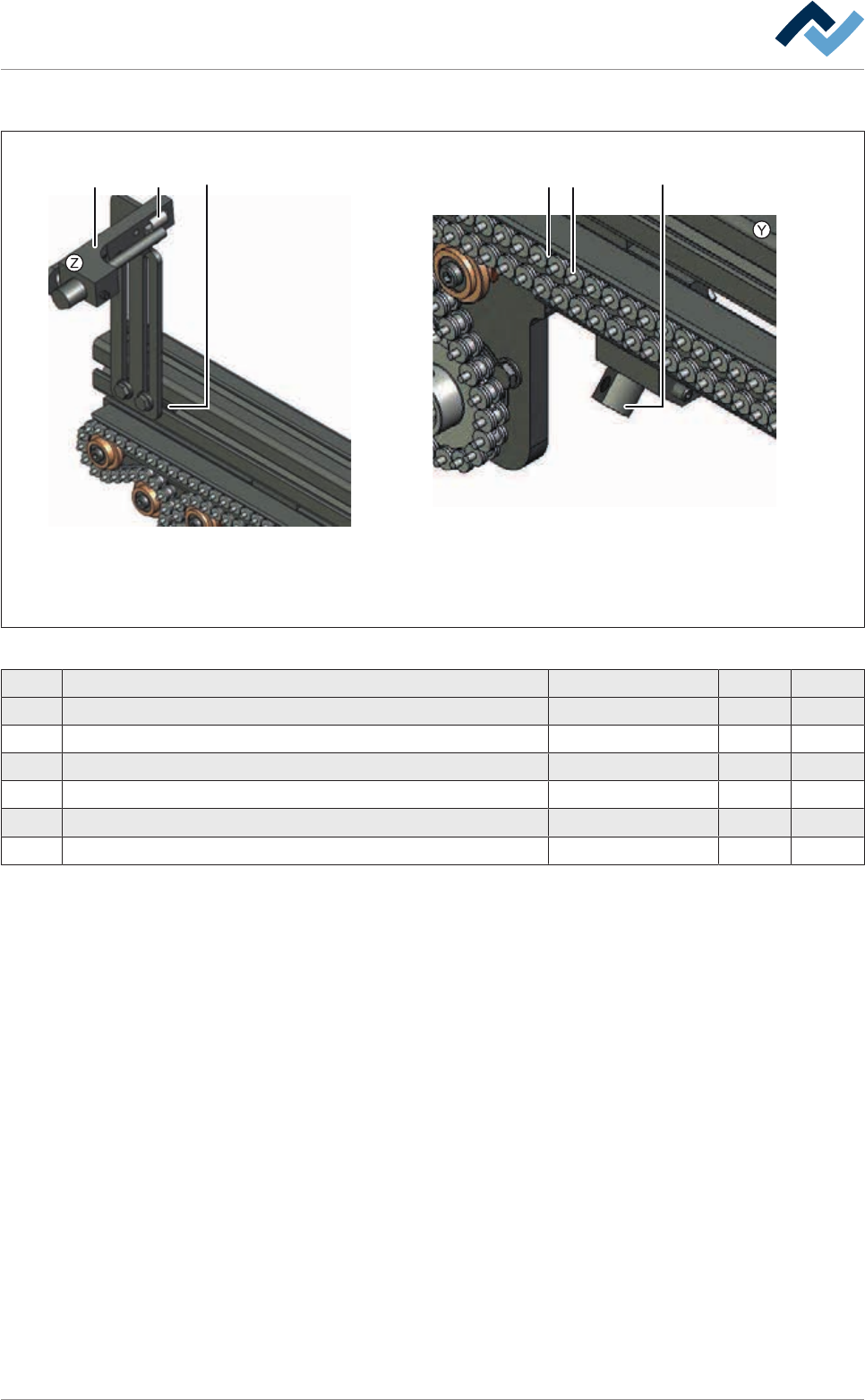

Fixed rail 2, (dual track), view [Y], [Z]
1 24 6 3 5
Fig.245: EM113-338-30-00a
Pos Designation Item number A B
1 Conveyor chain, 3 mm pins, bulk stock 208821 x
2 Chain joint 3 mm 208824 x
3 Groove nut, flute width 6 M4 26315 x
4 Support, Senor LK6, top 170766 x
5 Sensor holder, bottom, LK6 170750 x
6 Pipe clamp DIN 72571 6ZT00211 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 524/695
9|Spare and wear parts

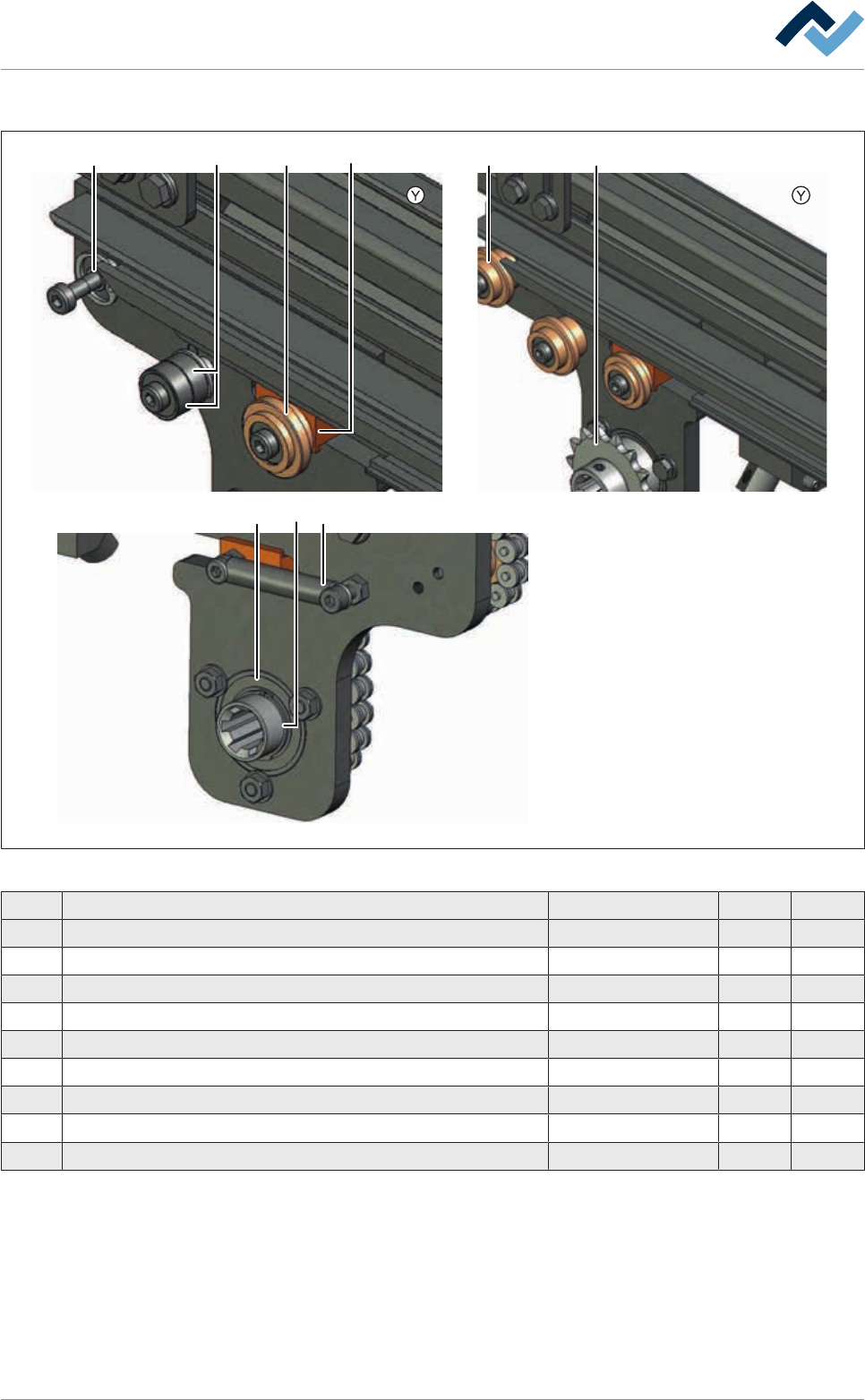

Fixed rail 2, (dual track), view [Y]
5 62 43 1
8 97
Fig.246: EM113-338-30-00b
Pos Designation Item number A B
1 Sliding piece (chain tensioner) 169520 x
2 Distance bush 108981 x
3 Bearing 6LA624Z x
4 Deflection disk 143668 x
5 Deflection roller Ø 21 mm 107607 x
6 Chain wheel Z=15 170047 x
7 Circlip A 17 DIN 471 6SER-A170471 x
8 Bearing 6LA619032RS x
9 Spring 6FEDZ-094I x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 525/695
9|Spare and wear parts
9.5.2.4 Flexible rail 2, (dual track)
Overview
Fig.247: EM113-338-40-00
