9|Spare and wear parts Flexible rail 1, (single track), view [X], [Y], [Z] 2 3 4 1 8 7 9 10 11 12 6 Fig.229: EM113-333-20-00a Pos Designation Item number A B 1 Joint clip * 170367 x 2 Straight screwing M5, stainless s…
9|Spare and wear parts
9.5.1.2 Flexible rail 1, (single track)

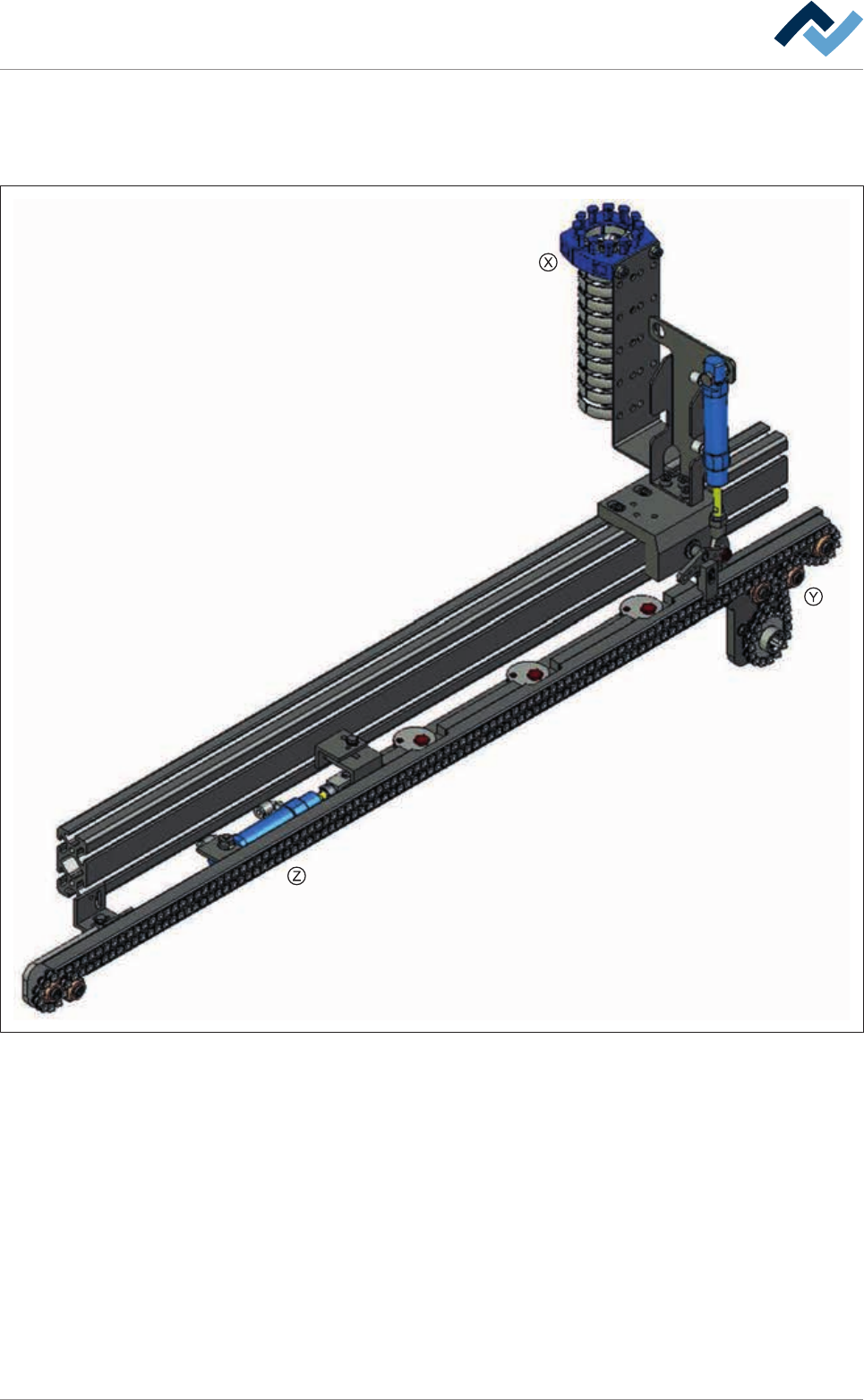

Overview
Fig.228: EM113-333-20-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 502/695
9|Spare and wear parts

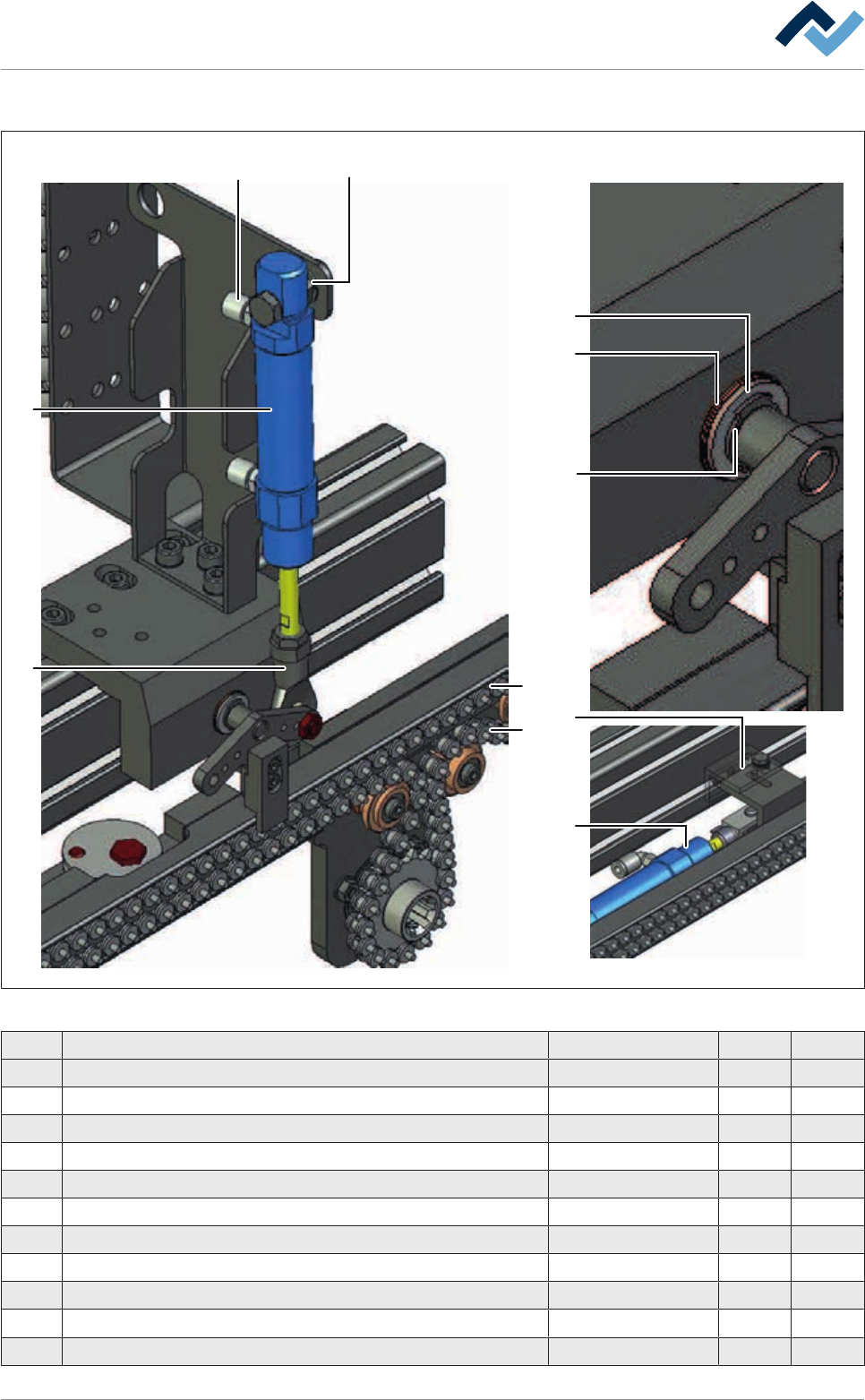

Flexible rail 1, (single track), view [X], [Y], [Z]
2
3
4
1
8
7
9
10
11
12
6
Fig.229: EM113-333-20-00a
Pos Designation Item number A B
1 Joint clip * 170367 x
2 Straight screwing M5, stainless stell * 97965 x
3 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant * 85950 x
4 Swivel head M6 * 170366 x
5 Screw M3 * 6M03X008Z0912 x
6 Washer 8/14X0,5 DIN988 * 6SA08X0.50 x
7 Circlip A 8x0,8mm, DIN 471 * 6SER-A080471 x
8 Collar bush * 143513 x
9 Conveyor chain, 3 mm pins, bulk stock 208821 x
10 Chain joint 3 mm 208824 x
11 Groove nut, flute width 6 M4 26315 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 503/695
9|Spare and wear parts
Pos Designation Item number A B
12 Cylinder, Ø 16, stroke =20 mm * 144377 x
* Only for option [Dual track] or [Second stopper] x
