9|Spare and wear parts
9.4.8 Positioning system for double solder pots with eccentric solder pot lids, y-
variable
Overview
Fig.218: EM113-23-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 492/695
9|Spare and wear parts

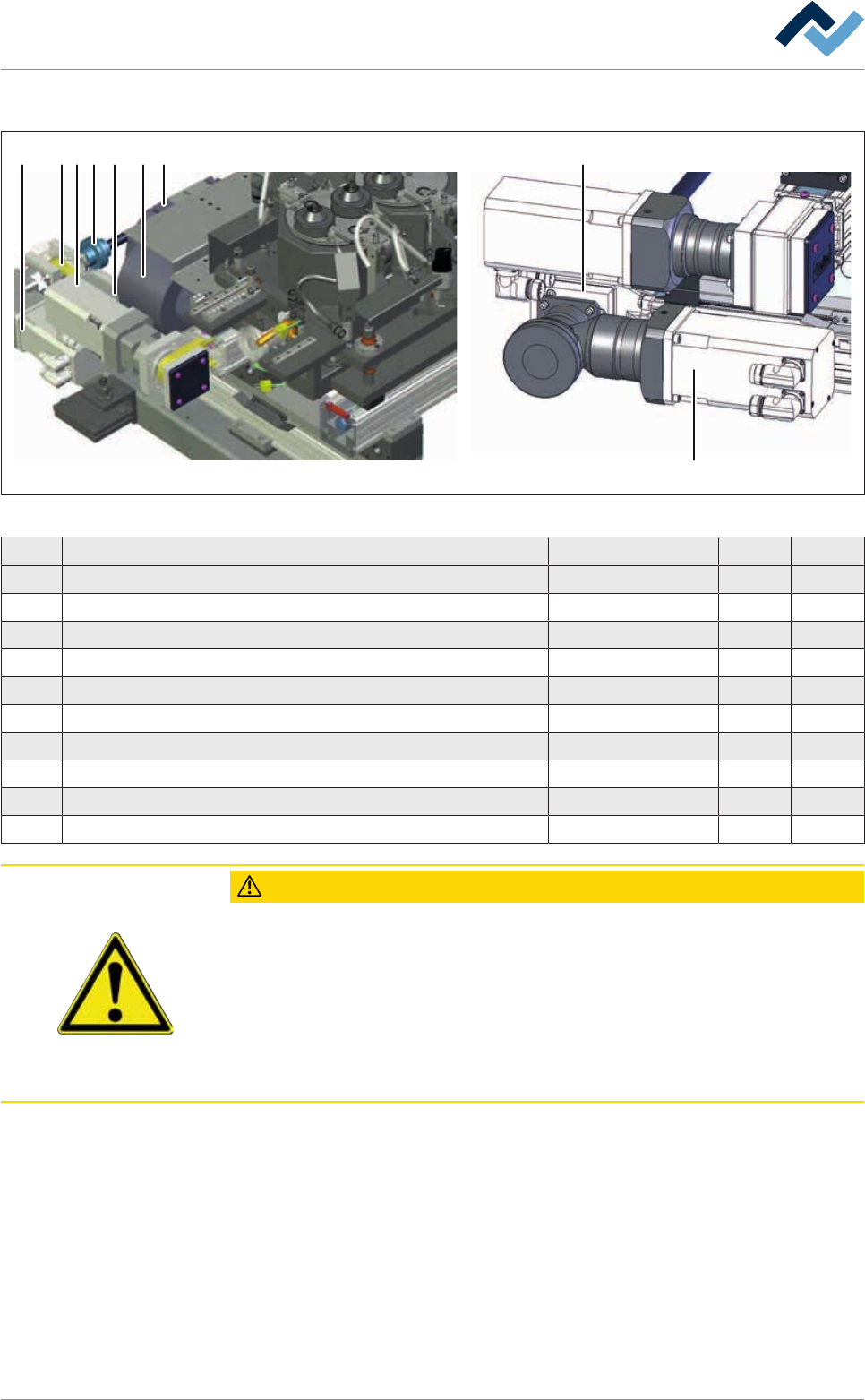

Excentric solder pot positioning system, y-variable, view [Z]
1 4 53 2 67
3
4
Fig.219: EM113-23-00a
Pos Description Item number A B
1 Tooth belt 25AT10HPF; 2400 mm 175810 x
2 Steel band 38 mm x 1250 mm 175812 x
3 Motor/gear combination --> 2010 175816 x
3 Motor/gear combination 2010 --> 191607 x
4 Motor/gear combination --> 2010 175817 x
4 Motor/gear combination 2010 --> 191608 x
5 Coupling 175820 x
6 Energy chain 152270 x
7 Energy chain 174537 x
8 Blanket for positioning system: EM113-23-00 (not shown) 253581 x
CAUTION
Malfunctioning possible!
If the motor/gearbox combination 175816is replaced by the 191607 one, you must
load the appropriate parameters in the driver controller. With respect to this, please
read the [100049_SSD_Drive_einrichten.pdf] in the data carrier [Product data Versa-
flow 3] document. You can find the WPLN type parameters in the [Software\Parker
\Maschinendaten\638_Versaflow3xx\Parameter] directory. If the motor/gearbox
combination 175817 is replaced by the 191608 one, no adjustment of the parameters
is necessary.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 493/695
9|Spare and wear parts
Excentric solder pot positioning system, y-variable, view [X], [Y]
1 567 72 3 4
Fig.220: EM113-23-00b
Pos Description Item number A B
1 Tooth belt 25AT10HPF; 2400 mm 175810 x
2 Tooth belt 25AT10HPF; 2440 mm 216456 x
3 Steel band 38 mm x 1167 mm 175813 x
4 Steel band 38 mm x 1100 mm 175814 x
5 Wearing part package steel band deflection 175815 x
6 Assembly set limit switch 175818 x
7 Cam set 175819 x
