9|Spare and wear parts 9.5.2.6 First stopper right, temperature resistant 1 2 4 8 7 3 6 9 5 Fig.250: EM113-37-11-00 Pos Designation Item number A B 1 Joint clip 170367 x 2 Swivel head M6 170366 x 3 Groove nut STM5 6ZI…
9|Spare and wear parts
9.5.2.5 First stopper left, temperature resistant
2
9 1
5 7
3
8
4
6
Fig.249: EM113-37-12-00
Pos Designation Item number A B
1 Joint clip 170367 x
2 Swivel head M6 170366 x
3 Groove nut STM5 6ZIS049 x
4 Washer 8/14X1,0 DIN988 6SA08X1.00 x
5 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
6 Collar bush 143513 x
7 Pan head screw M5 170207 x
8 Straight screwing M5, stainless stell 97965 x
9 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant 85950 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 528/695
9|Spare and wear parts

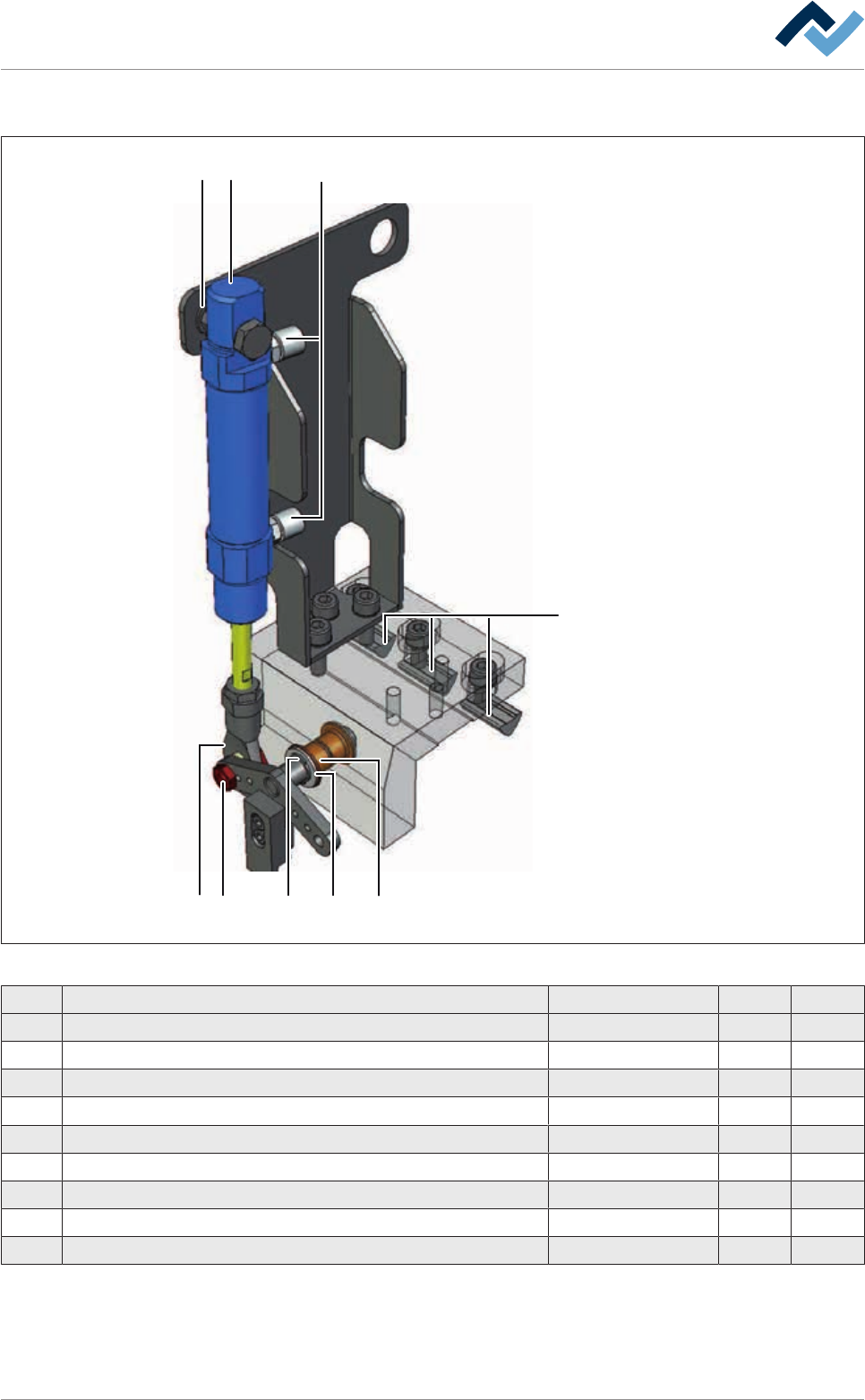

9.5.2.6 First stopper right, temperature resistant
1
2
4
8
7
3
6
9
5
Fig.250: EM113-37-11-00
Pos Designation Item number A B
1 Joint clip 170367 x
2 Swivel head M6 170366 x
3 Groove nut STM5 6ZIS049 x
4 Washer 8/14X1,0 DIN988 6SA08X1.00 x
5 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
6 Collar bush 143513 x
7 Pan head screw M5 170207 x
8 Straight screwing M5, stainless stell 97965 x
9 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant 85950 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 529/695
9|Spare and wear parts
9.5.2.7 Second stopper left, (segmented preheating)
Overview
Fig.251: EM113-37-04-00
