9|Spare and wear parts

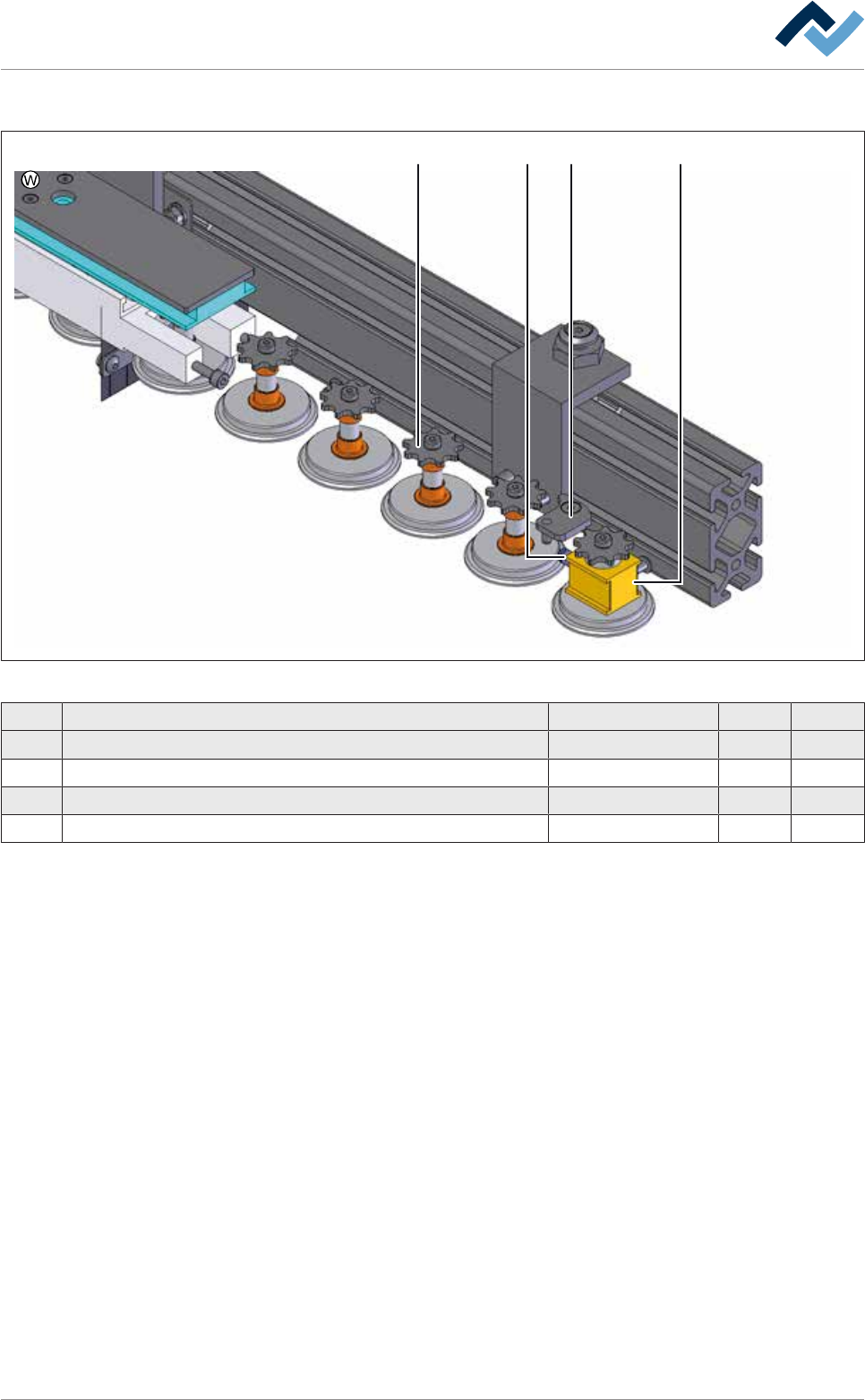

Fixed rail, DIP XL induction, view [W]
4
3 1 2
Fig.305: EM146-339-10-00e
Pos Description Item number A B
1 Pressure spring VD-177 143511 x
2 Sliding piece, redirection 143640 x
3 Chain pinion 05-Z9 143638 x
4 Chain guide, fixed 143645 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 585/695
9|Spare and wear parts
9.5.4.6 Flexible rail, DIP XL induction, (single track)
Overview
Fig.306: EM146-339-20-00Aa
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 586/695
9|Spare and wear parts
Flexible rail, DIP XL induction, view [Z]
1 75 4 3 2 63
Fig.307: EM146-339-20-00Ab
Pos Description Item number A B
1 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
2 Coupling Ø 20x30 143509 x
3 L-Screw-in angle M5, Ø 4 mm 126195 x
4 Cylinder, 2-acting Ø 12, stroke=25 mm 164014 x
5 Fork head G6x12 KL MBO 242046 x
6 Chain 8,00 x 3,16 05B-1, bulk stock 144818 x
7 Triflex Chain, size 40 204664 x
