9|Spare and wear parts Double pot positioning system, view [X], [Y] 2 4 5 7 6 3 1 Fig.207: EM113-24-00b Pos Designation Item number A B 1 Tooth belt 25AT10HPF; 2290 mm 175811 x 2 Steel band 38 mm x 1167 mm 175813 x 3 …
9|Spare and wear parts
CAUTION
Malfunctioning possible!
If the motor/gearbox combination 175816is replaced by the 191607 one, you must
load the appropriate parameters in the driver controller. With respect to this, please
read the [100049_SSD_Drive_einrichten.pdf] in the data carrier [Product data Versa-
flow 3] document. You can find the WPLN type parameters in the [Software\Parker
\Maschinendaten\638_Versaflow3xx\Parameter] directory. If the motor/gearbox
combination 175817 is replaced by the 191608 one, no adjustment of the parameters
is necessary.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 480/695
9|Spare and wear parts
Double pot positioning system, view [X], [Y]
24576 31
Fig.207: EM113-24-00b
Pos Designation Item number A B
1 Tooth belt 25AT10HPF; 2290 mm 175811 x
2 Steel band 38 mm x 1167 mm 175813 x
3 Steel band 38 mm x 1100 mm 175814 x
4 Wearing part package steel band deflection 175815 x
5 Assembly set limit switch 175818 x
6 Cam set 175819 x
7 Adjusting screw 135733 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 481/695
9|Spare and wear parts

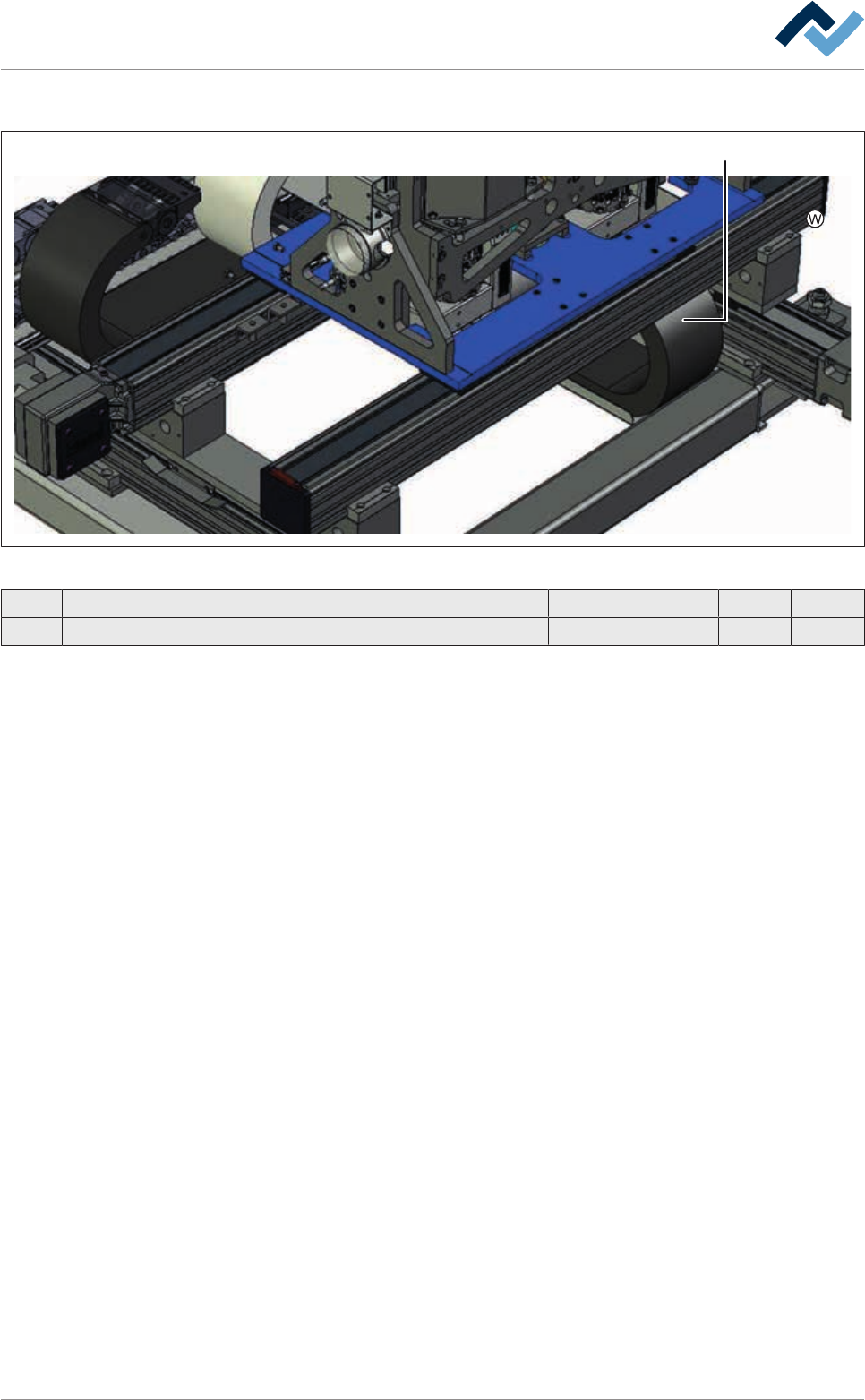

Double pot positioning system, view [W]
1
Fig.208: EM113-24-00c
Pos Designation Item number A B
1 Energy chain 139290 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 482/695
