9|Spare and wear parts 9.9.3.3 DIP soldering module (multiwave) XL gassing hood Overview Fig.382: EM146-21-00a Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 667/695
9|Spare and wear parts
View [Z]
1
Fig.381: EM131-61-00f
Pos Description Item number A B
1 Ring heater 450 W 203924 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 666/695
9|Spare and wear parts

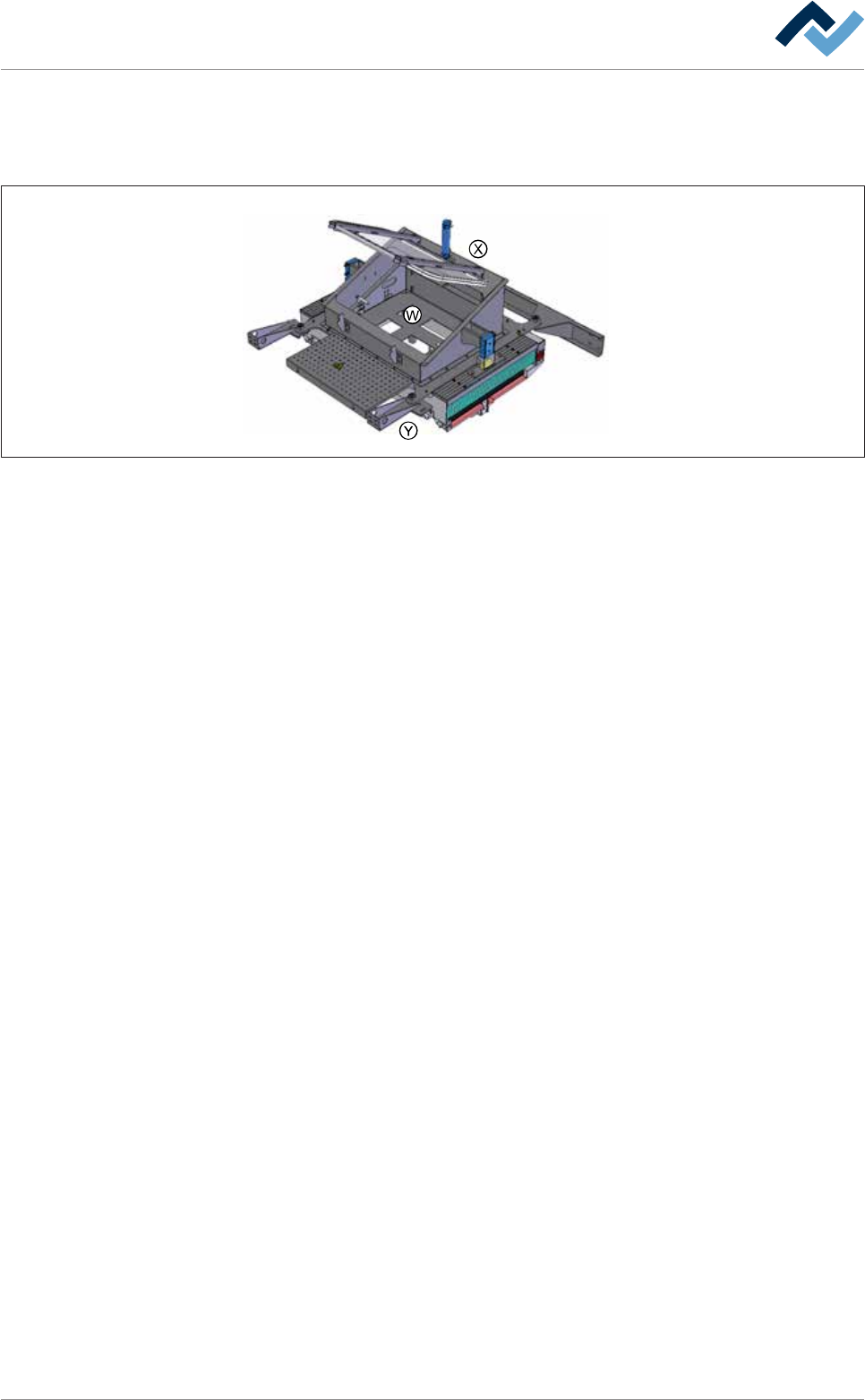

9.9.3.3 DIP soldering module (multiwave) XL gassing hood
Overview
Fig.382: EM146-21-00a
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 667/695
9|Spare and wear parts

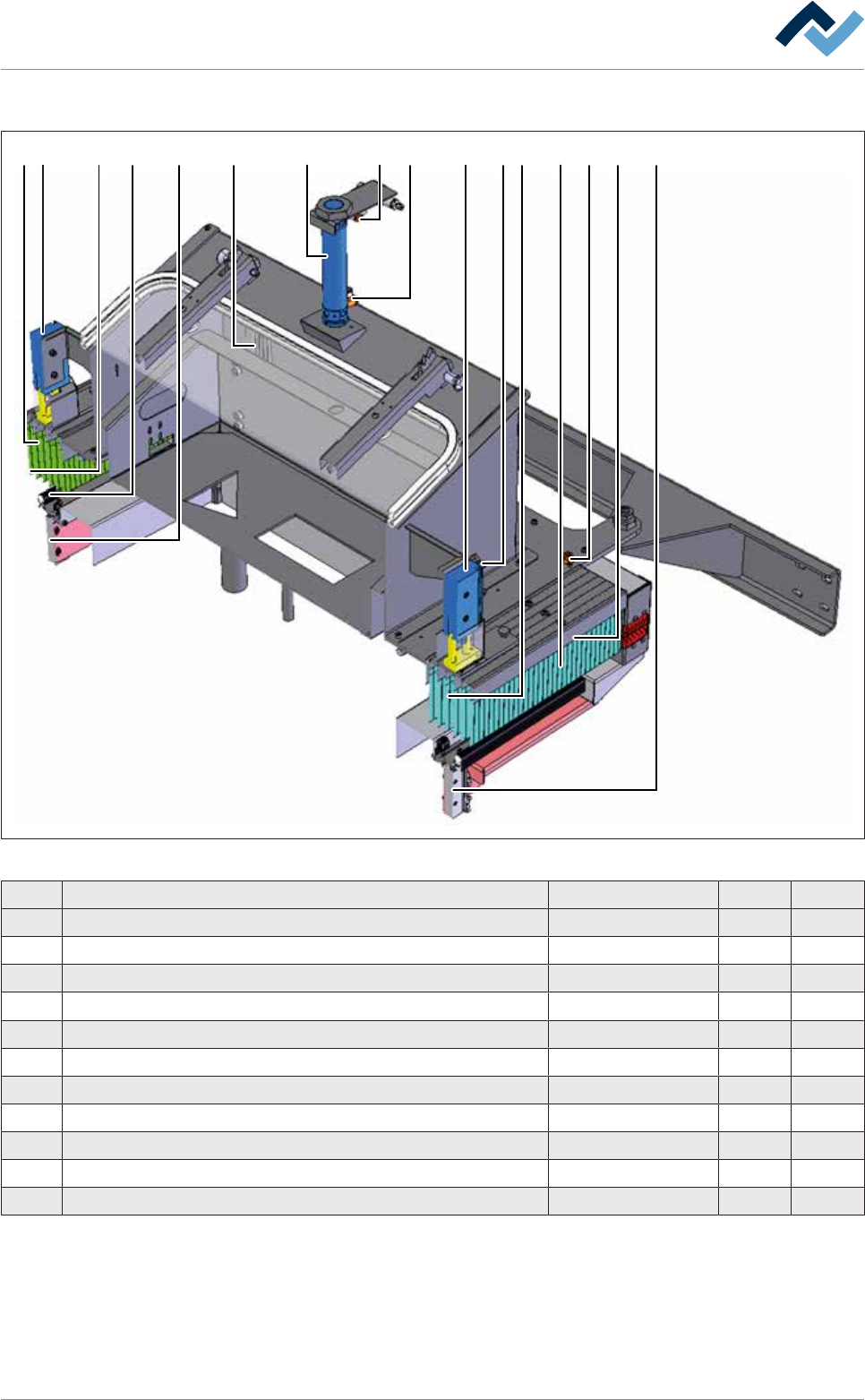

View [W]
1 8 910 112 73 26 71 34 54
Fig.383: EM146-21-00b
Pos Description Item number A B
1 Fibre glass curtain 261977 x
2 Coating for Sealing profile 261934 x
3 Bulkhead-curtain 232145 x
4 Cylinder with double piston Ø 20, Stroke = 30 mm 150°C 222564 x
5 Screw-in angle with cap nut 128566 x
6 Straight screwing 6BO180 x
7 Cylinder with double piston XSM10-30-XB6 251090 x
8 Cylinder, Ø 32, stroke = 100 mm, Temp. resistant 216028 x
9 Angular swivel screw connection 6BO099 x
10 Guide profile WS 16 250 mm 215643 x
11 One-way restrictor 196596 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 668/695
