9|Spare and wear parts
Pos Designation Item number A B
12 Bearing 6LA619032RS x
13 Spring 6FEDZ-094I x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 513/695
9|Spare and wear parts
9.5.2 Conveyor system preheater module
9.5.2.1 Fixed rail 1, (single track)
Overview

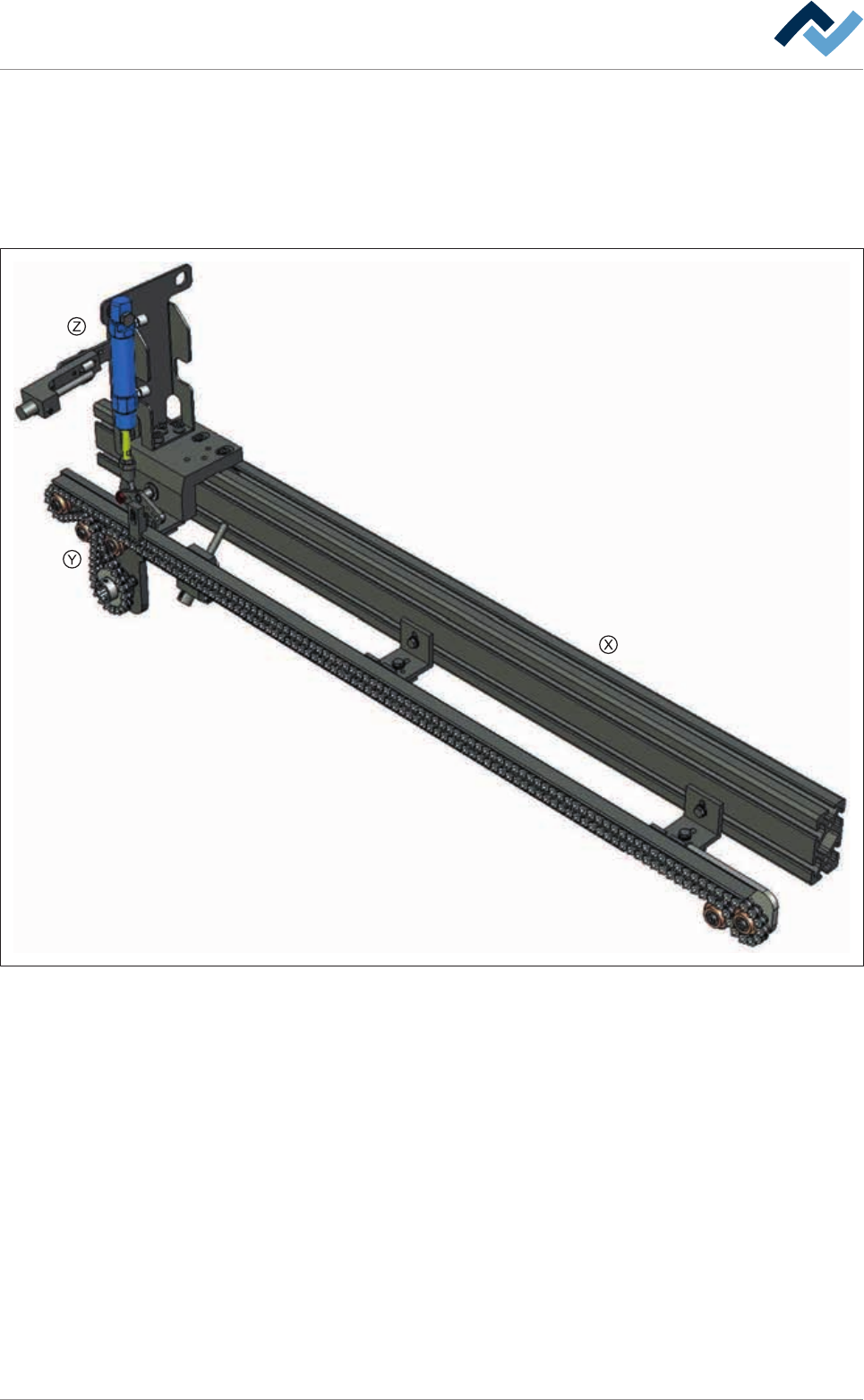

Fig.237: EM113-338-10-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 514/695
9|Spare and wear parts

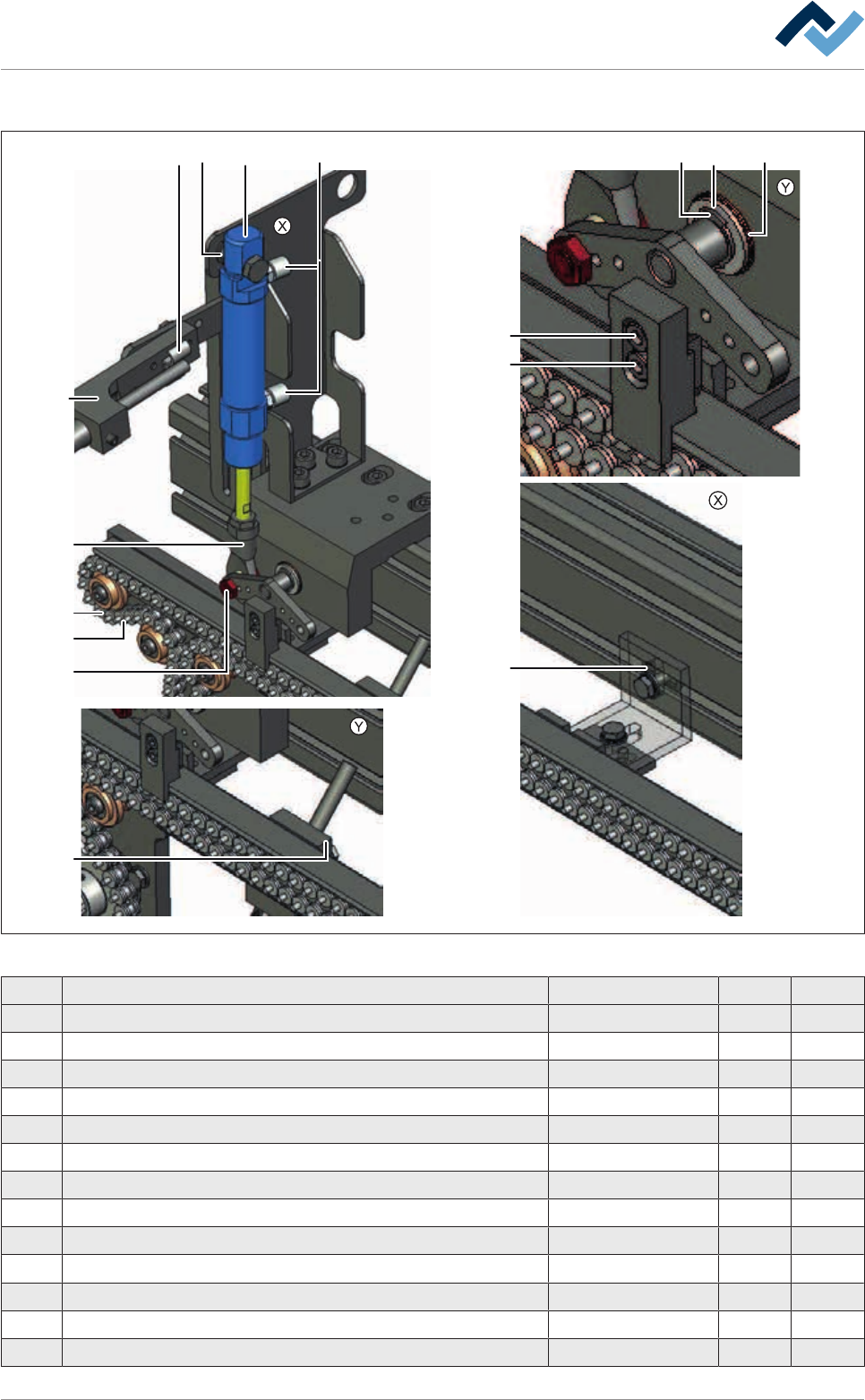

Fixed rail 1, (single track), view [X], [Y]
6214 3
13
4
10
12
5
5
11
1 87
9
15
Fig.238: EM113-338-10-00a
Pos Designation Item number A B
1 Joint clip * 170367 x
2 Straight screwing M5, stainless stell * 97965 x
3 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant * 85950 x
4 Swivel head M6 * 170366 x
5 Screw M3 * 6M03X008Z0912 x
6 Washer 8/14X0,5 DIN988 * 6SA08X0.50 x
7 Circlip A 8x0,8mm, DIN 471 * 6SER-A080471 x
8 Collar bush * 143513 x
9 Conveyor chain, 3 mm pins, bulk stock 208821 x
10 Chain joint 3 mm 208824 x
11 Groove nut, flute width 6 M4 26315 x
12 Support, Senor LK6, top 170766 x
13 Sensor holder, bottom, LK6 170750 x
