9|Spare and wear parts

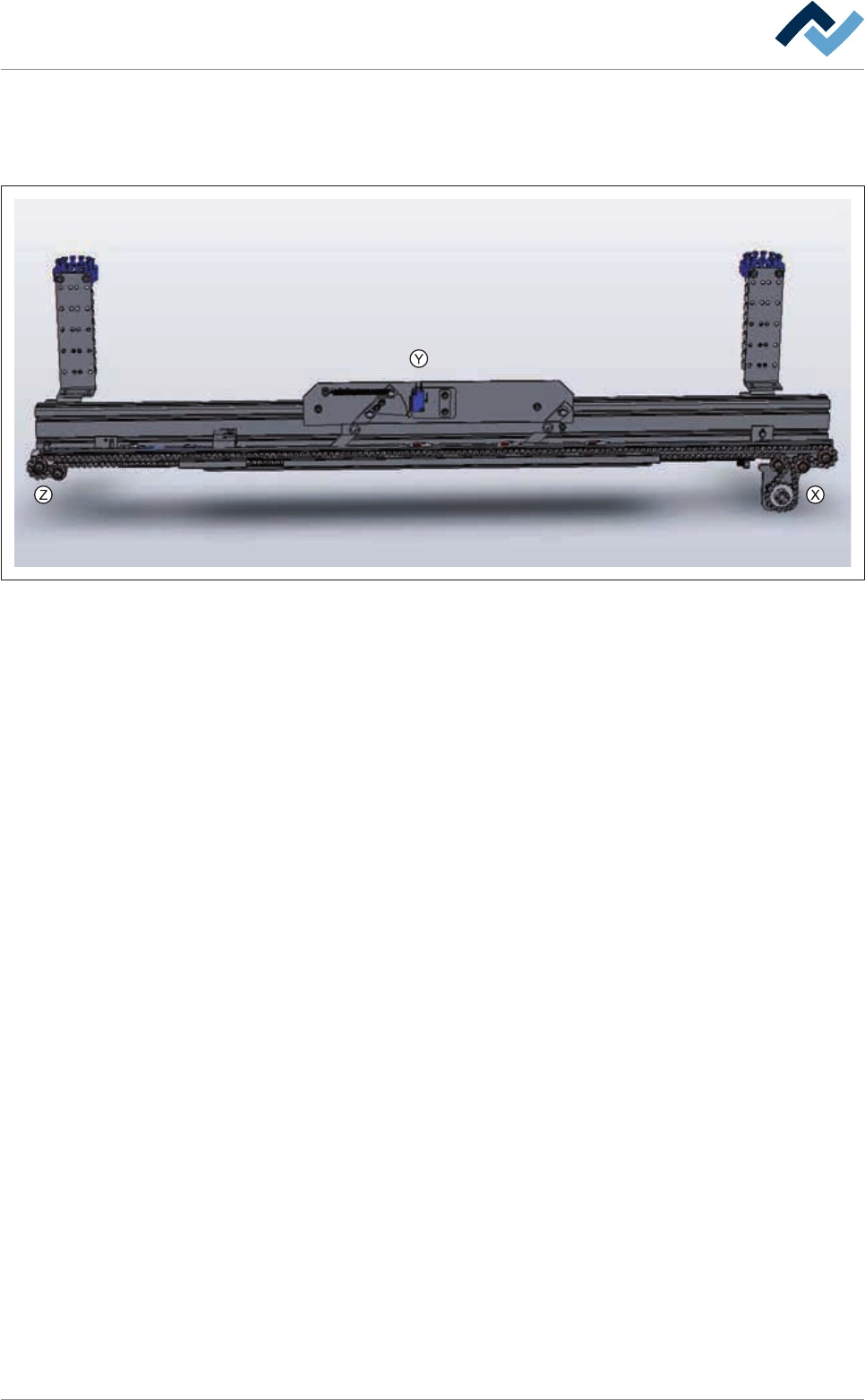

9.5.4.2 Flexible rail, DIP pump wheel
Overview
Fig.289: EM128-333-20-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 568/695
9|Spare and wear parts
Flexible rail, DIP pump wheel, view [X], [Y], [Z]
1
2
4
5
3
13
12
6
11
10
2
1
8
9
Fig.290: EM128-333-20-00a
Pos Description Item number A B
1 Sealing ring, copper 153612 x
2 Deflection roller Ø 21 mm 107607 x
3 Spring 6FEDZ-094I x
4 Disk spring, B-type, DIN 2093-C16 6FEDTEL-C14 x
5 Countersunk screw 102588 x
6 Deflection roller, Ø 20 mm 211062 x
7 Sliding piece (chain tensioner) 169520 x
8 Chain wheel Z=15 170047 x
9 Bearing 6LA619032RS x
10 Screw-in angle with cap nut 128566 x
11 Chain joint 3 mm 208824 x
12 Conveyor chain, 3 mm pins, bulk stock 208821 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 569/695
9|Spare and wear parts
9.5.4.3 Fixed rail 1, DIP induction (single track)
Overview
Fig.291: EM140-339-10-00a
