9|Spare and wear parts Pos Description Item number A B 1 Cover (soldering pot) 243308 2 Pipe, solder feeding 234258 3 Flap 154149 x 4 Bottom part base 177098 x 5 Distance bush 222728 x 6 Countersunk screw M5x8 6M05X008…
9|Spare and wear parts

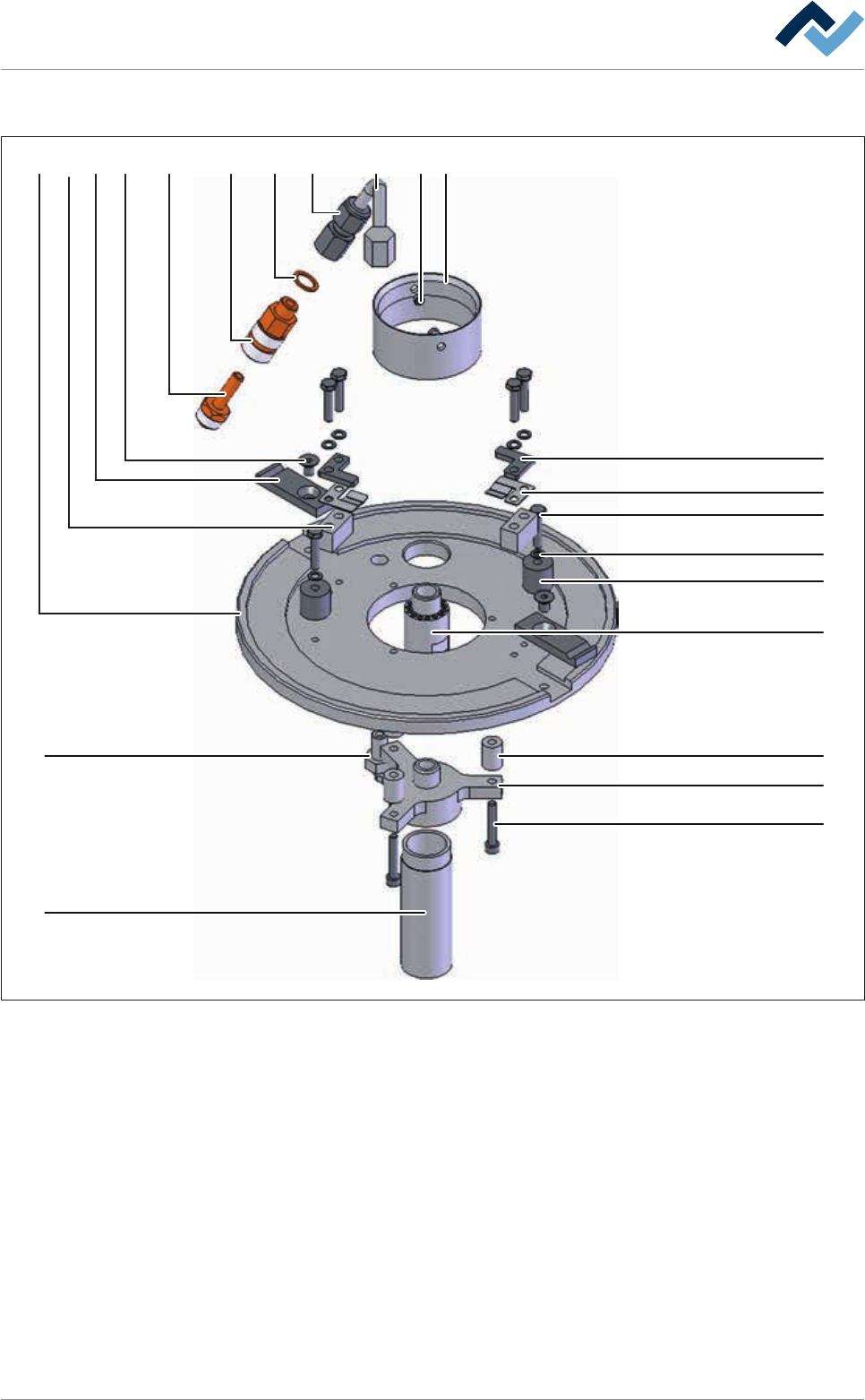

9.8.2 Solder pot lid, centric (dual track)
4
7
5
14
20
21
22
18
19
2
8
9 15161 317 6 1113 12 10
Fig.324: EM1500-110-00A
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 606/695
9|Spare and wear parts
Pos Description Item number A B
1 Cover (soldering pot) 243308
2 Pipe, solder feeding 234258
3 Flap 154149 x
4 Bottom part base 177098 x
5 Distance bush 222728 x
6 Countersunk screw M5x8 6M05X008E7991 x
7 Screw M4x25 145633 x
8 Solder level measuring point, bottom part 154185 x
9 Solder level measuring point, upper part 154175 x
10 Screw connection 6VSE-GAI06PLR x
11 Female connector with male thread 6BO426 x
12 Sealing ring, copper 153646 x
13 Coupling plug with cap nut 6BO425 x
14 Base upper part, standard 177110 x
15 Inner ring 222722 x
16 Set screw 6M05X005E0914 x
17 Base block for locking 243136 x
18 Spring plate for locking 243084 x
19 Stopper 243079 x
20 Distance bush 243083 x
21 SCHNORR M4 locking ring 112055 x
22 Screw M4x20 6M04X020E0933 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 607/695
9|Spare and wear parts

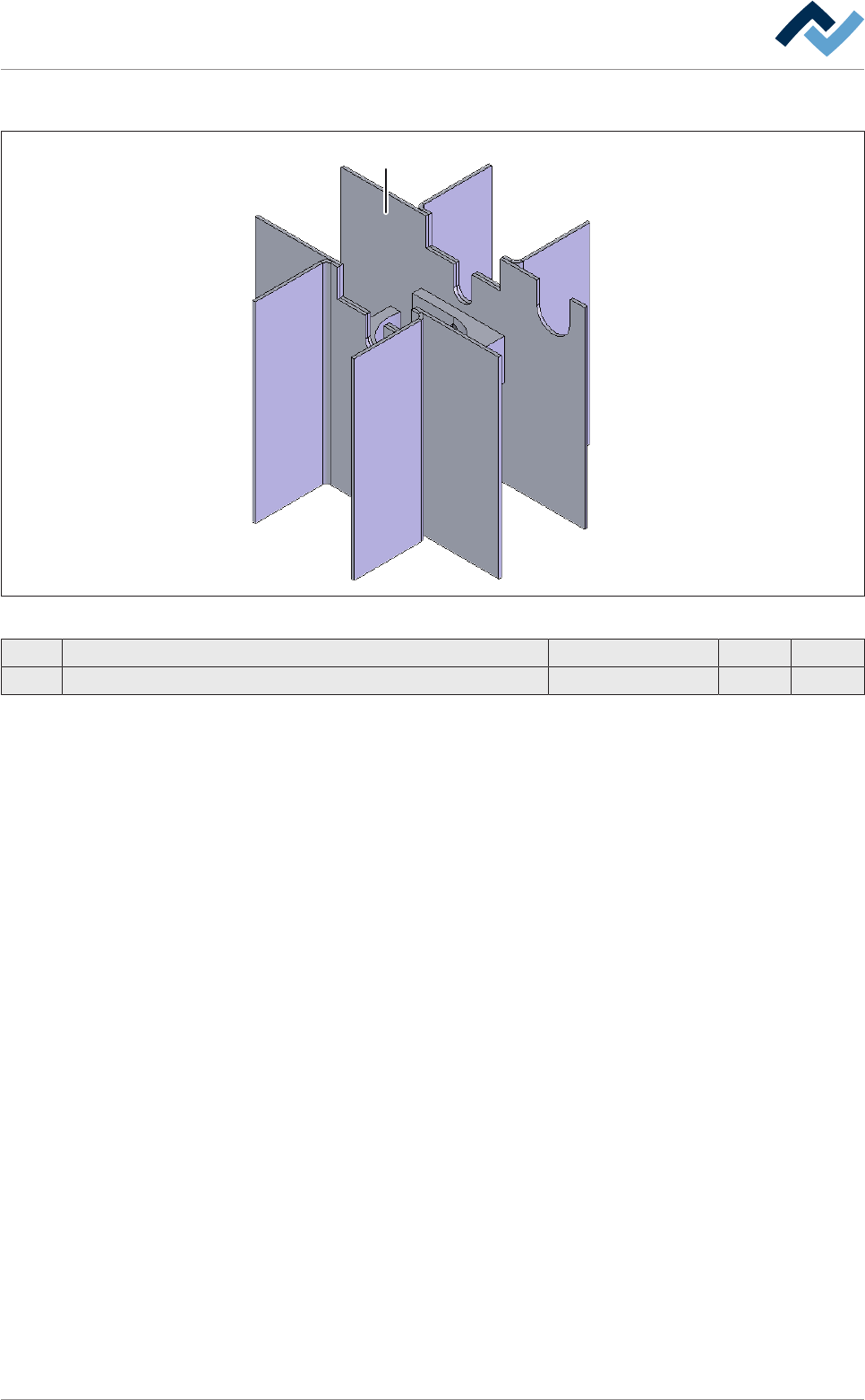

Anti surge baffle plates
1
Fig.325: Anti surge baffle plates
Pos Description Item number A B
1 Antisurge baffle 265947 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 608/695
