9|Spare and wear parts CAUTION Malfunctioning possible! If the motor/gearbox combination 175816is replaced by the 191607 one, you must load the appropriate parameters in the driver controller. With respect to this, ple…
9|Spare and wear parts

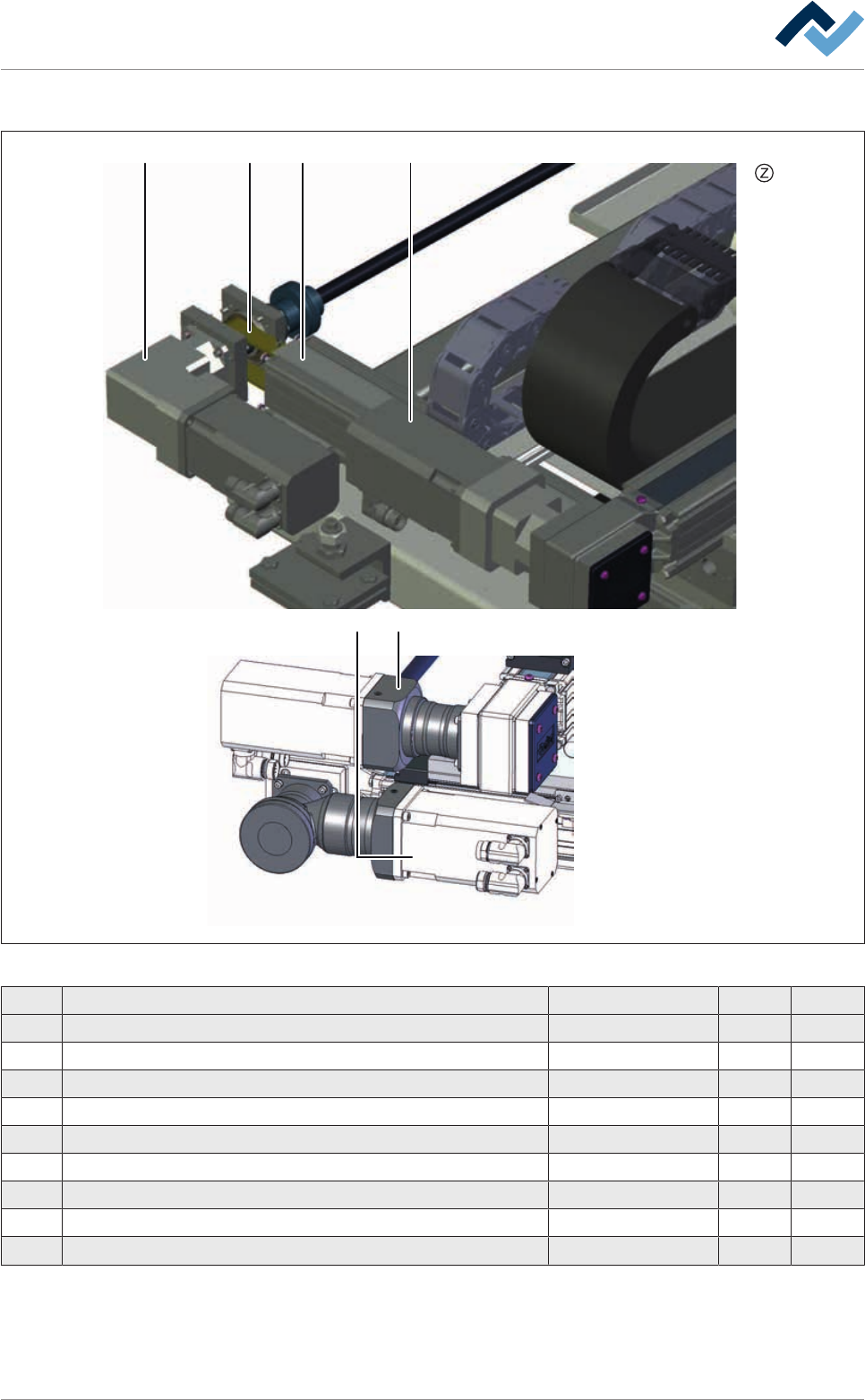

Double pot positioning system, view [Z]
2 43 1
3 4
Fig.206: EM113-24-00a
Pos Designation Item number A B
1 Tooth belt 25AT10HPF; 2400 mm 175810 x
2 Steel band 38 mm x 1250 mm 175812 x
3 Motor/gear combination --> 2010 175816 x
3 Motor/gear combination 2010 --> 191607 x
4 Motor/gear combination --> 2010 175817 x
4 Motor/gear combination 2010 --> 191608 X
5 Energy chain 152270 x
6 Energy chain 174537 x
7 Coupling 175820 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 479/695
9|Spare and wear parts
CAUTION
Malfunctioning possible!
If the motor/gearbox combination 175816is replaced by the 191607 one, you must
load the appropriate parameters in the driver controller. With respect to this, please
read the [100049_SSD_Drive_einrichten.pdf] in the data carrier [Product data Versa-
flow 3] document. You can find the WPLN type parameters in the [Software\Parker
\Maschinendaten\638_Versaflow3xx\Parameter] directory. If the motor/gearbox
combination 175817 is replaced by the 191608 one, no adjustment of the parameters
is necessary.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 480/695
9|Spare and wear parts
Double pot positioning system, view [X], [Y]
24576 31
Fig.207: EM113-24-00b
Pos Designation Item number A B
1 Tooth belt 25AT10HPF; 2290 mm 175811 x
2 Steel band 38 mm x 1167 mm 175813 x
3 Steel band 38 mm x 1100 mm 175814 x
4 Wearing part package steel band deflection 175815 x
5 Assembly set limit switch 175818 x
6 Cam set 175819 x
7 Adjusting screw 135733 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 481/695
