9|Spare and wear parts 9.5.4.5 Fixed rail, DIP XL induction, (single track) Overview Fig.301: EM146-339-10-00a Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 581/695

100%1 / 695
9|Spare and wear parts
Flexible rail 1, DIP induction (single track), view [W]
3 4 512
Fig.300: EM140-339-20-00Ae
Pos Description Item number A B
1 Pressure spring VD-177 143511 x
2 Sliding piece, redirection 143640 x
3 Chain pinion 05-Z9 143638 x
4 Chain guide, flexible, special design 269849 x
5 Chain guide, fixed, adjustable 143673 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 580/695
9|Spare and wear parts
9.5.4.5 Fixed rail, DIP XL induction, (single track)
Overview
Fig.301: EM146-339-10-00a
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 581/695
9|Spare and wear parts

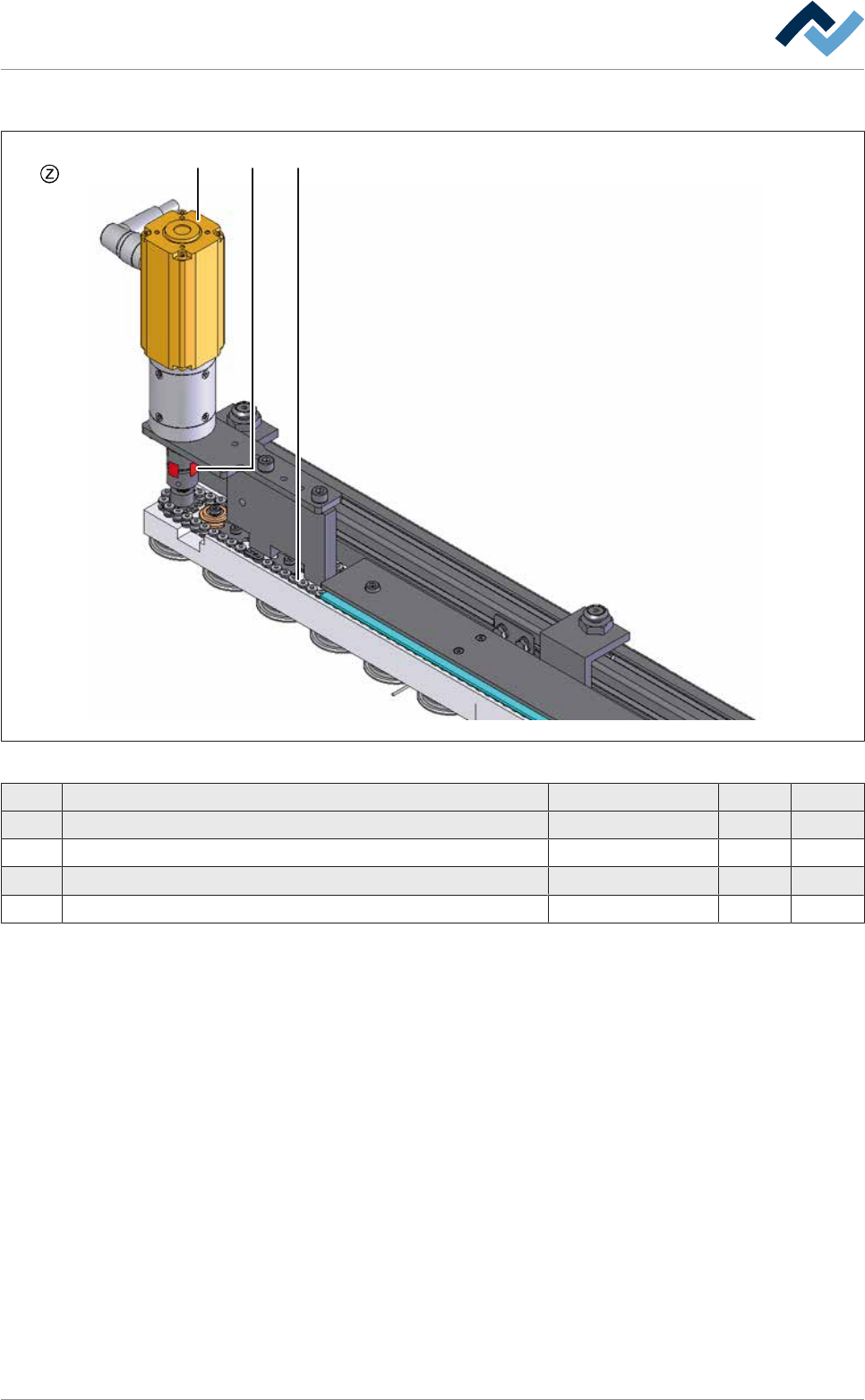

Fixed rail, DIP XL induction, view [Z]
1 3, 42
Fig.302: EM146-339-10-00b
Pos Description Item number A B
1 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
2 Coupling Ø 20x30 143509 x
3 Chain 8,00 x 3,16 05B-1, bulk stock 144818 x
4 Chain joint 6KES05B-1G52NSB x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 582/695
