9|Spare and wear parts 9.9.3.4 DIP soldering module (multiwave) XL wave height measurement Overview Fig.386: EM131-61-00b Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 671/695

100%1 / 695
9|Spare and wear parts
View [Y]
A A1 A 23

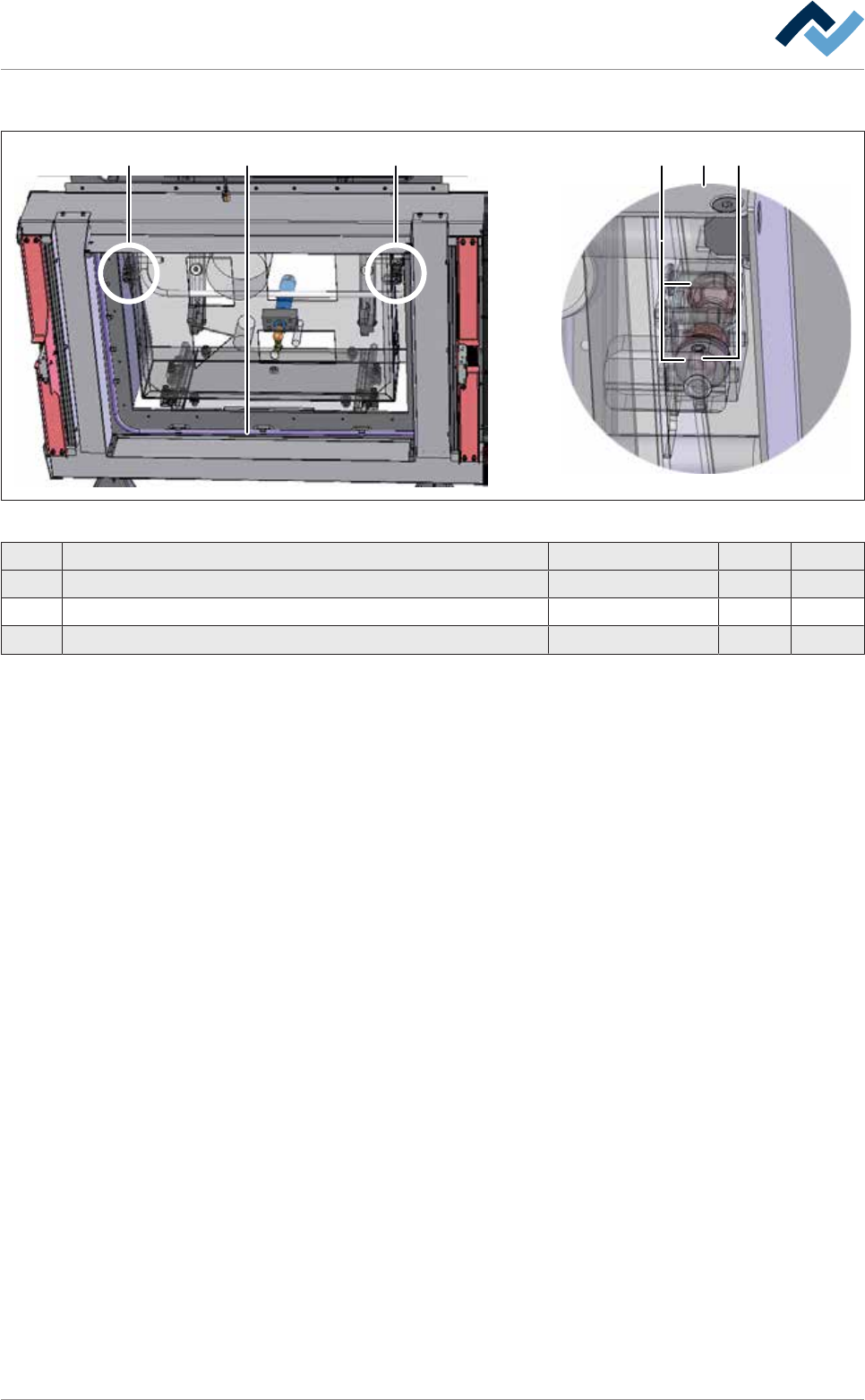

Fig.385: EM146-21-00d
Pos Description Item number A B
1 Gassing hose 261940 x
2 Clamping sleeve 4 X 20 V2A DIN 1481 6SPH4X20E1481 x
3 Disk spring 6FETL-C16 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 670/695
9|Spare and wear parts
9.9.3.4 DIP soldering module (multiwave) XL wave height measurement
Overview
Fig.386: EM131-61-00b
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 671/695
9|Spare and wear parts
View [W]
8 1011 4 519 3 26 7
Fig.387: EM146-61-10-20-00C
Pos Description Item number A B
1 Gauge-glass 209190 x
2 Probe 145960 x
3 Isolation 255049 x
4 Reference nozzle 255088 x
5 Graphite sealing 209661 x
6 Sealing ring, copper 153612 x
7 Straight screwing M5, stainless steel 6BO116E x
8 Set screw M3 6M03X003E0913 x
9 Sealing ring 296644 x
10 Angular swivel screw connection 6BO102 x
11 Sealing ring, copper G1/4 153647 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 672/695
