9|Spare and wear parts Pos Designation Item number A B 1 Cover (soldering pot) 179184 x 2 Half shell, upper part 178285 x 3 Half shell, bottom part 213515 x 4 Tube (pot) 213516 x 5 Solder level measuring point, upper p…
9|Spare and wear parts

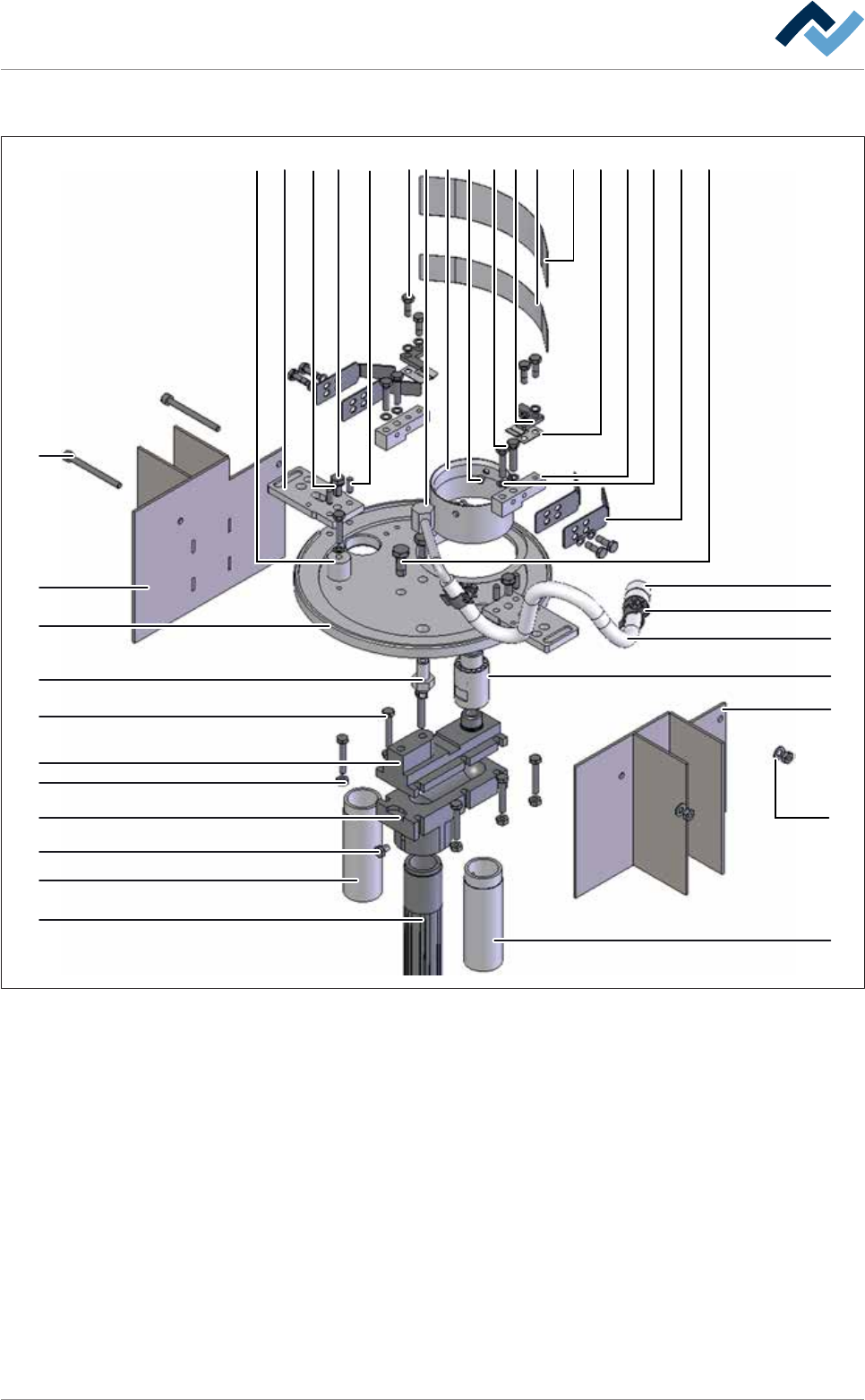

9.8.3 Solder pot cover, eccentric, with roller conveyor
14
17
15
34
21
19
23
1
20
22
2
8
7
6
3
18
19
4
5 9
12 1310 30 33 3531 16 262425 282932
1127
Fig.326: EM1500-120-00A
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 609/695
9|Spare and wear parts
Pos Designation Item number A B
1 Cover (soldering pot) 179184 x
2 Half shell, upper part 178285 x
3 Half shell, bottom part 213515 x
4 Tube (pot) 213516 x
5 Solder level measuring point, upper part 154175 x
6 Solder level measuring point, bottom part 154185 x
7 Screw M4x25 6M04X025L0933 x
8 Hexagonal nut 91248 x
9 Screw M6x16 6M06X016E0933 x
10 Flap for clamp 188212 x
11 SCHNORR M5 locking ring 111799 x
12 Screw M5x10 6M05X010E0933 x
13 Cylindrical pin, Ø 4 x 10 mm 143527 x
14 Hose clamp SM9 - NW12 248124 x
15 Tube, slicone, Ø 12 mm, bulk stock 214493 x
16 SCHNORR M4 locking ring 112055 x
17 Coupling, 6 mm 182167 x
18 Screw M4x6 150471 x
19 Pipe, solder feeding 234258 x
20 Antisurge baffle 266035 x
21 Bulkhead for antisurge baffle 266037 x
22 Screw M4x45 243547 x
23 Washer U04 105128 x
24 Base block for locking 243077 x
25 Stopper 243079 x
26 Stopper plate, spring 243081 x
27 Distance bush 243083 x
28 Spring plate for locking 243084 x
29 Screw M4x20 6M04X020E0933 x
30 Screw M4x12 6M04X012E0933 x
31 Inner ring 222724 x
32 Set screw 6M05X005E0914 x
33 Spring guard plate 243087 x
34 Base upper part, standard 177110 x
35 Spring guard plate, component clearance 20 mm 243092 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 610/695
9|Spare and wear parts
9.8.4 Pump pipe (dual track)
1 2 3 54 4
Fig.327: EM113-60-55
Pos Designation Item number A B
1 Pump tube 154130 x
2 Spring seat 154113 x
3 Pressure spring 105387 x
4 Screw M4x20 138253 x
5 Locking ring 18626 x
Pump tube, complete 154131 x
