6|Function description

6.10.3 Adding a data set and assigning a soldering program

The [Assignment: code - soldering program] frame contains the data sets of a code

table. Each data set defines the relation of a barcode to a soldering programme. In

the lower part of the frame, you can find the input line with the input fields [Code],

[Library] and [Soldering program].

Edit dialog

user: none maintenance mode

Code table

Code table Assignment: code - soldering program

Code Library Soldering program

Code

Library Soldering program

Activated code table:

Creating a new data set

ü Creating a new data set:

a) select a code table, to which a data set can be added, in the [Code table]

frame.

b) Click the [Code] input field in the input line in order to enter the code. You can

also use wildcards.

ð Example: If your PCB code is [5678] and additionally contains a consecutive

serial number [1234], you can also enter the wildcard [?] for each digit of the

serial number: [5678????]. The assignment then applies to all codes with the

first four digits [5678].

Edit dialog

user: none maintenance mode

Code table

Code table Assignment: code - soldering program

Code Library Soldering program

Code

Library Soldering program

Activated code table:

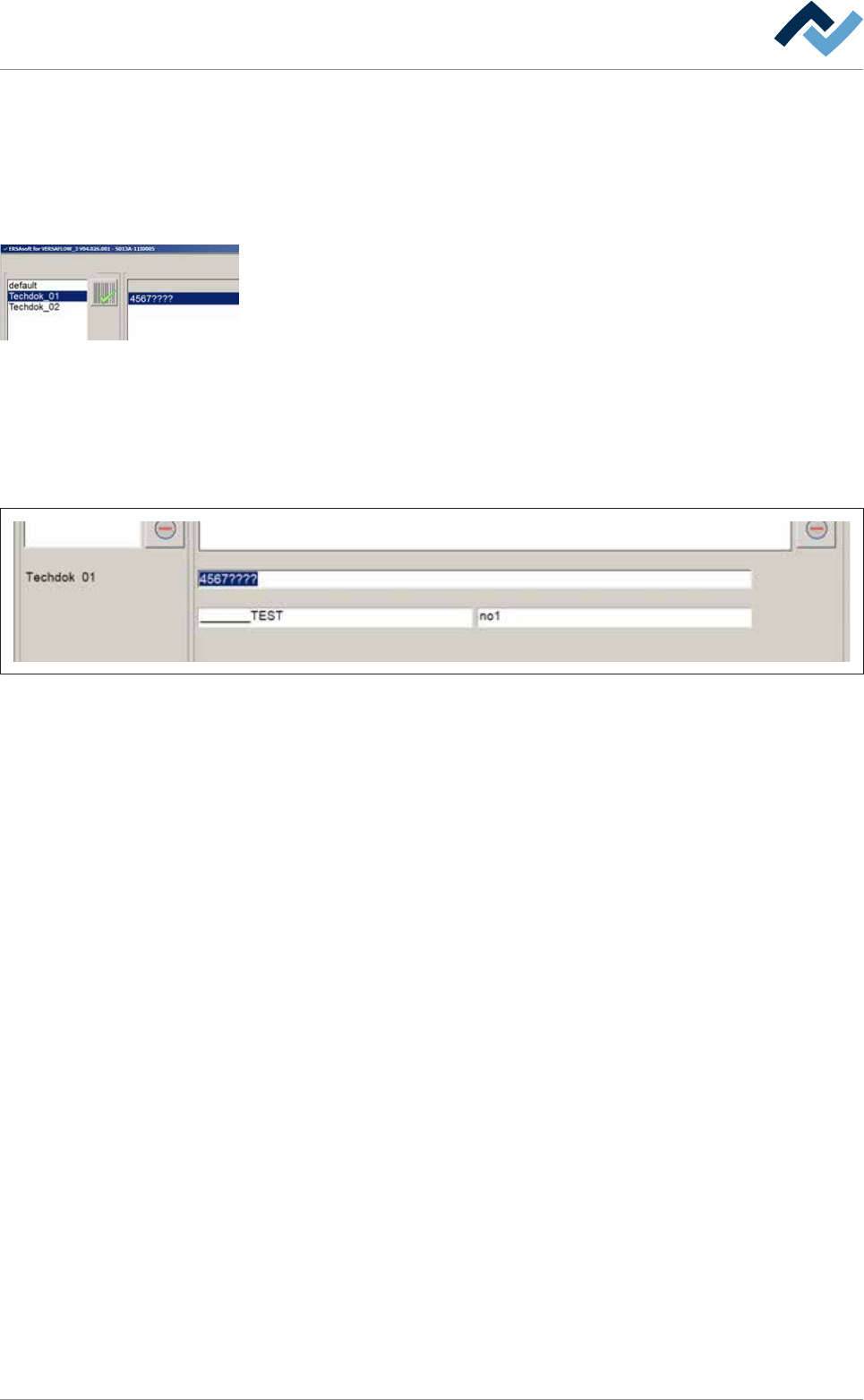

Fig.50: The input line. Wildcards have been entered for the consecutive serial number [????].

Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 209/695

6|Function description

Assigning the code to a soldering programme

ü Assigning the code to a soldering programme:

a) click the [Library] input field in the input line to assign the code to a soldering

programme.

ð The following dialogue is displayed:

Libraries Programs

Libraries selection Program selection

Board simulation

Select soldering program

Code mode

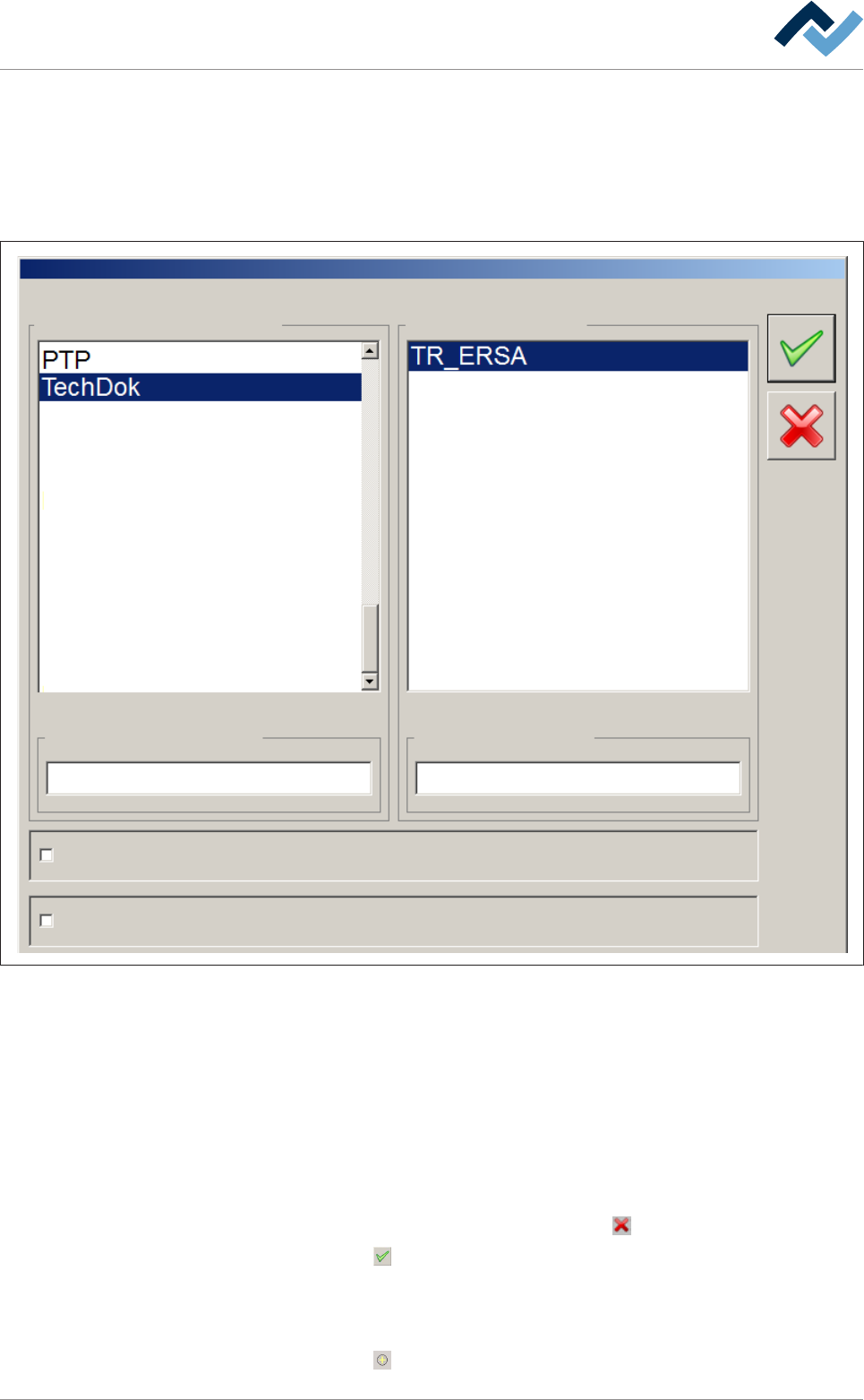

Fig.51: select the soldering programs

Selecting library and programme

ü Selecting a library and a programme contained in it:

a) activate the [Code mode] checkbox.

b) Select the library in which the soldering programme is located in the [Libraries]

frame.

c) Select the soldering programme which is to be assigned to the code in the [Pro-

grams] frame.

d) Should the process be cancelled, click on the

button.

e) Click on the

button.

ð The soldering programme is assigned to the code, and the names of the

library and soldering programme are automatically accepted in the [Lib-

rary] and [Soldering program] fields.

f) Click on the

button in the [Programs] frame

Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 210/695

6|Function description

ð The new data set appears in the [Assignment: code - soldering program] win-

dow.
